ASK-12703-PCA1

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Three-Lumen CVC Kit

PI CVC KIT: 3L 7 FR X 16 CM

SKU / Article #: ASK-12703-PCA1

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen CVC Kit
SKU / Article #: ASK-12703-PCA1
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 16 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: Eclipse™1 23 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Syringe: 10 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Maximal Barrier Drape™ with 4" fenestration
1 Towel
1 Needle Holder
1 Safety Scalpel: #11
1 Flow Rate Information Card with Injection Log
1 Checklist/CLIP Sheet
1 Sterile Procedure Sign
2 Gauze Pad: 3" x 3" (7.6 cm x 7.6 cm)
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 PICC/CVC Securement Device (5.1 cm x 5.4 cm) and CHG I.V. Securement Dressing (8.5 cm x 11.5 cm)
1 Suture: 3-0 Silk with Curved Needle
3 Valve: MaxZero™2 Needleless Connector
1 HemoHopper® Fluid Receptacle
1 A trademark of Becton, Dickinson and Company.
2 A trademark of CareFusion or one of its subsidiaries.

Documents

  • E 05100 100a
  • K 45703 131a

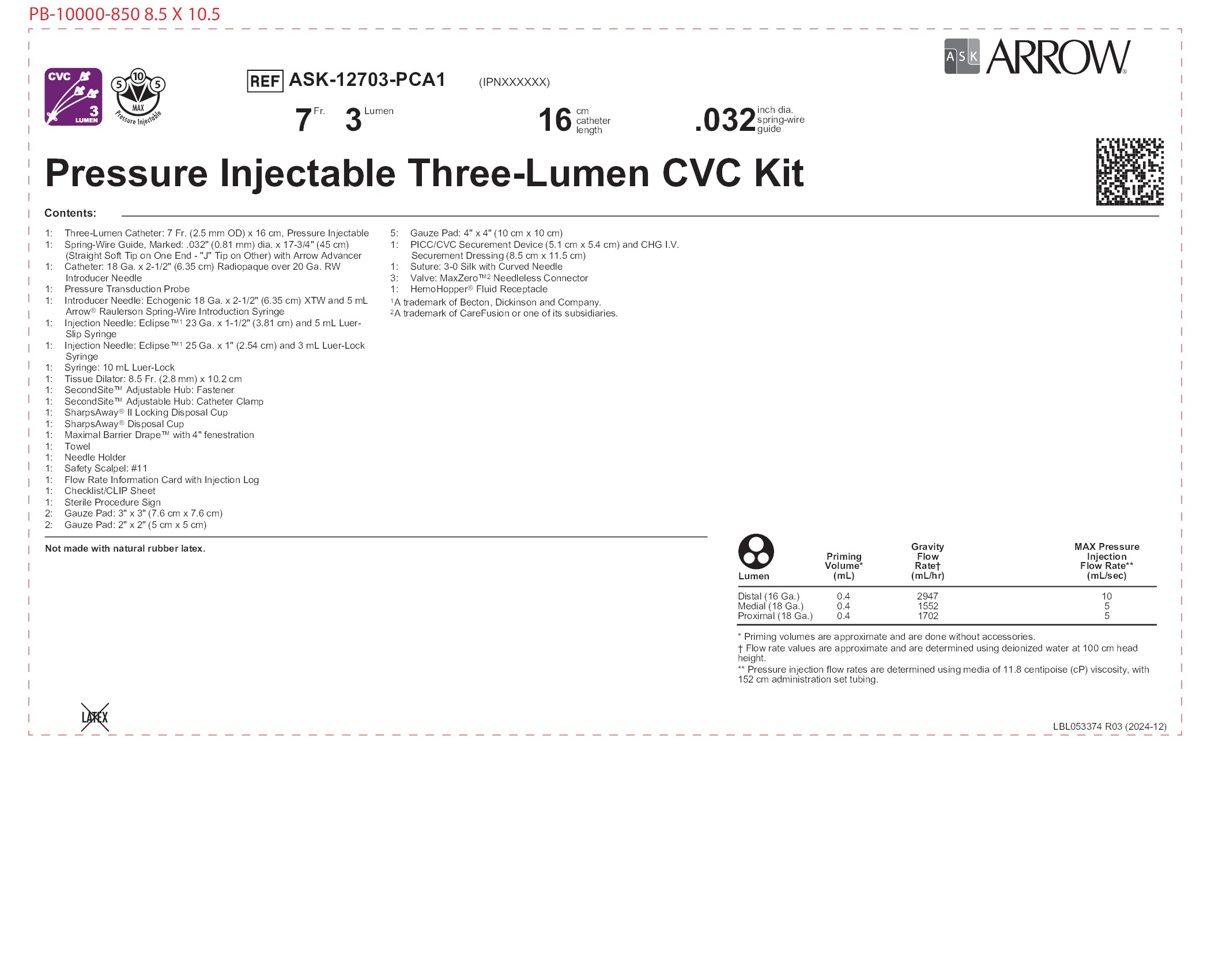

  • Lbl053374
  • M 05500 100a
  • S 15703 122a
  • S 45703 150a
Scroll to View More
  • E 05100 100a
  • K 45703 131a
  • M 05500 100a
  • S 15703 122a
  • S 45703 150a
Scroll to View More
  • Lbl053374
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
