PR-05563-HPX

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Three-Lumen PICC with 130 cm Wire

PICC KIT: 6 FR X 21-21/32" (55 CM)

SKU / Article #: PR-05563-HPX

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen PICC with 130 cm Wire
SKU / Article #: PR-05563-HPX
Quantity Component Description

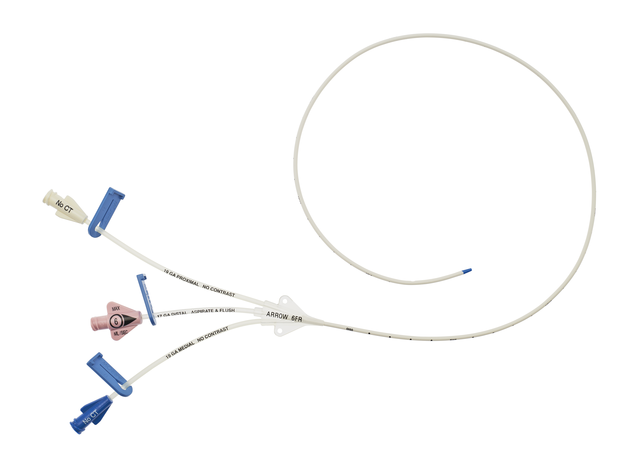

1 Three Lumen Catheter: 6 Fr. (2.14 mm OD) x 55 cm, Pressure Injectable, Blue FlexTip®
1 Peel-Away Sheath: 6.5 Fr. x 2-3/4" (7 cm) Radiopaque over 6.5 Fr. Dilator
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on Both Ends)
1 Spring-Wire Guide, Marked: .018" (0.46 mm) dia. x 51-3/16" (130 cm)(Straight Soft Tip on One End - Straight Stiff Tip on Other)
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Injection Needle: SafetyGlide™1 25 Ga. x 5/8" (1.60 cm)
1 Injection Needle: SafetyGlide™1 21 Ga. x 1-1/2" (3.81 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
2 Syringe: 10 mL Luer-Lock
1 Syringe: 3 mL Luer-Lock
1 10 mL Luer-Lock Pre-Filled Saline Syringe
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange™ Tint
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Safety Scalpel: #11
1 Patient ID Card
1 Chart Sticker
1 Patient Information Booklet
1 Medication Label: 1% Lidocaine
1 Medication Label: 0.9% Saline
1 Checklist/CLIP Sheet
2 Paper Tape Measure
1 Tourniquet
5 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Dressing: BIOPATCH®3
1 Dressing: STATLOCK®4 PICC Plus Catheter Stabilization Device
1 Surgical Tape: Transpore™5 1" x 54" Roll
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of CareFusion or one of its subsidiaries.
3 A registered trademark of Johnson & Johnson Corporation.
4 A registered trademark of C. R. Bard, Inc.
5 A trademark of 3M Company.

Documents

  • M 05500 105a
  • A 06041 105b
  • K 01552 117b
  • K 07800 121

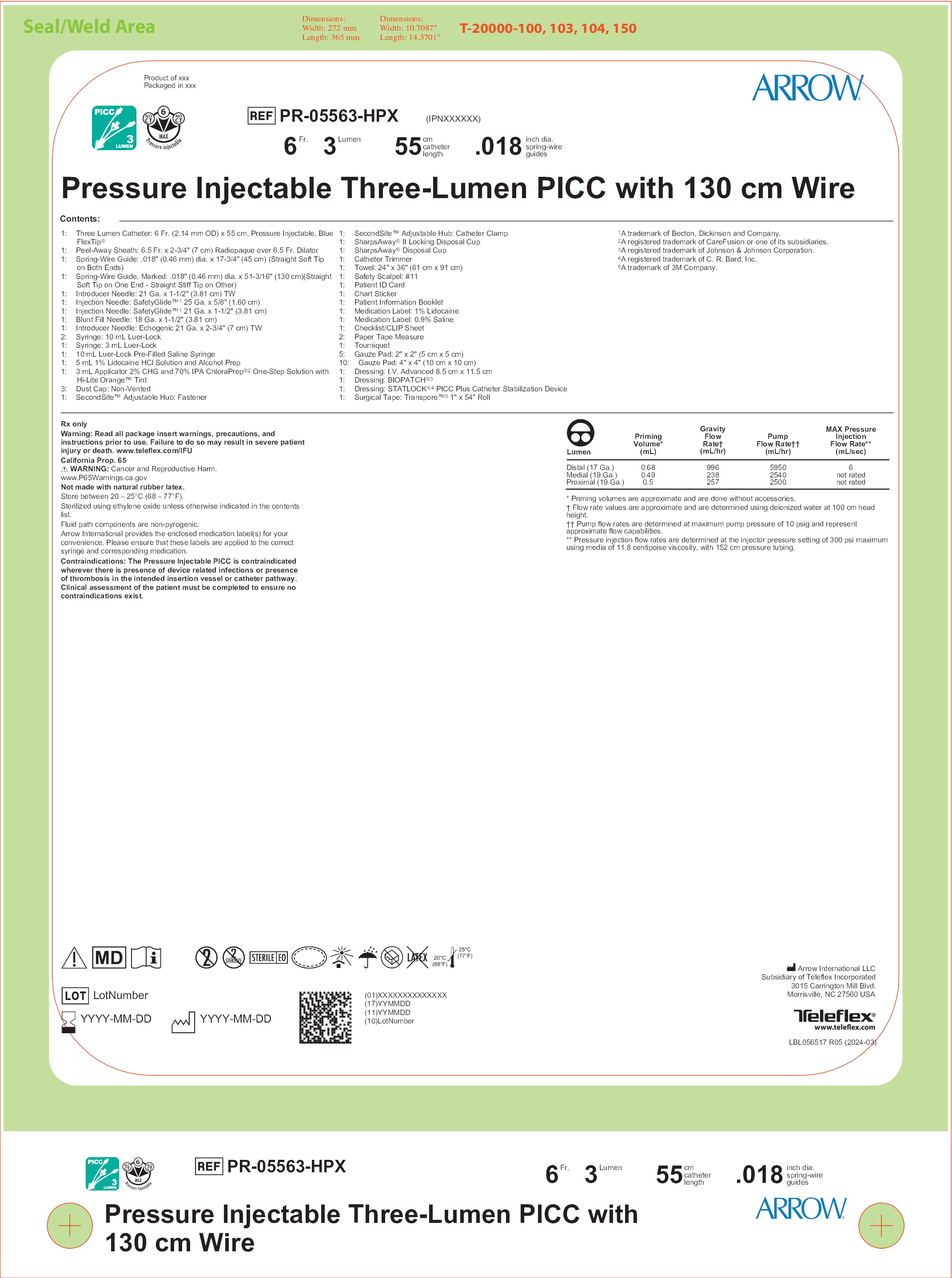

  • Lbl056517
  • S 05041 400
  • O 42703 101a
Scroll to View More
  • M 05500 105a
  • A 06041 105b
  • K 01552 117b
  • K 07800 121
  • S 05041 400
  • O 42703 101a
Scroll to View More
  • Lbl056517
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
