NA-15703-PCDC

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Three-Lumen CVC

PI CVC KIT: 3-L 7 FR X 8" (20 CM)

SKU / Article #: NA-15703-PCDC

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen CVC
SKU / Article #: NA-15703-PCDC
Quantity Component Description
1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: SafetyGlide™1 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: SafetyGlide™1 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange™ Tint
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11

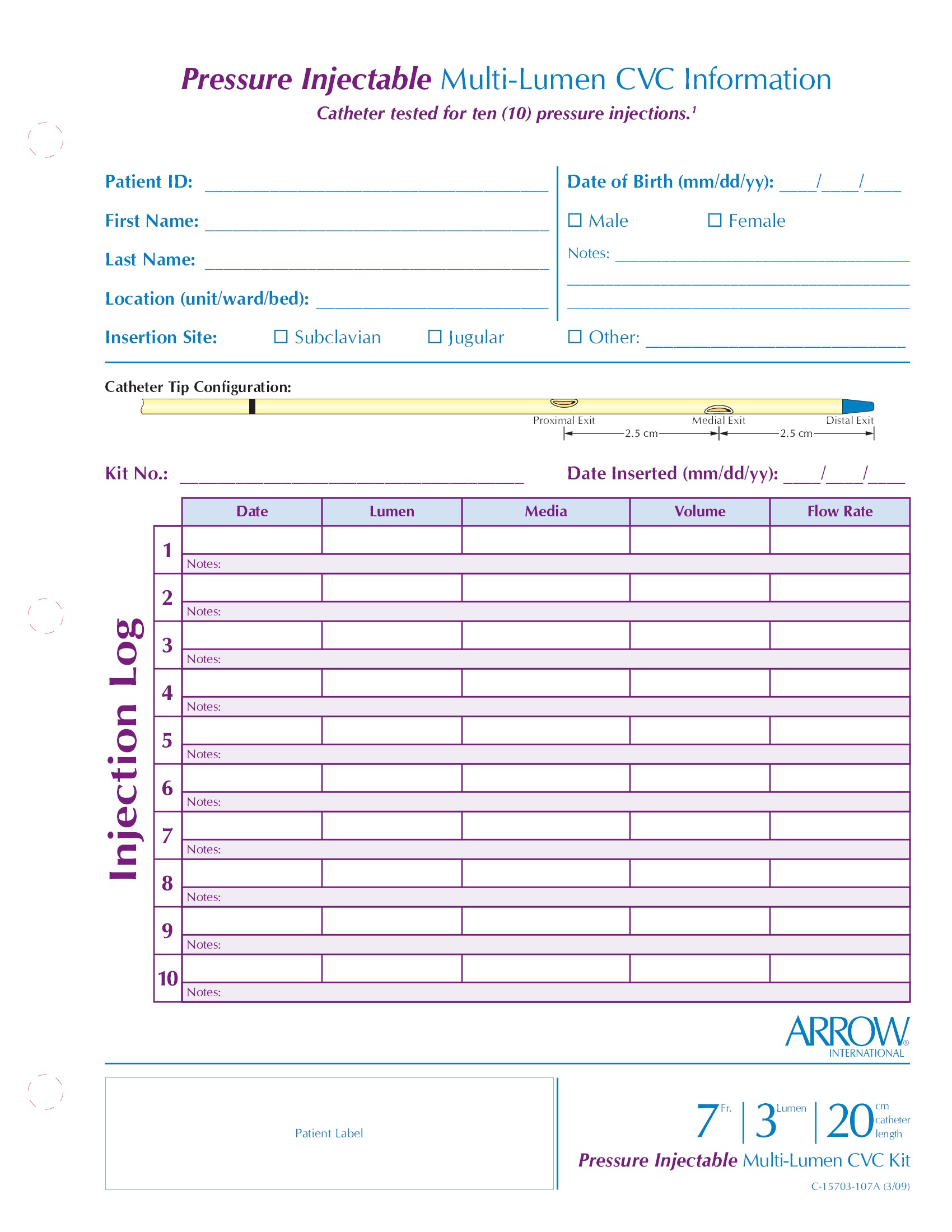

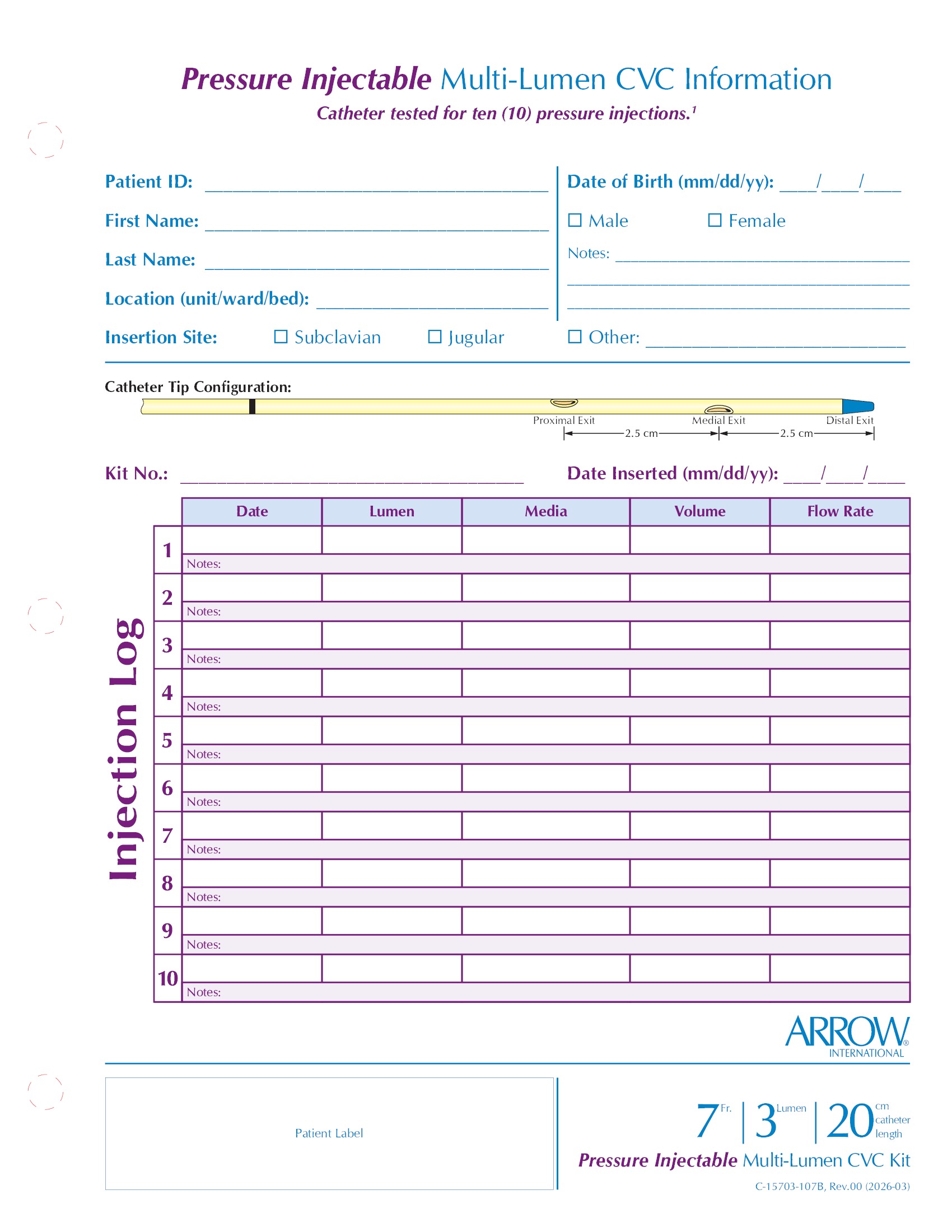

1 Flow Rate Information Card with Injection Log
1 Medication Label: 1% Lidocaine
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 Tubing±: 20" (50 cm) Extension
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • C 15703 107a
  • K 07800 121

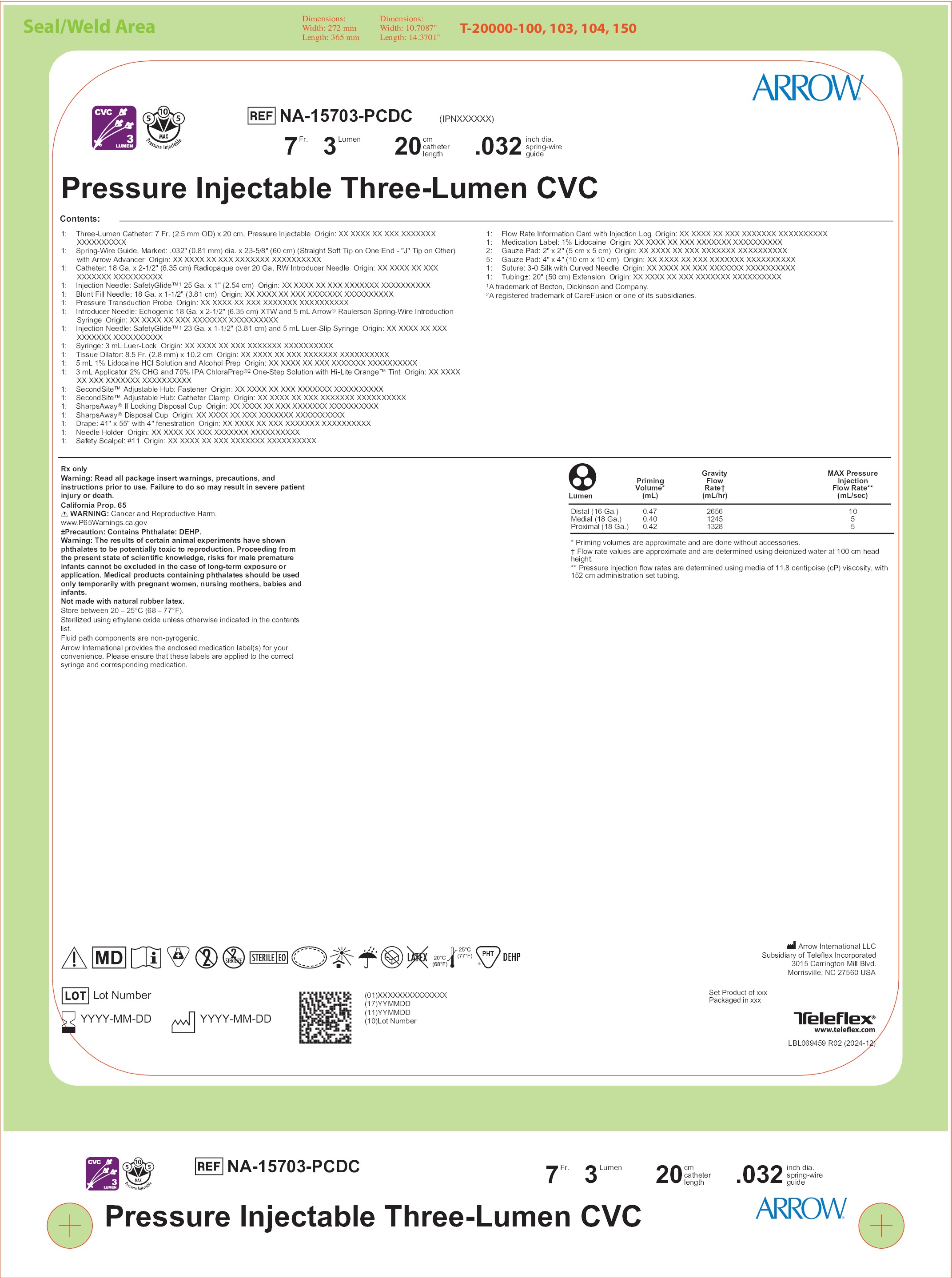

  • Lbl069459
  • S 15703 122a
  • K 01552 112a
Scroll to View More
  • C 15703 107a
  • K 07800 121
  • S 15703 122a
  • K 01552 112a
Scroll to View More
  • Lbl069459
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.

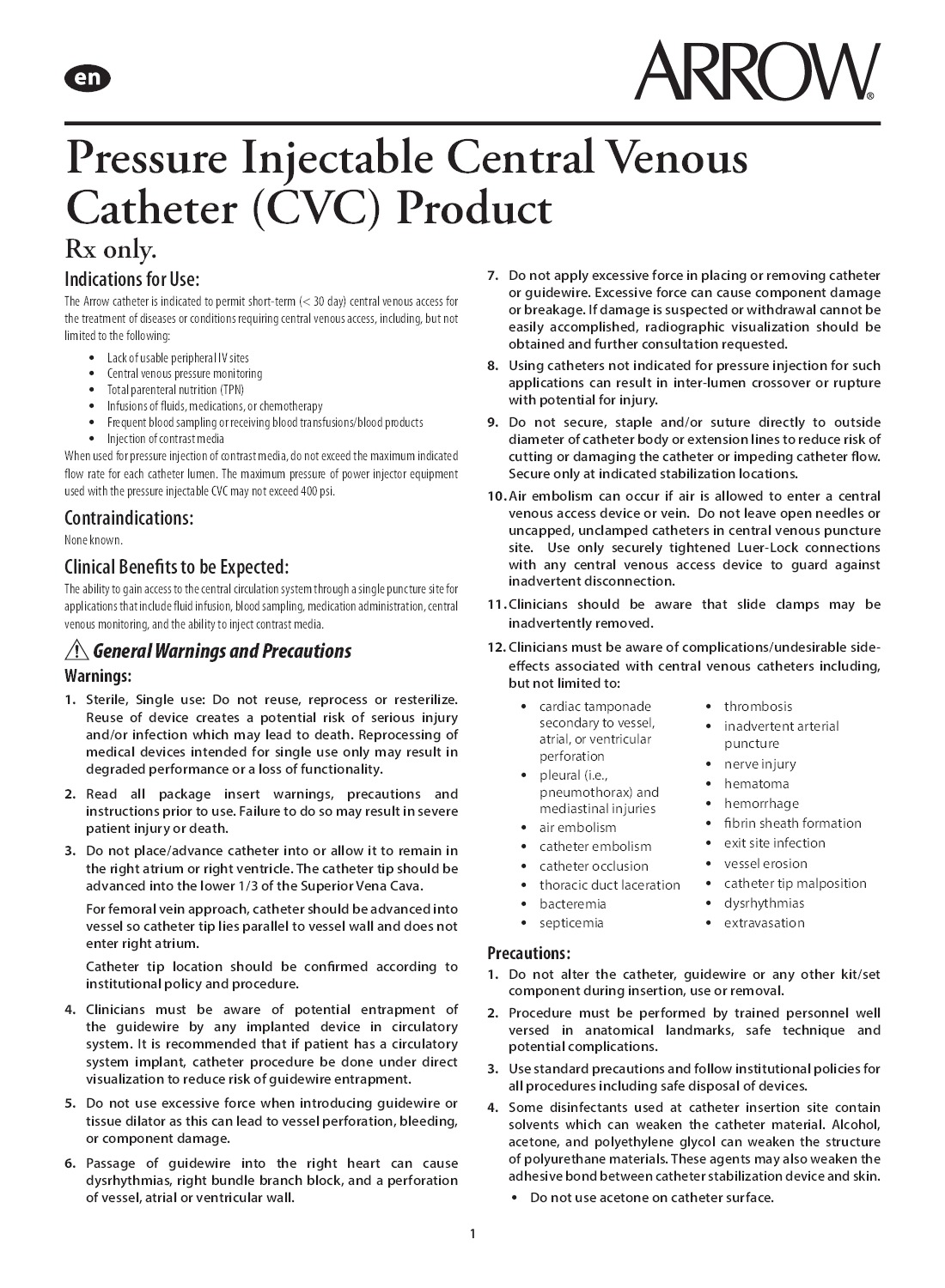

Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
