Pressure Injectable Arrowg+ard Blue Advance® Three-Lumen JACC with 80 cm Hydrophilic-Coated Nitinol Guidewire

JACC IR: 3-L 6FR NON-TIPPED 80 HNIT WIRE

SKU / Article #: JRT-43563-HPHNM

Highlights

  • Antimicrobial: Arrowg+ard Blue Advance*
  • Antithrombogenic: Arrowg+ard Blue Advance*

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Advance® Three-Lumen JACC with 80 cm Hydrophilic-Coated Nitinol Guidewire
SKU / Article #: JRT-43563-HPHNM
Quantity Component Description

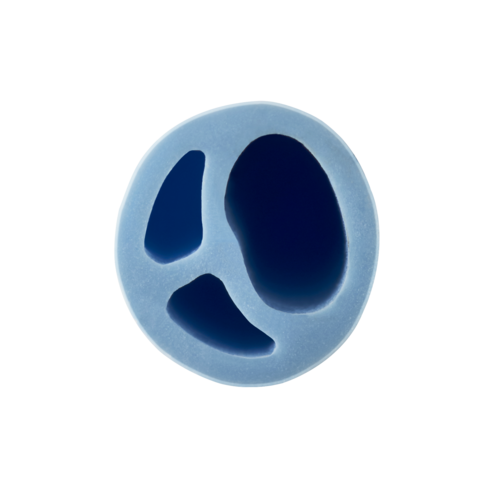

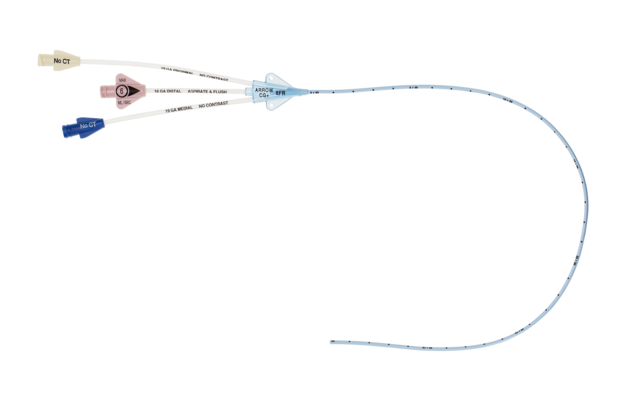

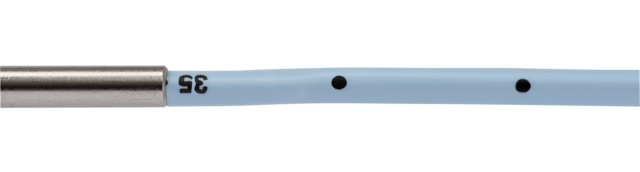

1 Three-Lumen TaperFree® Catheter with Arrowg+ard Blue Advance® Antimicrobial/Antithrombogenic Protection1: 6 Fr. (2.09 mm OD) x 35 cm, Pressure Injectable
1 GlideThru™ Peel-Away Sheath: 6 Fr. x 4" (10 cm) Radiopaque over 6 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other)
1 Guidewire, Marked: .018" (0.46 mm) dia. x 80 cm Hydrophilic-Coated Nitinol with Soft Tip Tungsten Coil (CE 0120)
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Catheter Trimmer
1 Safety Scalpel: #11
1 TightTrack™ Tunneler: 9" Stainless Steel
1 Patient ID Card
1 Chart Sticker

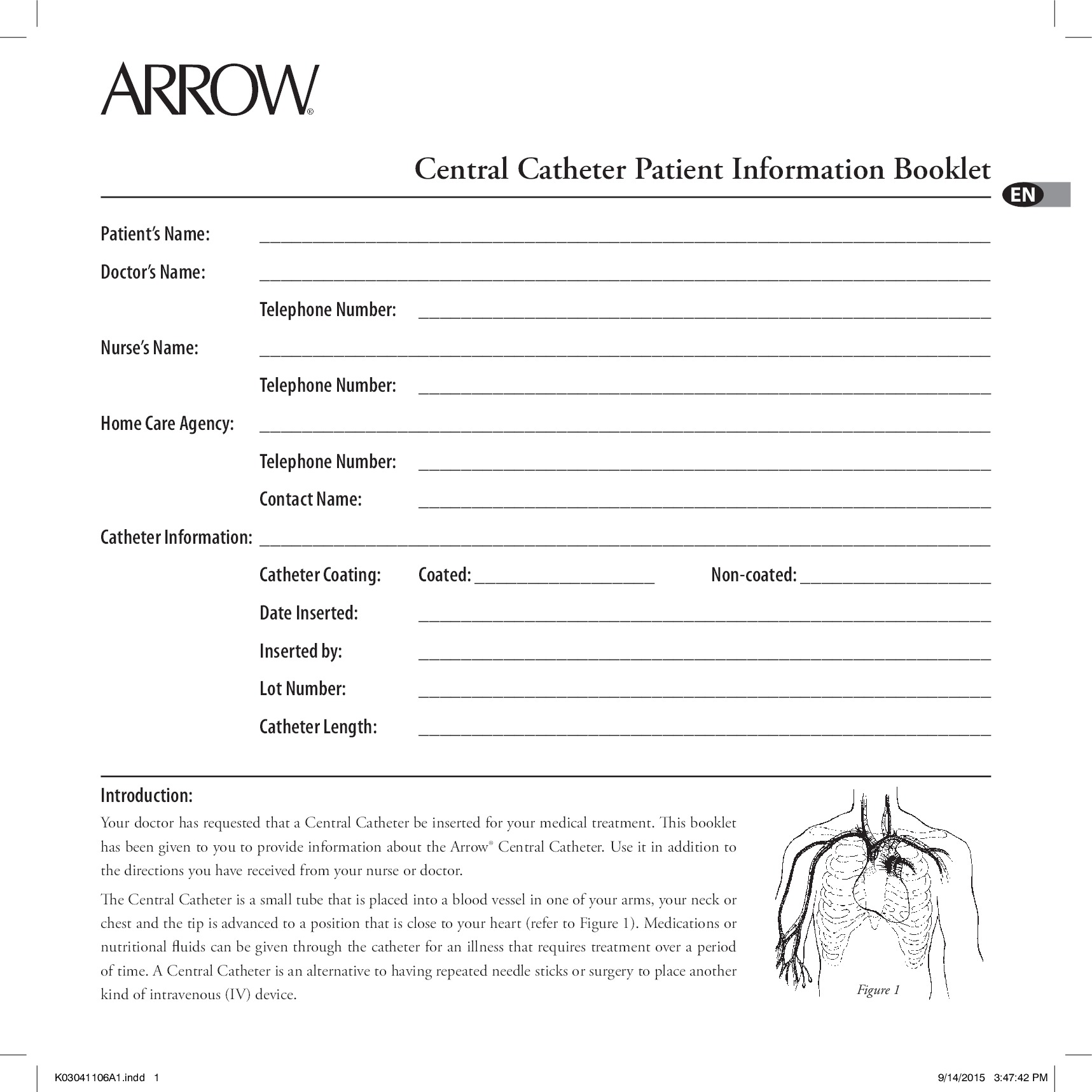

1 Patient Information Booklet
1 Flow Rate Information Card with Injection Log
1 Paper Tape Measure
1 Dressing: Tegaderm®2 10 cm x 12 cm
1 Licensed under US Patent No. 7,329,412.
2 A registered trademark of 3M Company.

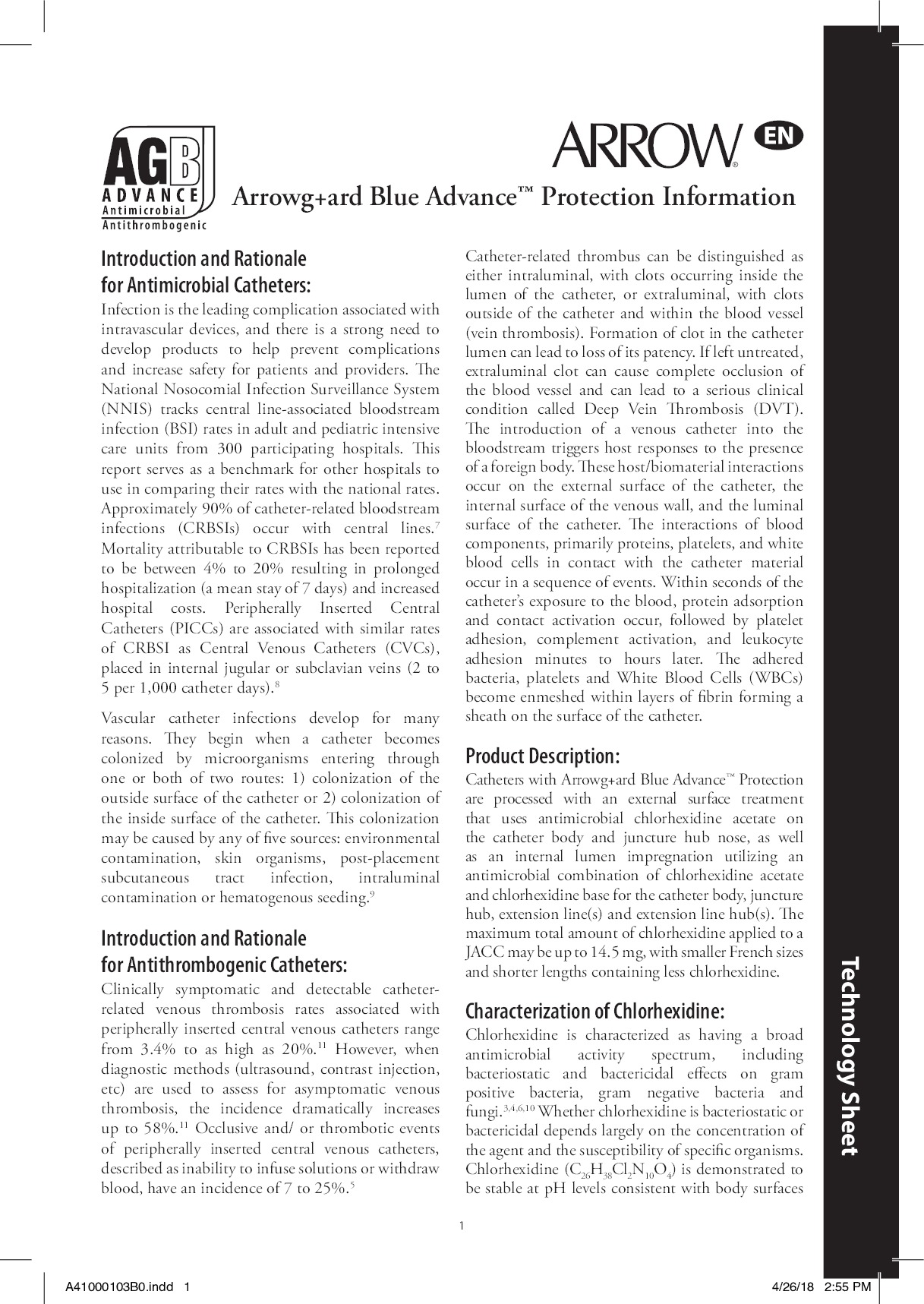

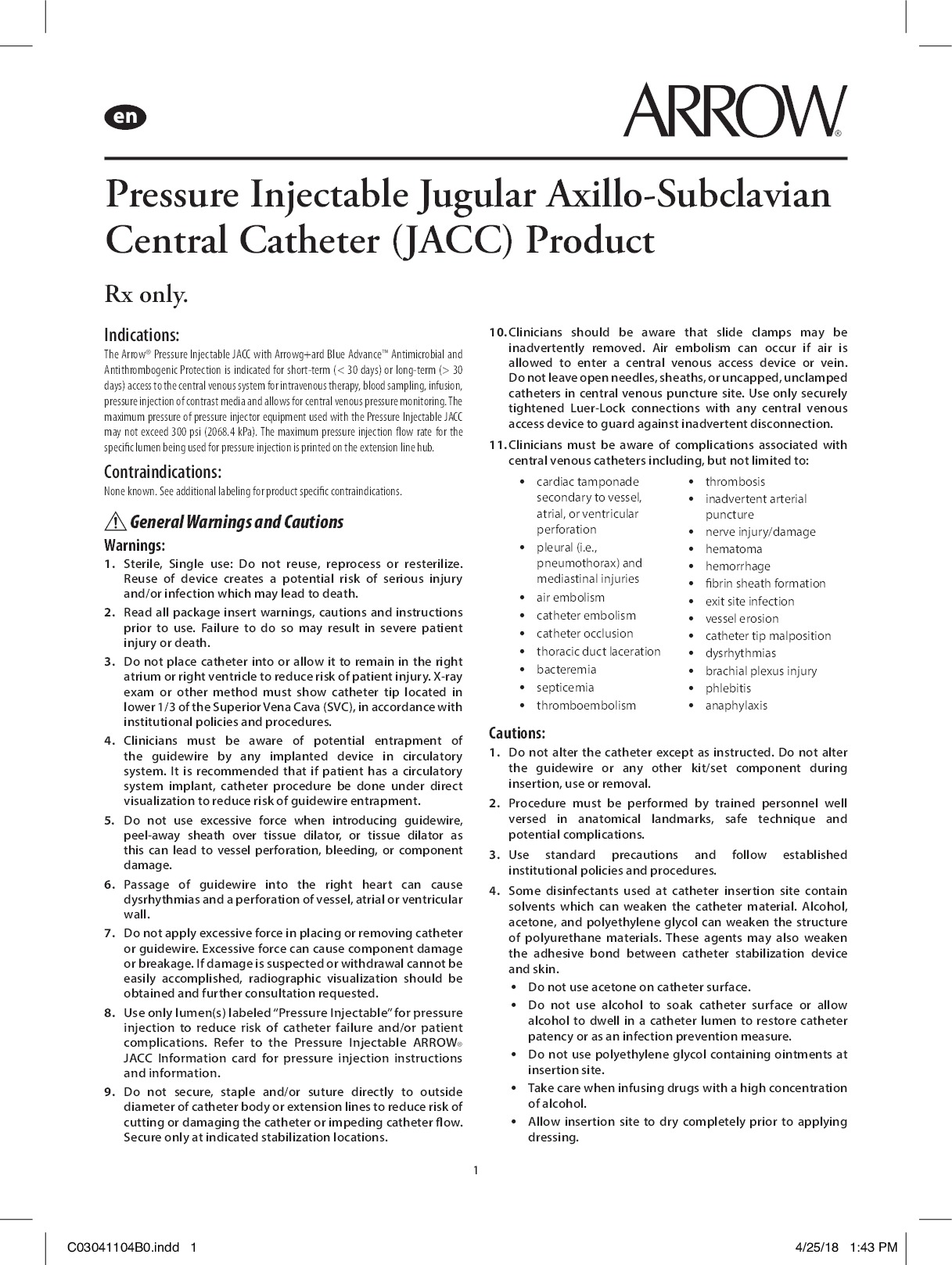

Documents

  • Xp 18130 100a
  • K 03041 106a
  • C 03041 104c
  • K 03041 106b

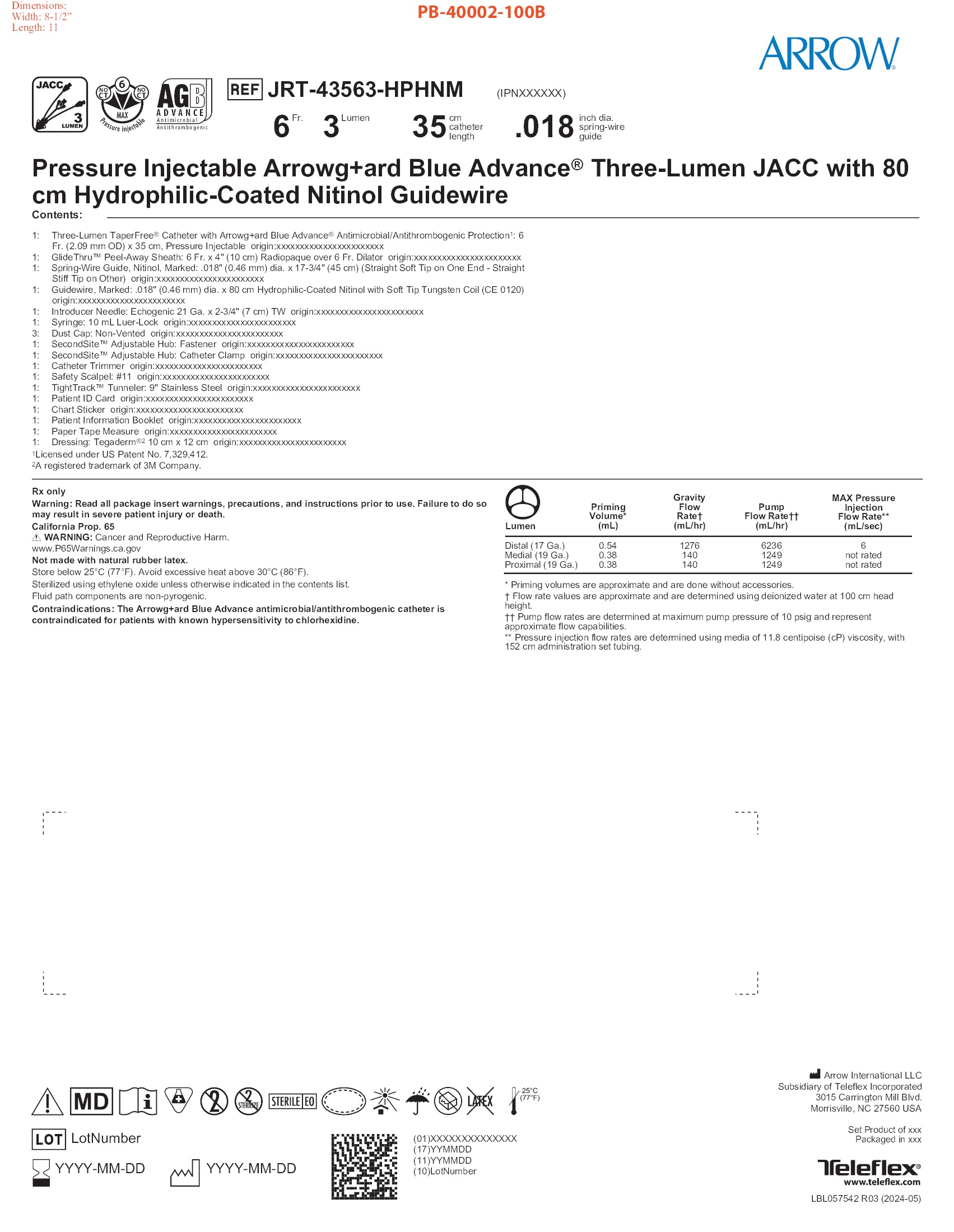

  • Lbl057542
  • A 41000 103b
  • C 03041 104b

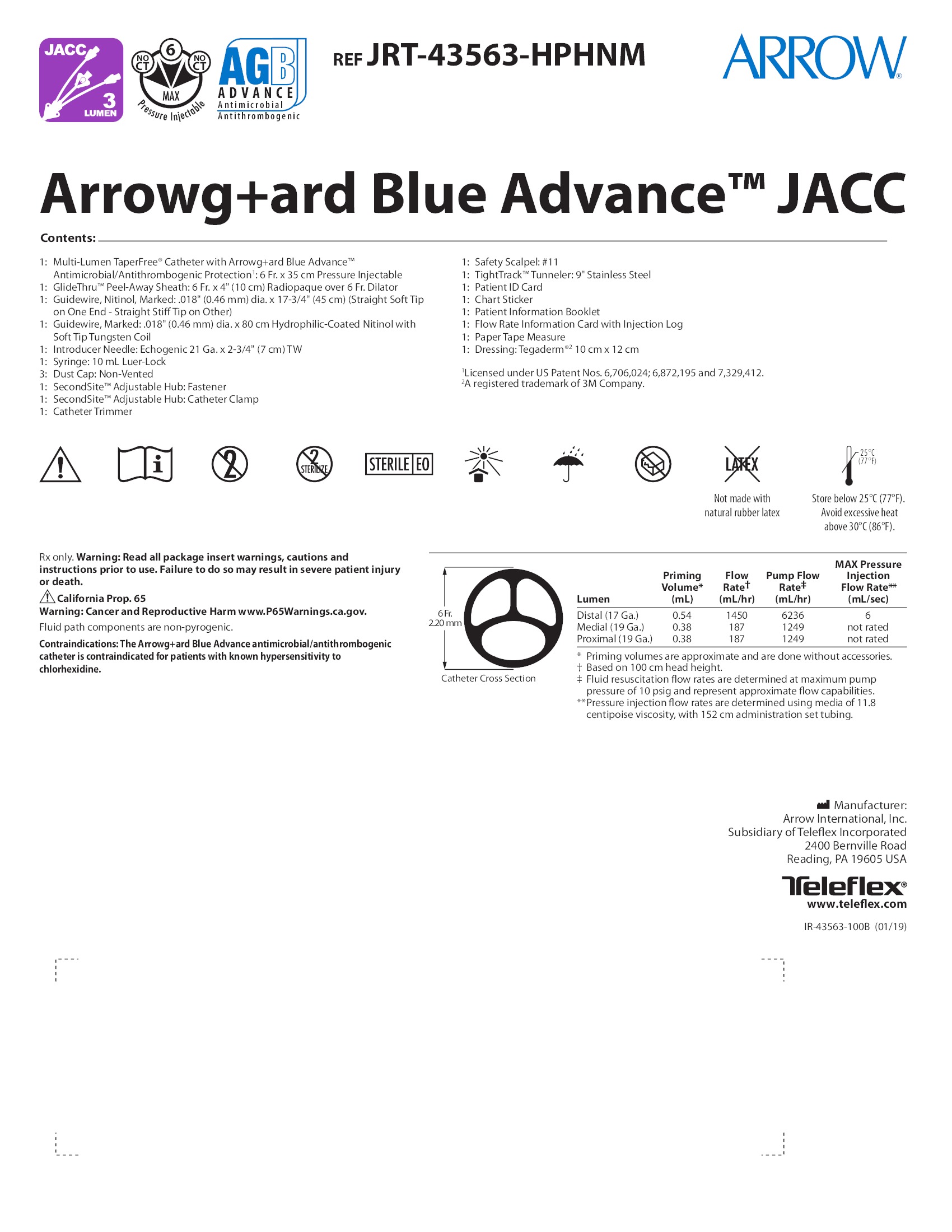

  • Ir 43563 100b
Scroll to View More
  • Xp 18130 100a
  • K 03041 106a
  • C 03041 104c
  • K 03041 106b
  • A 41000 103b
  • C 03041 104b
Scroll to View More
  • Lbl057542
  • Ir 43563 100b
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
