JRT-43541-HPHNM

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

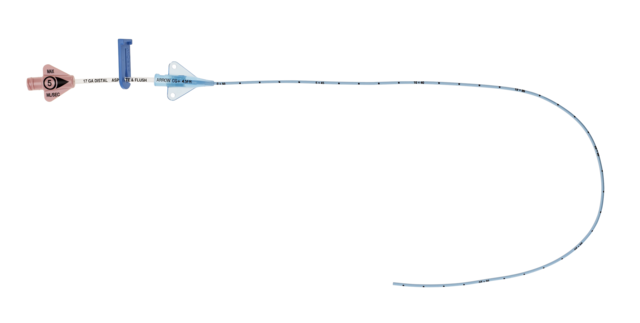

Pressure Injectable Arrowg+ard Blue Advance® One-Lumen JACC with 80 cm Hydrophilic-Coated Nitinol Guidewire

JACC IR: 1-L 4.5FR NON-TIP 80 HNIT WIRE

SKU / Article #: JRT-43541-HPHNM

Highlights

  • Antimicrobial: Arrowg+ard Blue Advance*
  • Antithrombogenic: Arrowg+ard Blue Advance*

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Advance® One-Lumen JACC with 80 cm Hydrophilic-Coated Nitinol Guidewire
SKU / Article #: JRT-43541-HPHNM
Quantity Component Description

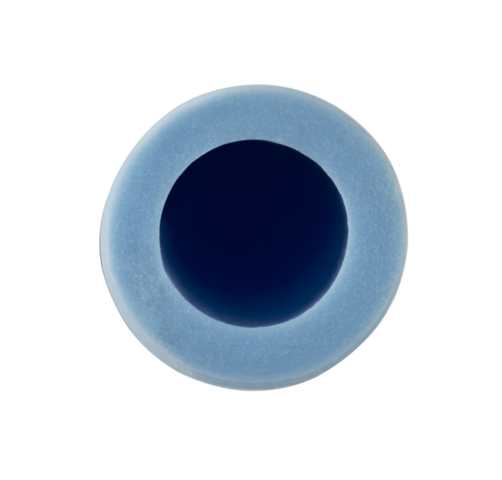

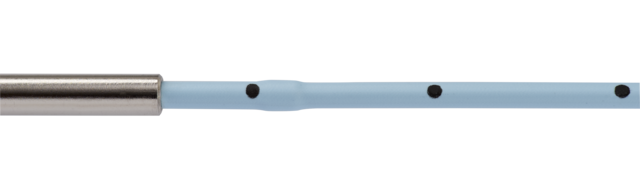

1 One-Lumen TaperFree® Catheter with Arrowg+ard Blue Advance® Antimicrobial/Antithrombogenic Protection1: 4.5 Fr. (1.55 mm OD) x 35 cm, Pressure Injectable
1 GlideThru™ Peel-Away Sheath: 4.5 Fr. x 4" (10 cm) Radiopaque over 4.5 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other)
1 Guidewire, Marked: .018" (0.46 mm) dia. x 80 cm Hydrophilic-Coated Nitinol with Soft Tip Tungsten Coil (CE 0120)
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
1 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener
1 Catheter Trimmer
1 Safety Scalpel: #11
1 TightTrack™ Tunneler: 9" Stainless Steel
1 Patient ID Card
1 Chart Sticker
1 Patient Information Booklet
1 Paper Tape Measure
1 Dressing: Tegaderm®2 10 cm x 12 cm
1 Licensed under US Patent Nos. 6,706,024, 6,872,195 and 7,329,412.
2 A registered trademark of 3M Company.

Documents

  • C 03041 104c
  • K 03041 106b

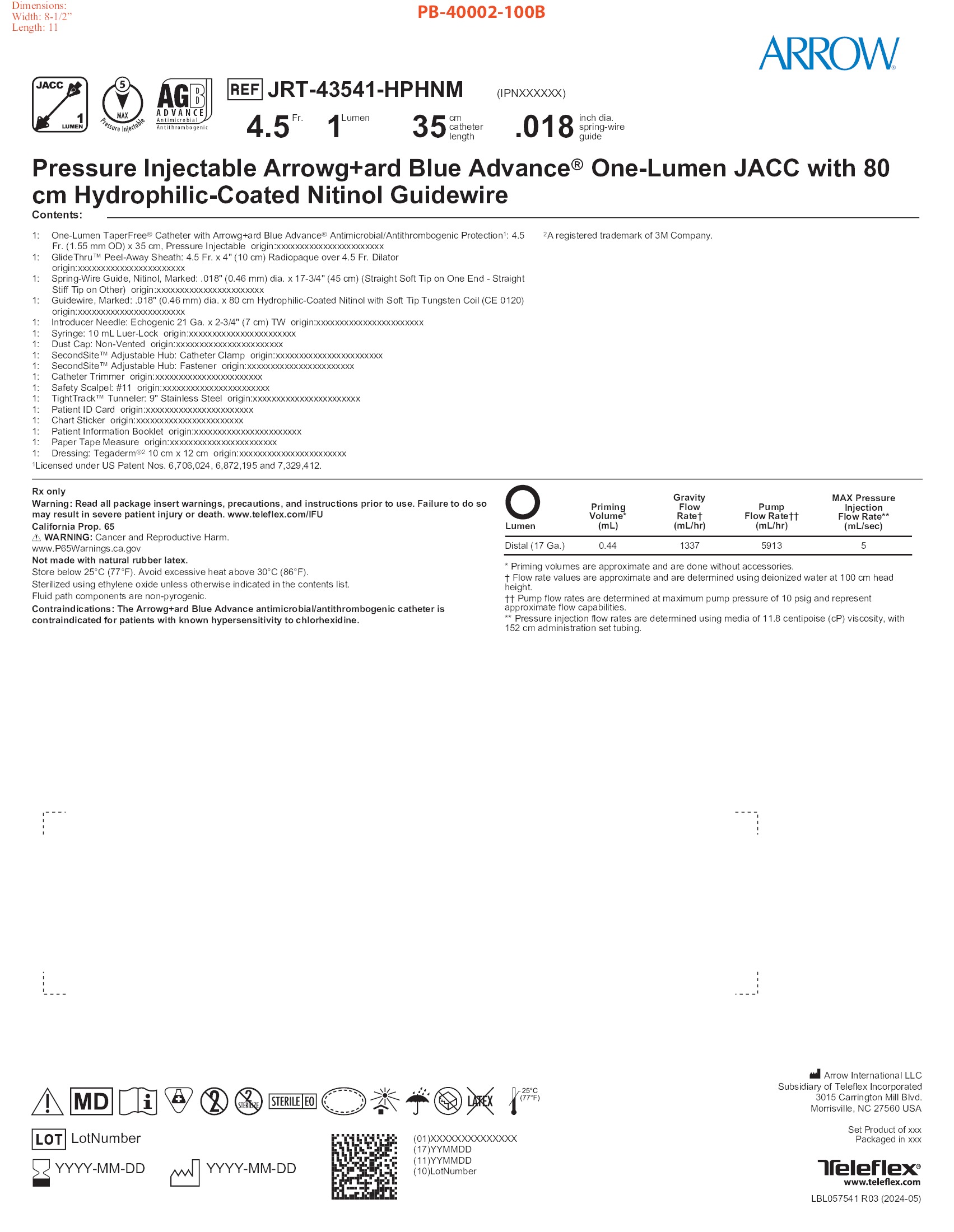

  • Lbl057541
  • Xp 18130 100a
Scroll to View More
  • C 03041 104c
  • K 03041 106b
  • Xp 18130 100a
Scroll to View More
  • Lbl057541
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
