IDLX-45552-CURV

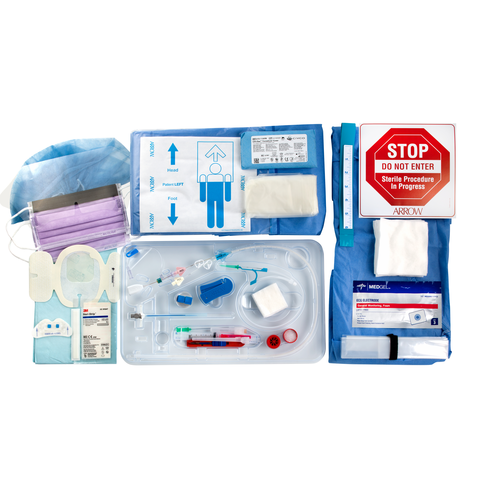

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Advance® Two-Lumen PICC pre-loaded with Arrow® NaviCurve™ Stylet

AGBA PICC NaviCurve: 2L 5.5FR x 55CM

SKU / Article #: IDLX-45552-CURV

Highlights

  • Antimicrobial: Arrowg+ard Blue Advance*
  • Antithrombogenic: Arrowg+ard Blue Advance*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • ǂǂǂMR Safe

Sales Quantity/Case: 3

Pressure Injectable Arrowg+ard Blue Advance® Two-Lumen PICC pre-loaded with Arrow® NaviCurve™ Stylet
SKU / Article #: IDLX-45552-CURV
Quantity Component Description
1 Two Lumen TaperFree® Catheter‡‡‡ with Arrowg+ard Blue Advance® Antimicrobial/Antithrombogenic Protection1: 5.5 Fr. (1.88 mm OD) x 55 cm, Pressure Injectable, Arrow® NaviCurve™ Stylet and T-Port Connector
1 GlideThru™ Peel-Away Sheath: 5.5 Fr. x 2-3/4" (7 cm) Radiopaque over 5.5 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW

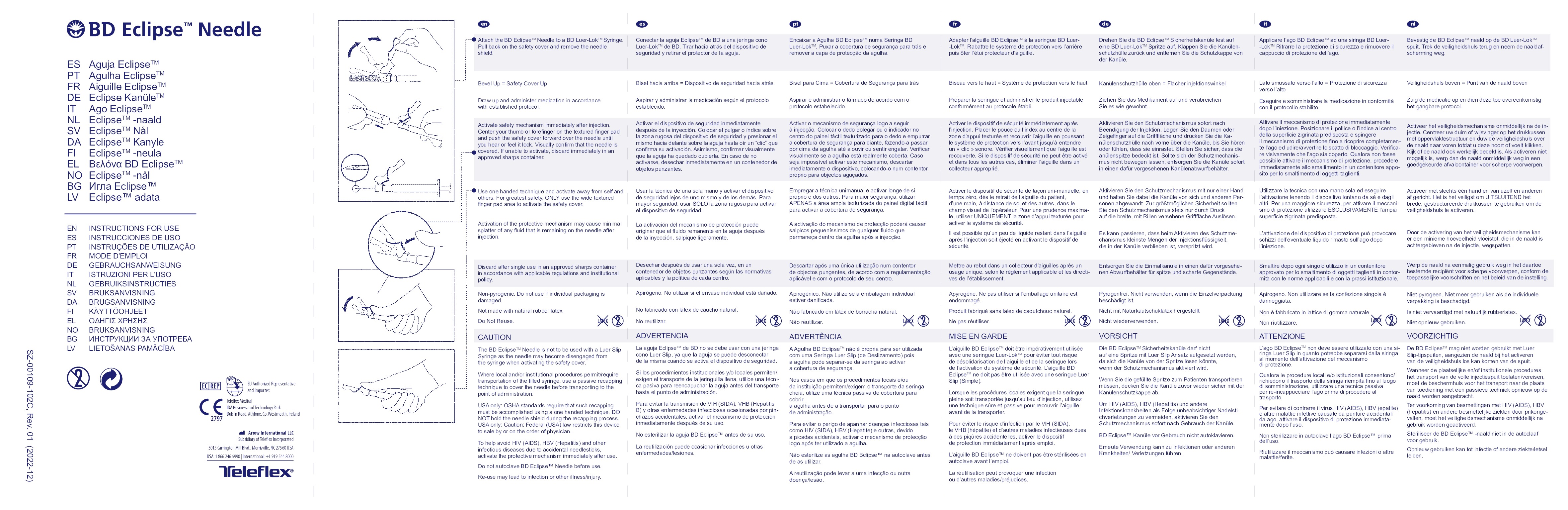

1 Injection Needle: Eclipse™2 25 Ga. x 1" (2.54 cm)

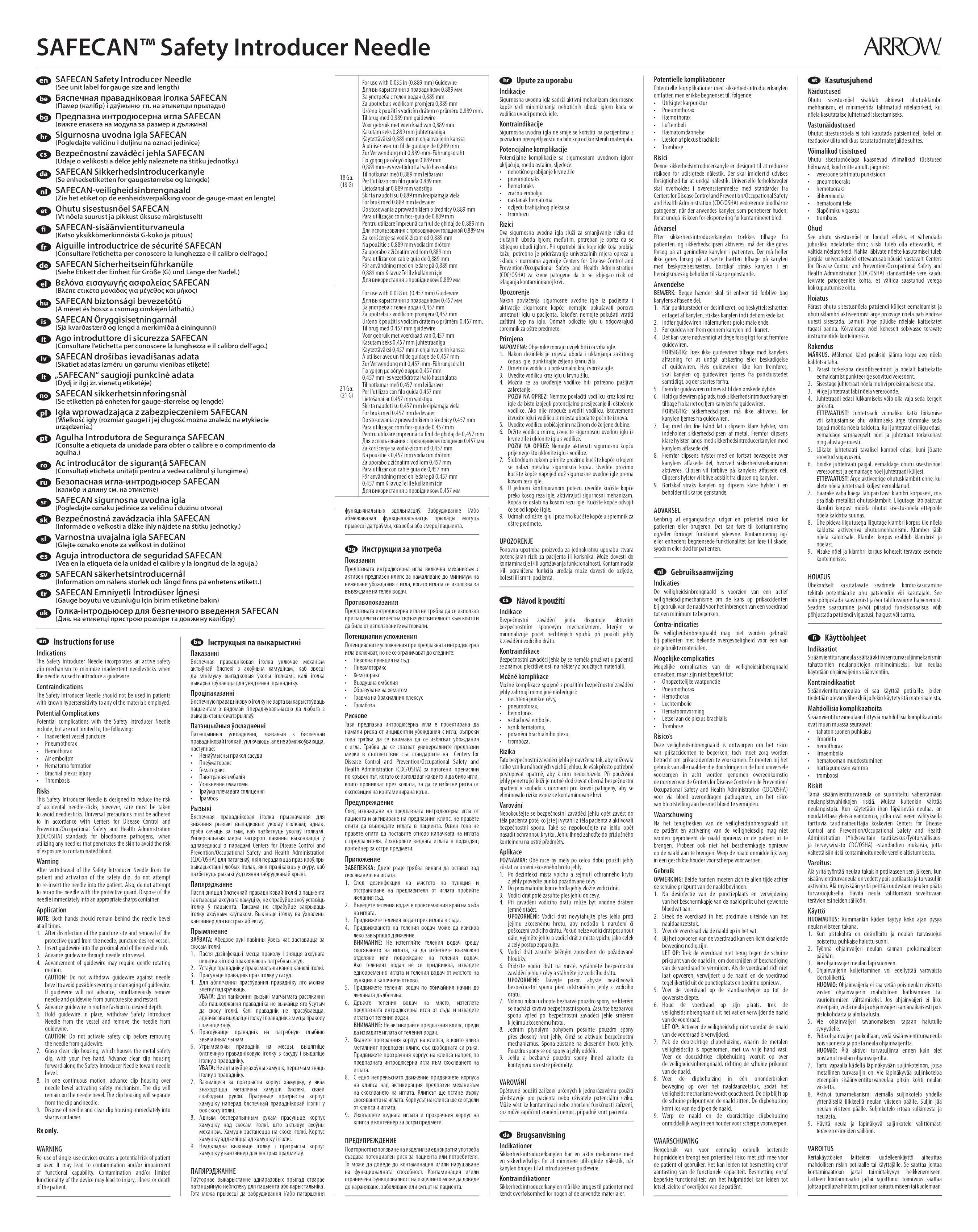

1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
1 Syringe: 3 mL Luer-Lock
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® Disposal Cup
1 SharpsAway® II Locking Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
1 Towel
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Patient ID Card

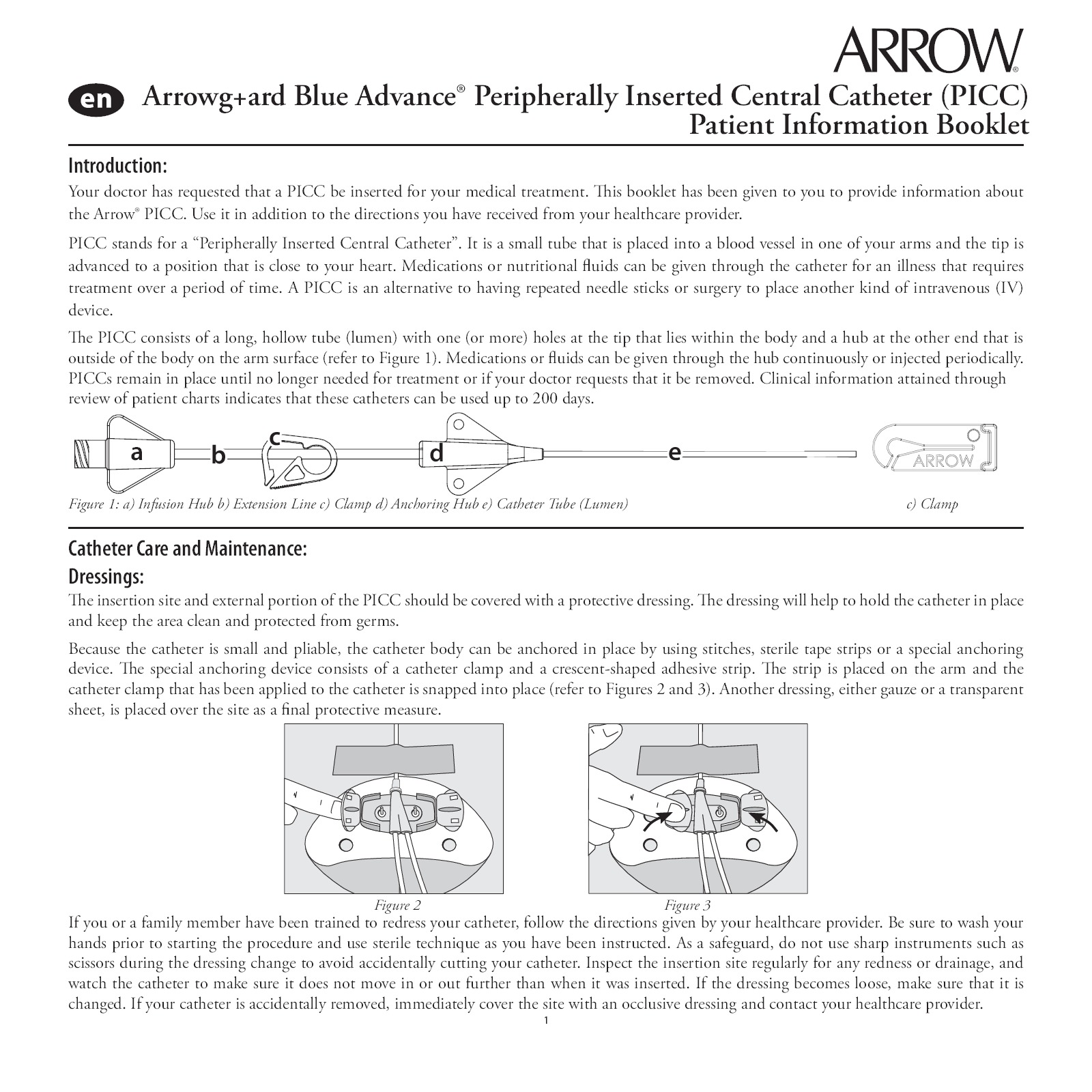

1 Patient Information Booklet
2 Paper Tape Measure
1 Tourniquet
1 Foam Electrodes (3 per pack)
5 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Transducer Cover with Gel and Rubber Bands
1 Remote Cover
1 Surgical Apparel: Mask with Eye Shield

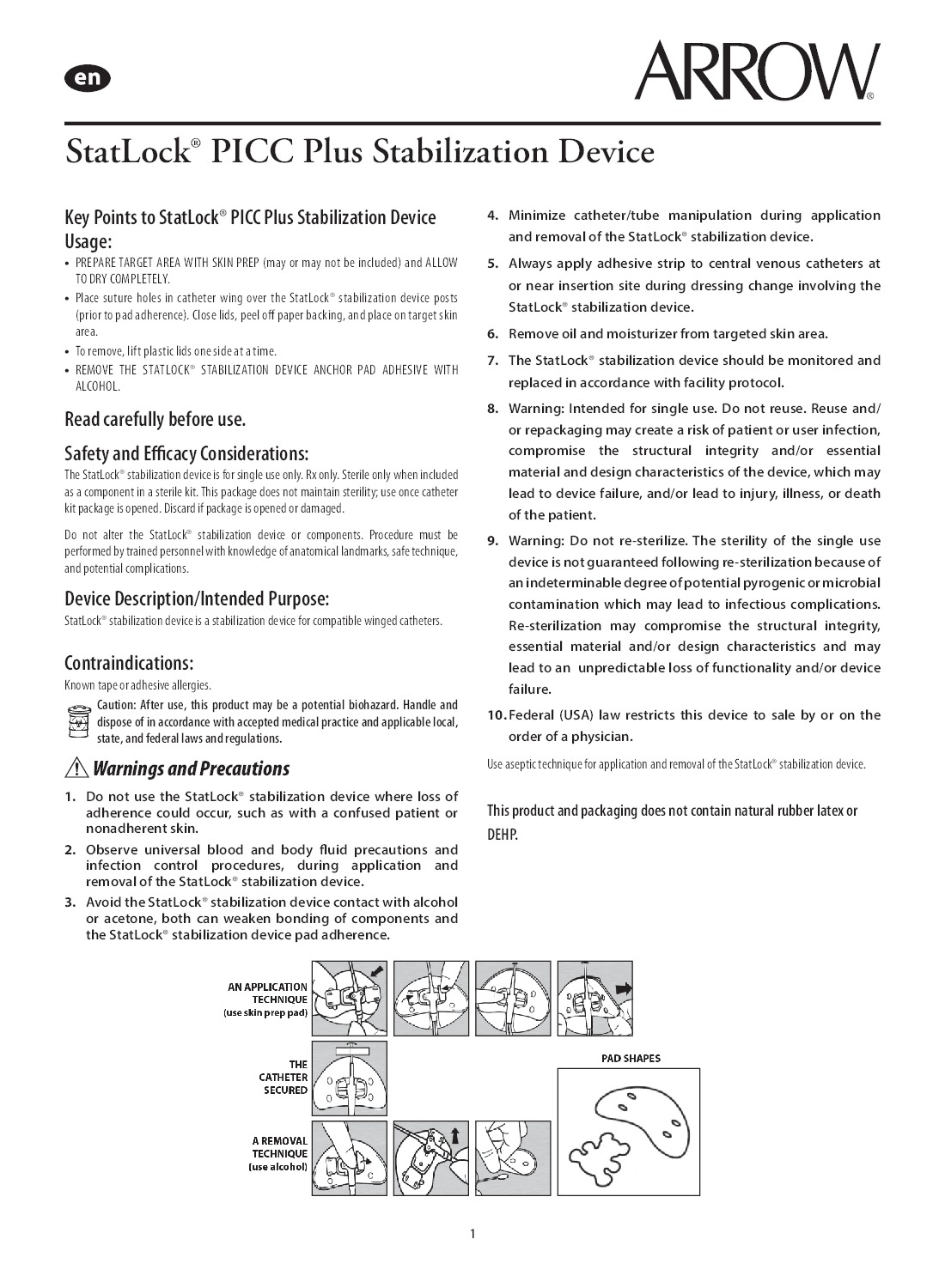

1 Dressing: STATLOCK®3 PICC Plus Catheter Stabilization Device
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®4
2 Valve: MicroCLAVE™5 Neutral Displacement Connector
1 T-Piece Cover
1 Licensed under US Patent No. 7,329,412 and 11,219,706.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of C. R. Bard, Inc.
4 A registered trademark of 3M Company.
5 A trademark of ICU Medical, Inc.

Documents

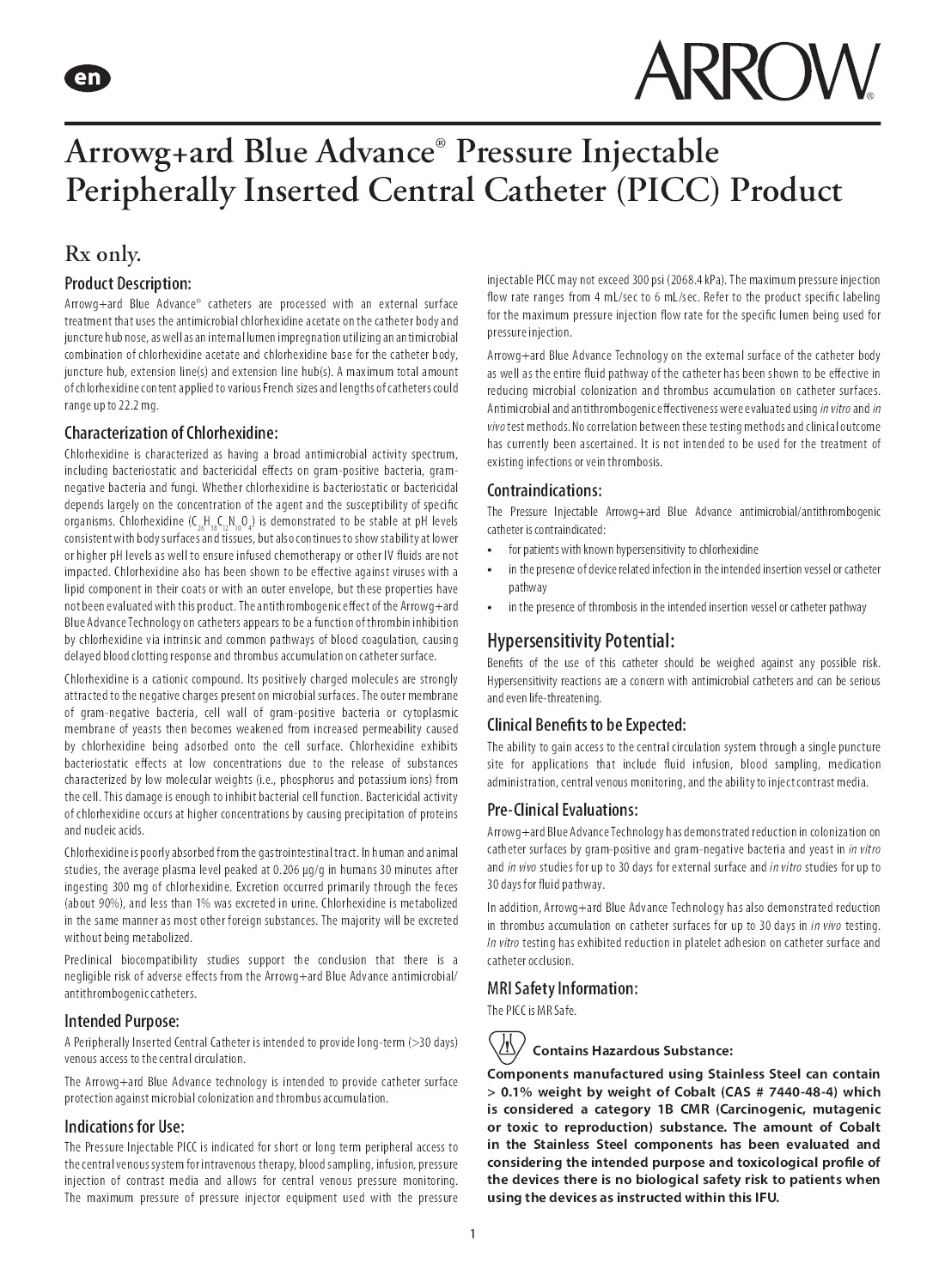

  • A 06041 111b
  • E 05100 100a
  • Ic 45000 100d
  • K 03041 109a

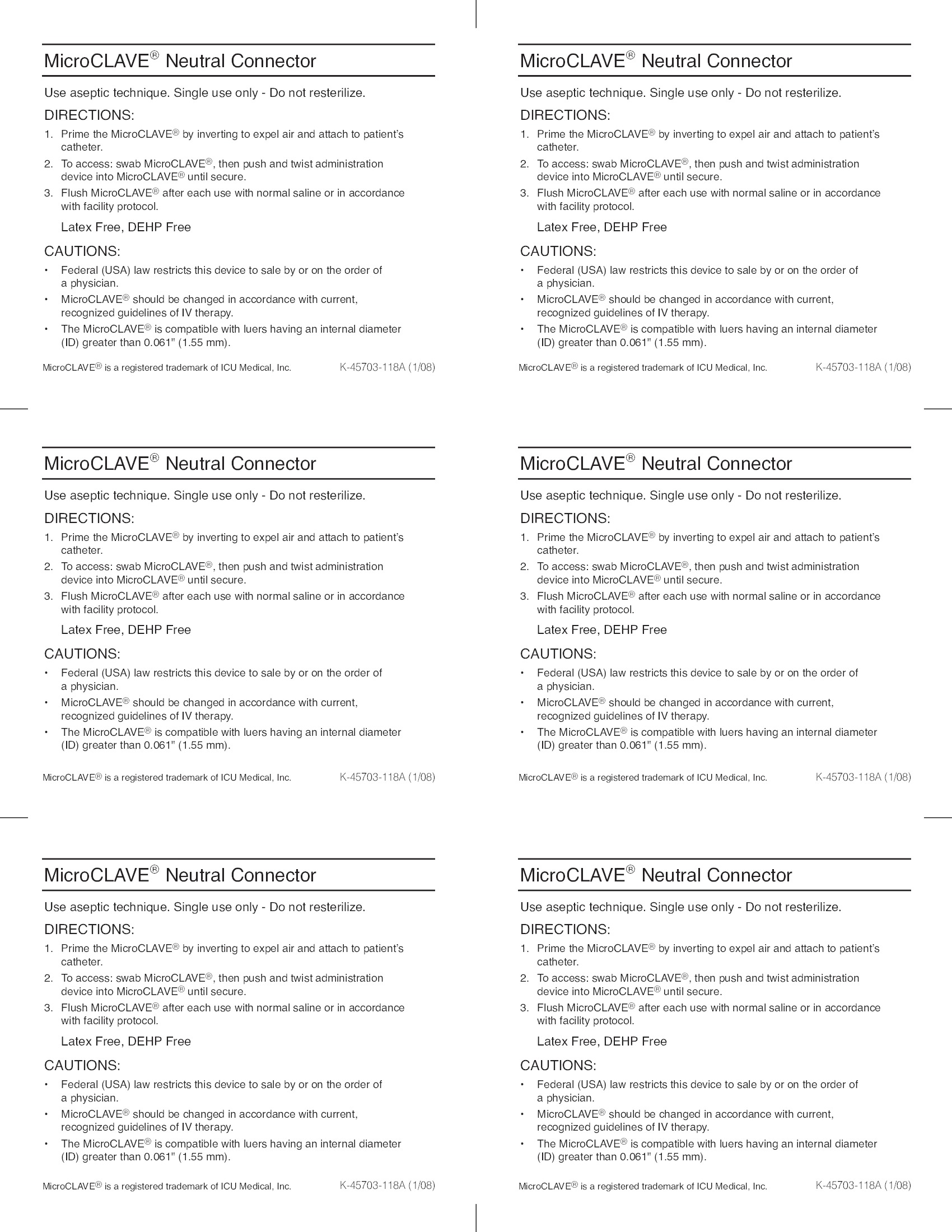

  • K 45703 118a

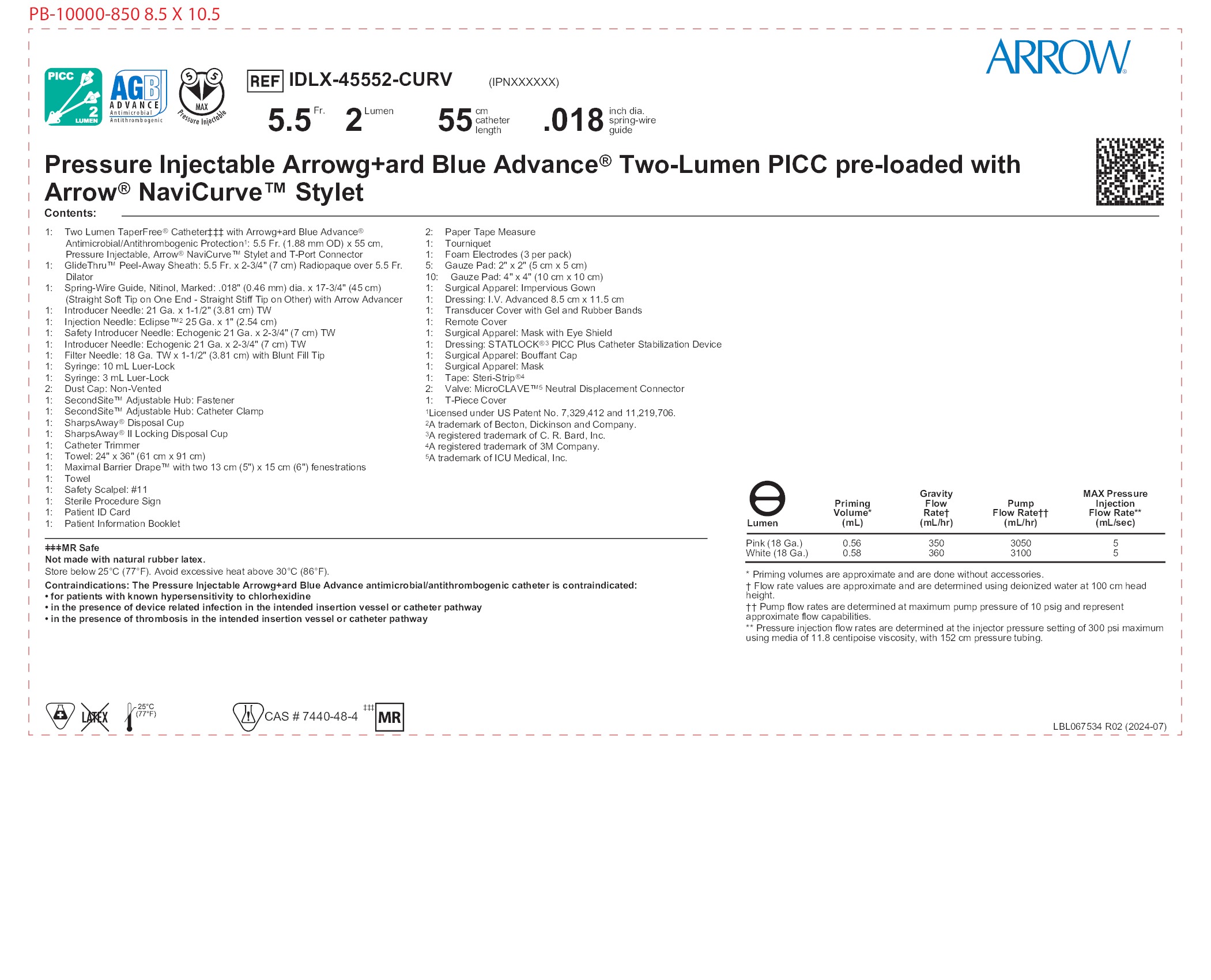

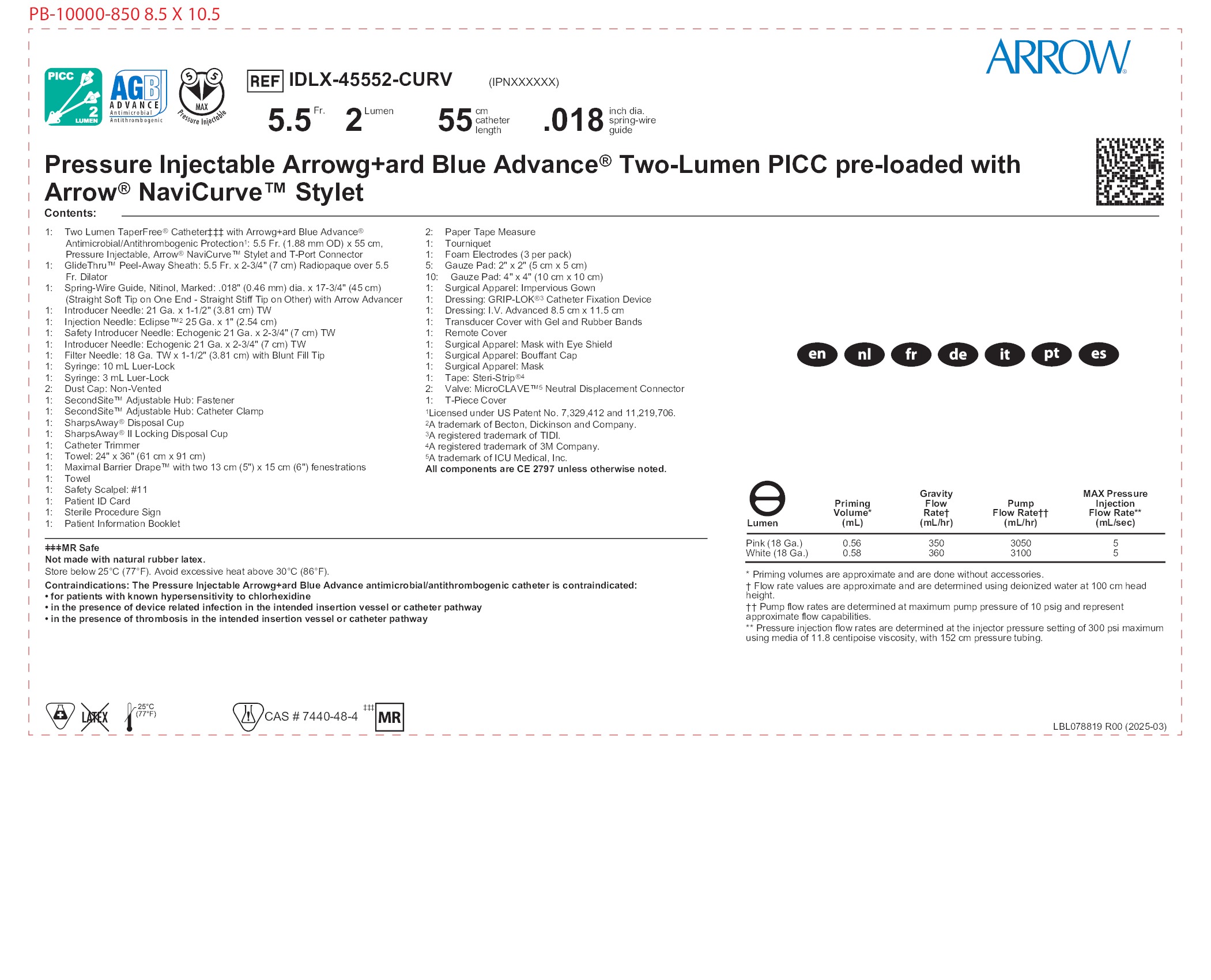

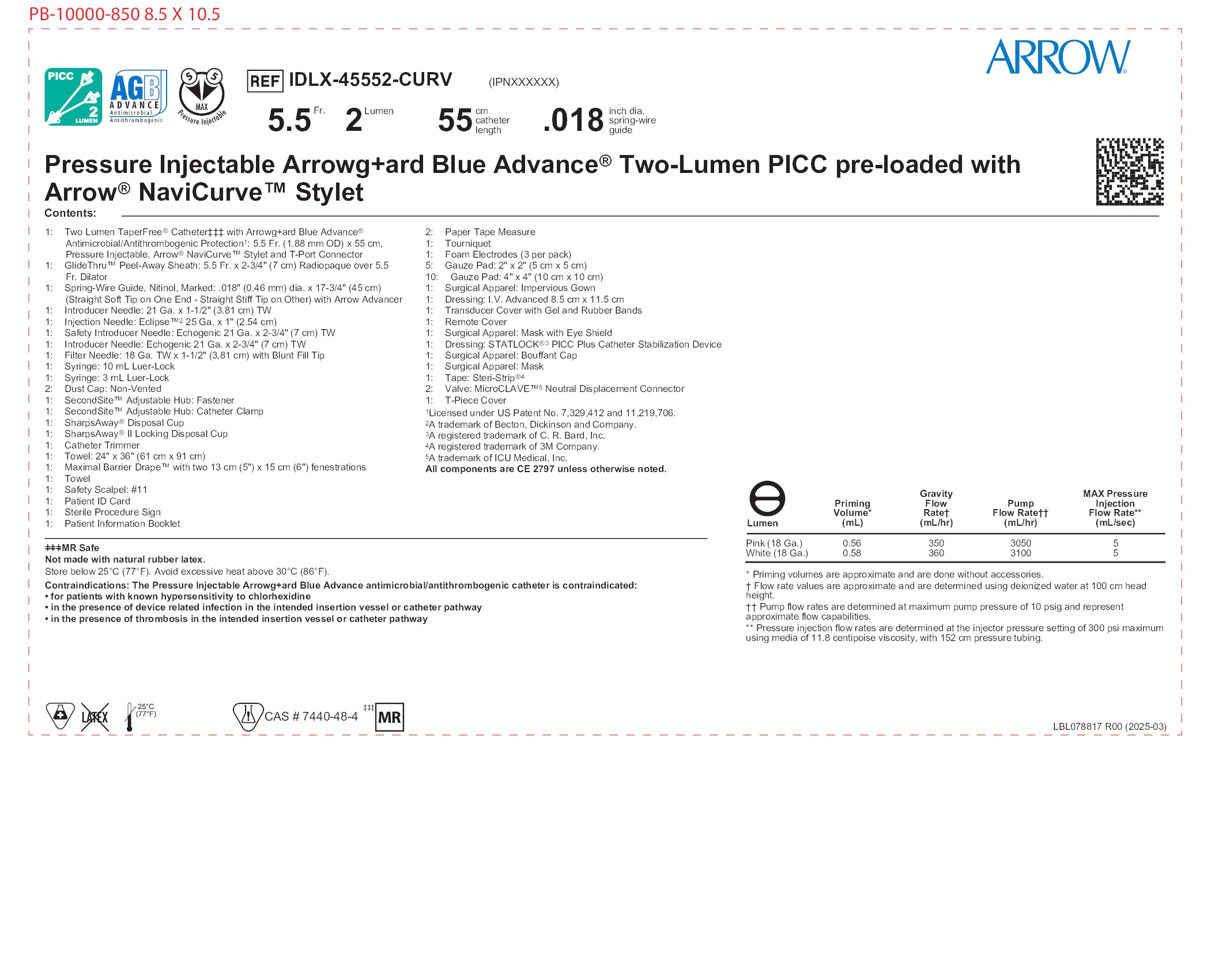

  • Lbl067534

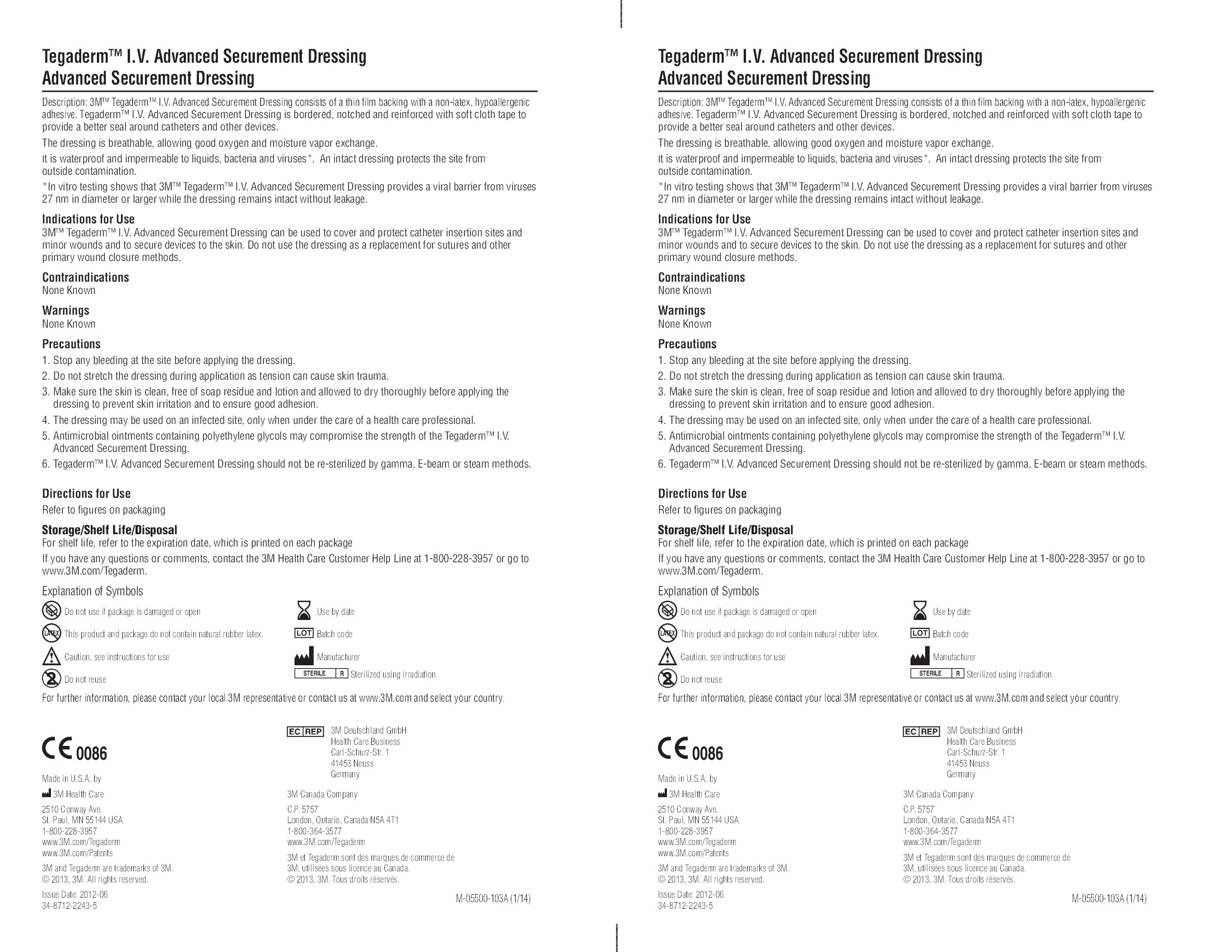

  • M 05500 103a

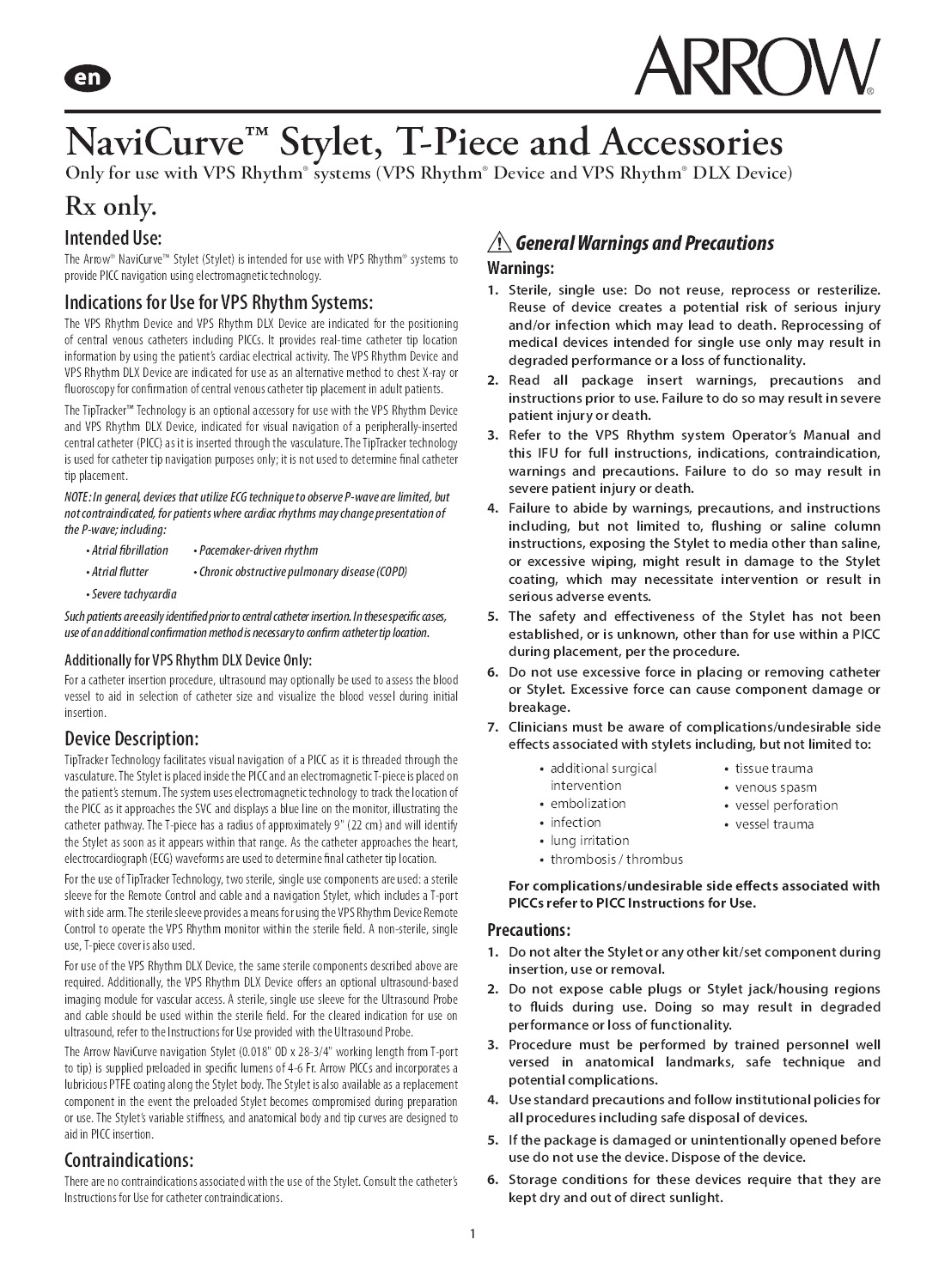

  • S 20100 201a
Scroll to View More
  • A 06041 111b
  • E 05100 100a
  • K 03041 109a
  • K 45703 118a
  • M 05500 103a
  • S 20100 201a
Scroll to View More
  • Ic 45000 100d
  • Lbl067534
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
