Pressure Injectable Two-Lumen PICC pre-loaded with Arrow® NaviCurve™ Stylet

PI PICC NaviCurve: 2L 5FR x 55CM

SKU / Article #: IDLX-35552-CURV

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • ǂǂǂMR Safe

Sales Quantity/Case: 3

Pressure Injectable Two-Lumen PICC pre-loaded with Arrow® NaviCurve™ Stylet
SKU / Article #: IDLX-35552-CURV

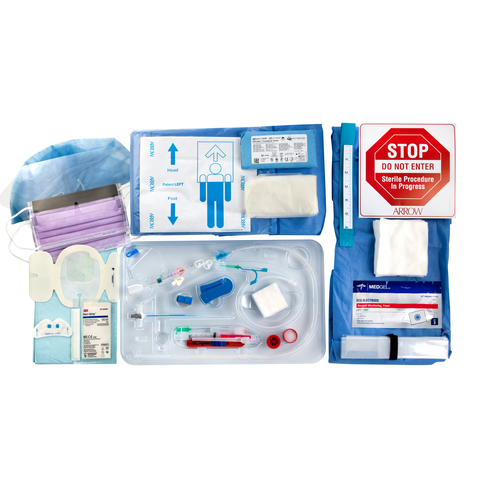

Quantity Component Description
1 Two Lumen TaperFree® Catheter‡‡‡: 5 Fr. (1.81 mm OD) x 55 cm, Pressure Injectable, Arrow® NaviCurve™ Stylet and T-Port Connector
1 GlideThru™ Peel-Away Sheath: 5 Fr. x 2-3/4" (7 cm) Radiopaque over 5 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Filter Needle: 18 Ga. TW x 1-1/2" (3.81 cm) with Blunt Fill Tip
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Injection Needle: Eclipse™1 25 Ga. x 1" (2.54 cm)
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
1 Syringe: 3 mL Luer-Lock
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® Disposal Cup
1 SharpsAway® II Locking Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
1 Towel
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Patient ID Card
1 Patient Information Booklet
2 Paper Tape Measure
1 Tourniquet
1 Foam Electrodes (3 per pack)
5 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Transducer Cover with Gel and Rubber Bands
1 Remote Cover
1 Surgical Apparel: Mask with Eye Shield
1 Dressing: STATLOCK®2 PICC Plus Catheter Stabilization Device
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®3
2 Valve: MicroCLAVE™4 Neutral Displacement Connector
1 T-Piece Cover
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of C. R. Bard, Inc.
3 A registered trademark of 3M Company.
4 A trademark of ICU Medical, Inc.

Documents

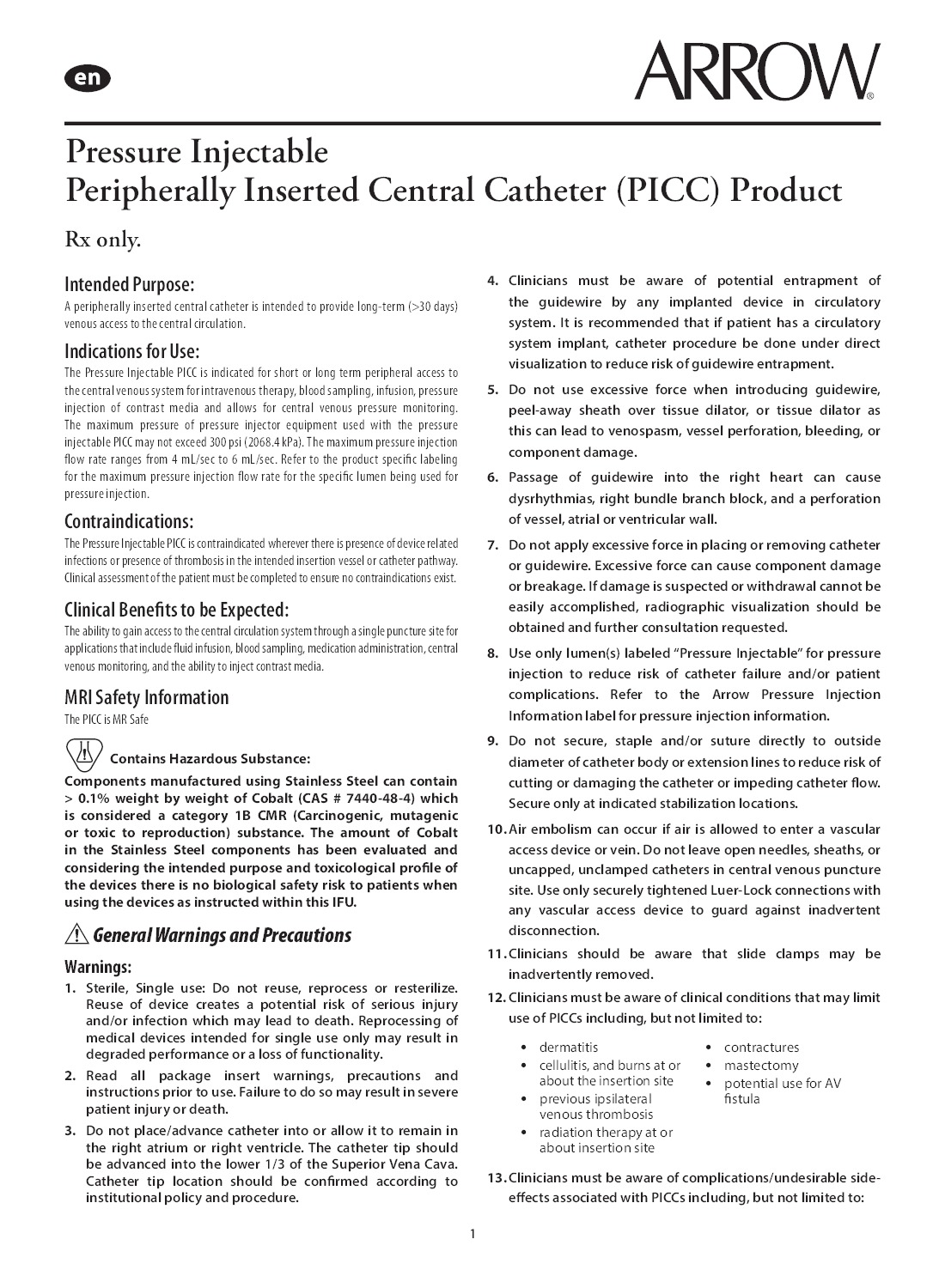

  • A 06041 105c
  • E 05100 100a
  • K 01552 117b
  • K 45703 118a

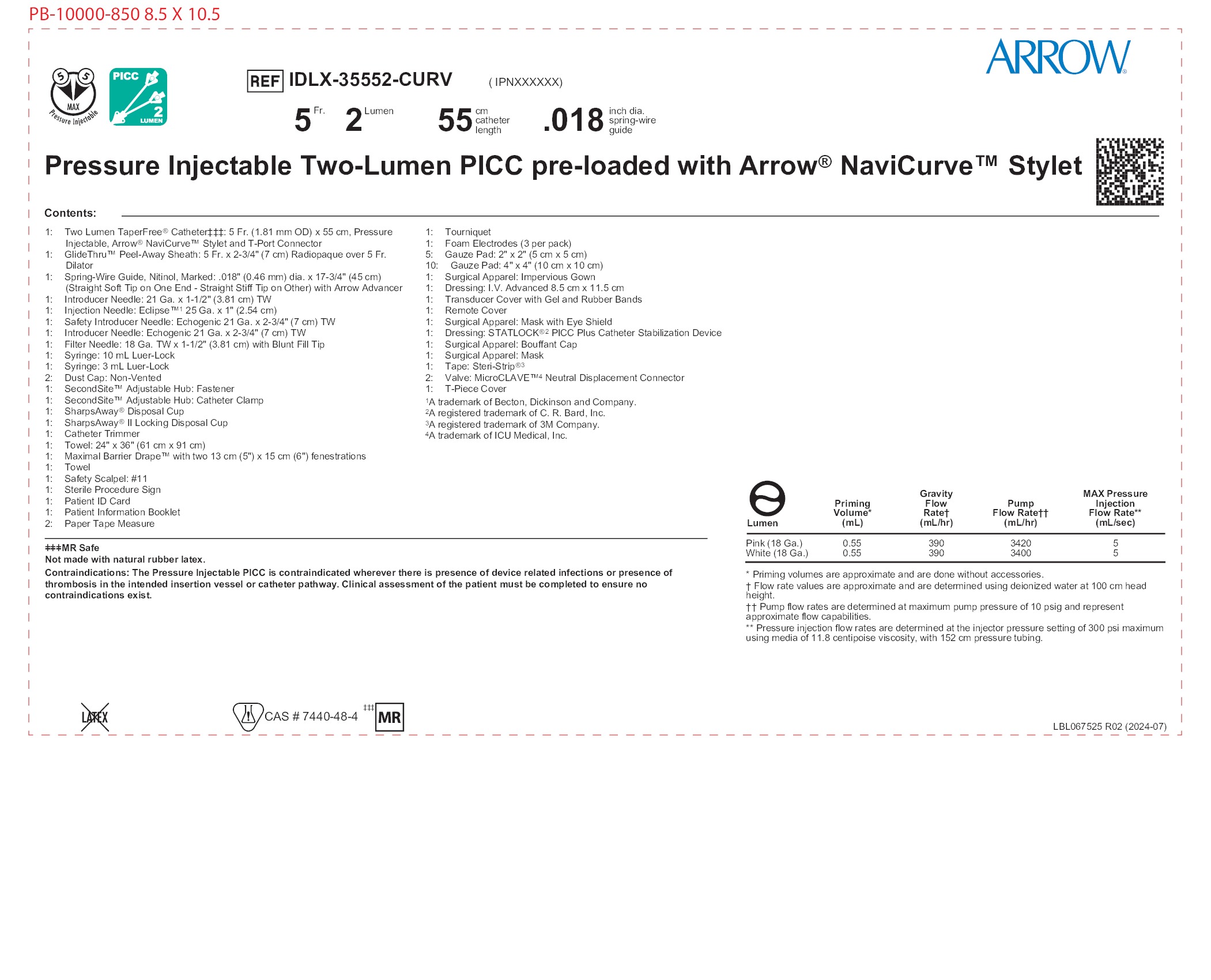

  • Lbl067525
  • M 05500 103a
  • S 20100 201a
Scroll to View More
  • A 06041 105c
  • E 05100 100a
  • K 01552 117b
  • K 45703 118a
  • M 05500 103a
  • S 20100 201a
Scroll to View More
  • Lbl067525
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
