DLX-35541-CURVB

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable One-Lumen PICC pre-loaded with Arrow® NaviCurve™ Stylet

PI PICC NaviCurve: 1L 4FR x 55CM w BP

SKU / Article #: DLX-35541-CURVB

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine
  • ǂǂǂMR Safe

Sales Quantity/Case: 3

Pressure Injectable One-Lumen PICC pre-loaded with Arrow® NaviCurve™ Stylet
SKU / Article #: DLX-35541-CURVB
Quantity Component Description
1 One Lumen TaperFree® Catheter‡‡‡: 4 Fr. (1.45 mm OD) x 55 cm, Pressure Injectable, Arrow® NaviCurve™ Stylet and T-Port Connector
1 GlideThru™ Peel-Away Sheath: 4 Fr. x 2-3/4" (7 cm) Radiopaque over 4 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Injection Needle: SafetyGlide™1 25 Ga. x 5/8" (1.60 cm)
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 5 mL Luer-Lock
4 10 mL Luer-Lock Pre-Filled Saline Syringe
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution
2 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange™ Tint
1 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Patient ID Card
1 Patient Information Booklet
1 Medication Label: 1% Lidocaine
2 Paper Tape Measure
1 Tourniquet
1 Foam Electrodes (3 per pack)
10 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Surgical Apparel: Impervious Gown
1 Dressing: I.V. Advanced 8.5 cm x 11.5 cm
1 Dressing: BIOPATCH®3
1 Transducer Cover with Gel and Rubber Bands
1 Remote Cover
1 Surgical Apparel: Mask with Eye Shield
1 Dressing: STATLOCK®4 PICC Plus Catheter Stabilization Device
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®5
1 T-Piece Cover
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of CareFusion or one of its subsidiaries.
3 A registered trademark of Johnson & Johnson Corporation.
4 A registered trademark of C. R. Bard, Inc.
5 A registered trademark of 3M Company.

Documents

  • A 06041 105c
  • K 01552 112b
  • K 01552 117b
  • K 07800 121

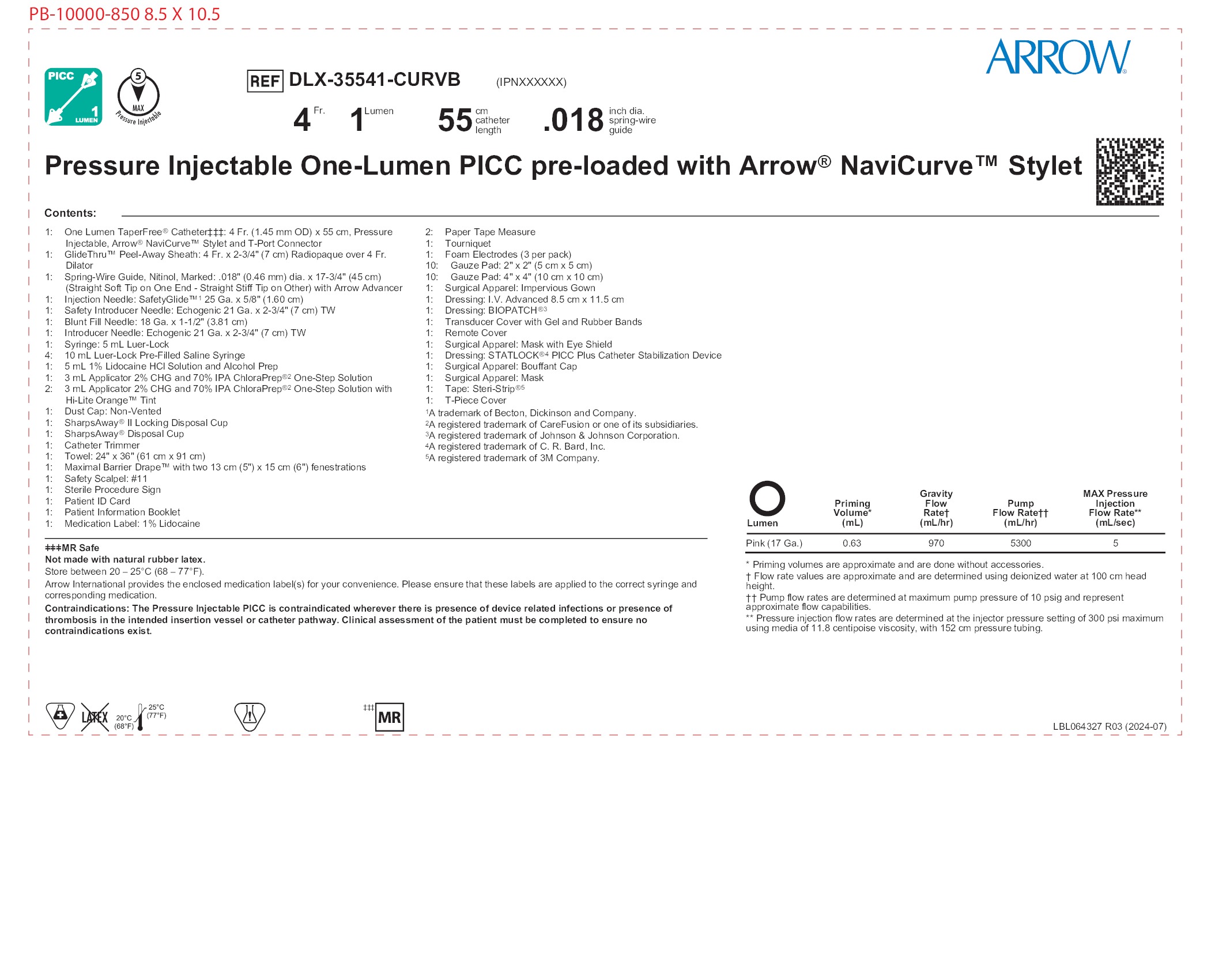

  • Lbl064327
  • O 42703 101a
  • S 05041 400
  • S 20100 201a
  • M 05500 105a
Scroll to View More
  • A 06041 105c
  • K 01552 112b
  • K 01552 117b
  • K 07800 121
  • O 42703 101a
  • S 05041 400
  • S 20100 201a
  • M 05500 105a
Scroll to View More
  • Lbl064327
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
