Arrowg+ard Blue Plus® Two-Lumen CVC

CVC SET: 2-LUMEN 7 FR X 20 CM

SKU / Article #: CS-47702-E

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • CE Mark

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Arrowg+ard Blue Plus® Two-Lumen CVC
SKU / Article #: CS-47702-E
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Two-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer with ECG Mark
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Pressure Transduction Probe
1 Arrow® Raulerson Spring-Wire Introduction Syringe: 5 mL
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Licensed under US Patent No. 7,329,412.

Documents

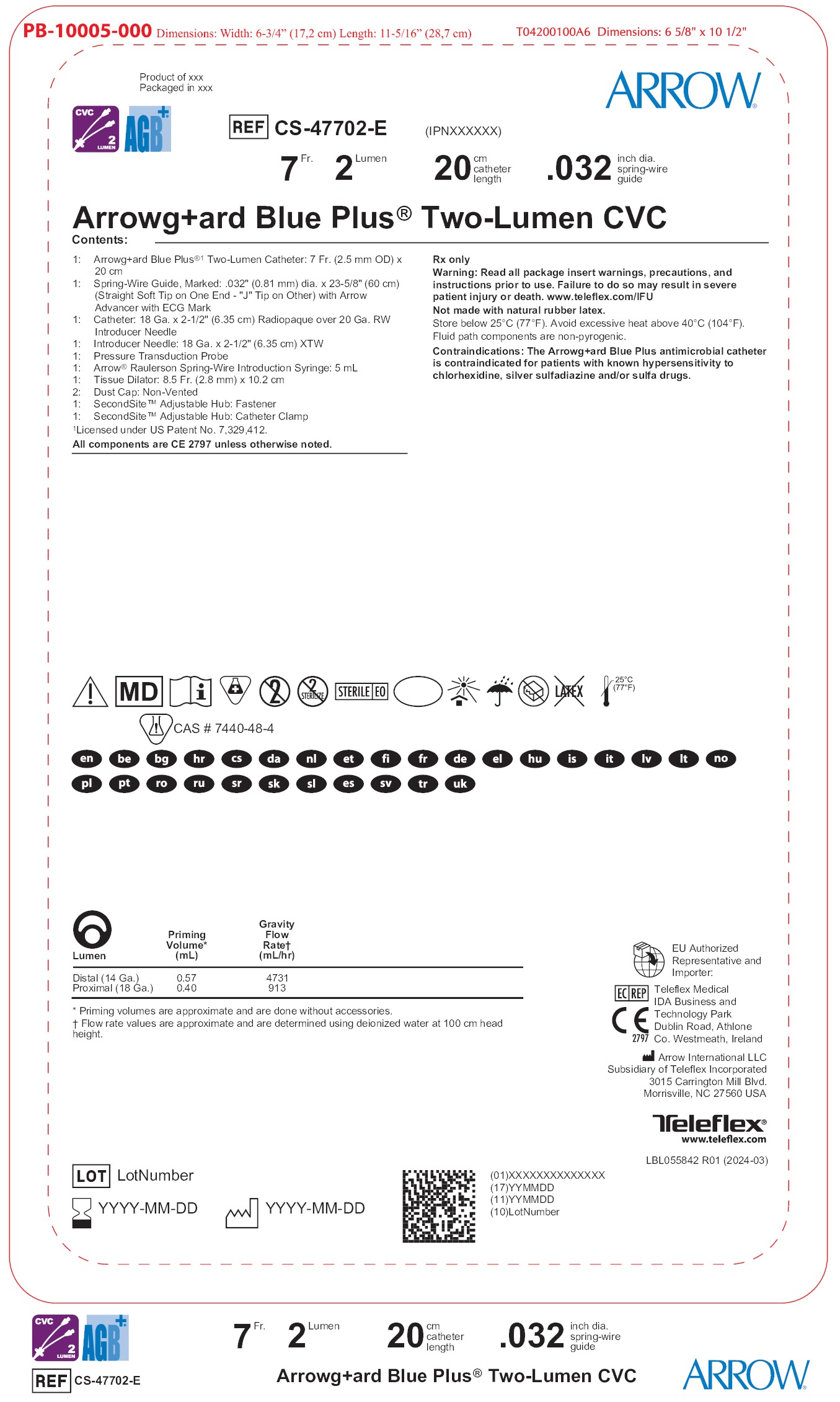

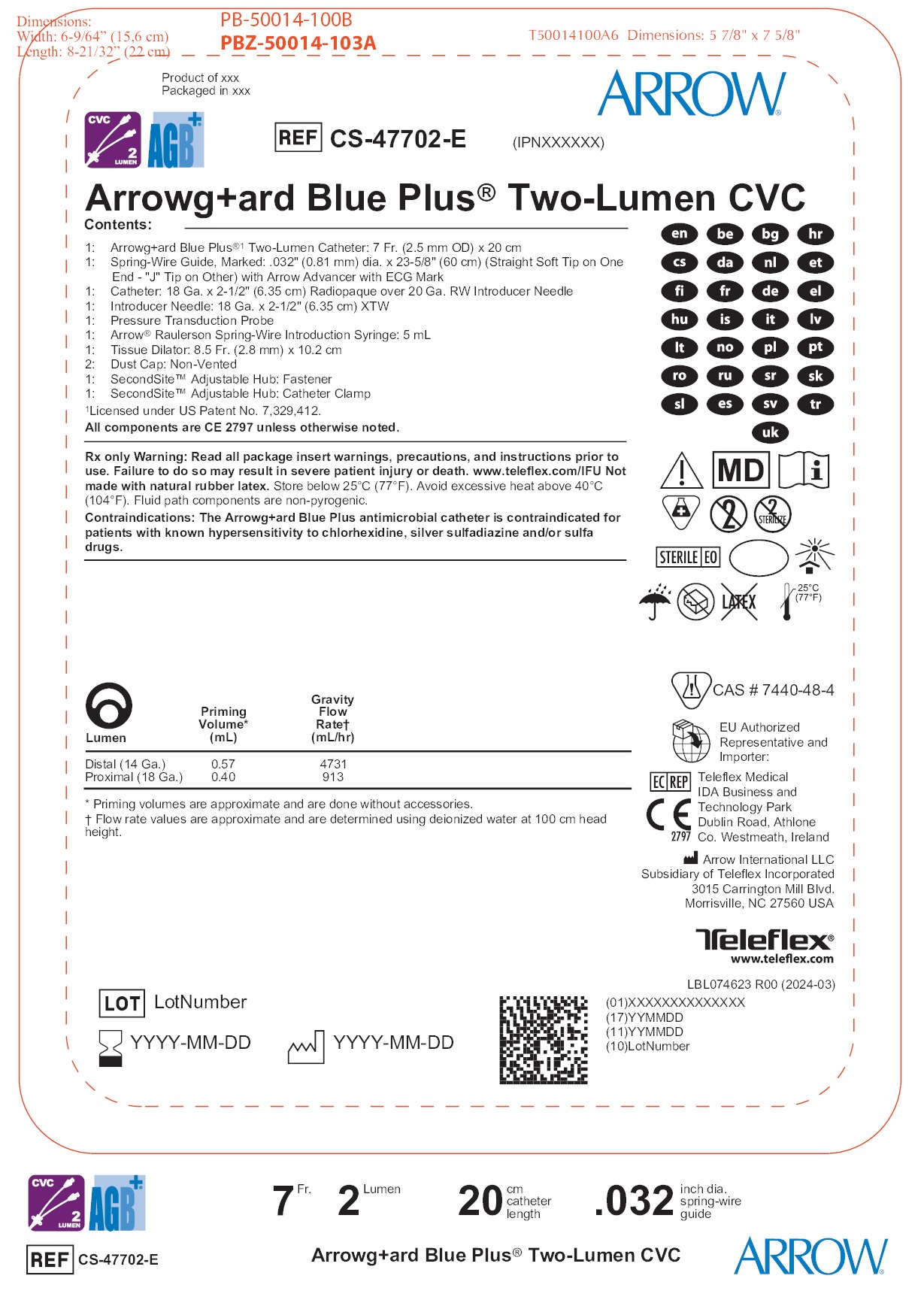

  • Lbl074623
  • Lbl055842
  • S 45703 125b
  • S 45703 126b
Scroll to View More
  • Lbl074623
  • Lbl055842
Scroll to View More
  • S 45703 125b
  • S 45703 126b
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
