CS-15403

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pediatric Three-Lumen CVC

CVC SET: 3-LUMEN 4FR X 8CM

SKU / Article #: CS-15403

Highlights

  • CE Mark

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pediatric Three-Lumen CVC
SKU / Article #: CS-15403
Quantity Component Description
1 Three-Lumen Catheter: 4 Fr. (1.5 mm OD) x 8 cm
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Syringe: 5 mL Luer-Slip
1 Tissue Dilator: 5 Fr. (1.8 mm) x 7.5 cm
1 Tissue Dilator: 5 Fr. (1.8 mm) x 4.1 cm
3 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener

Documents

  • S 15703 112c
  • S 15703 113c

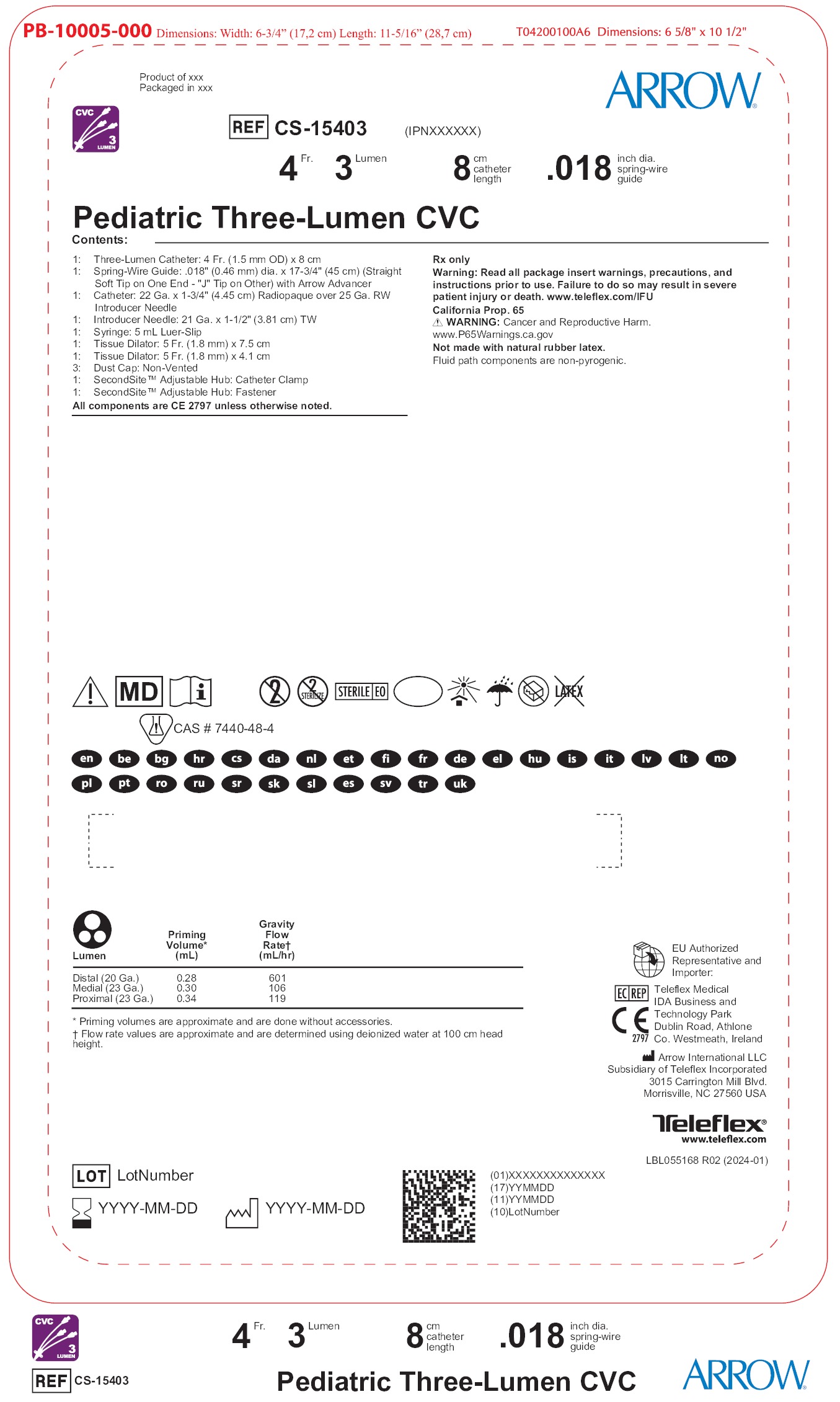

  • Lbl055168
Scroll to View More
  • S 15703 112c
  • S 15703 113c
Scroll to View More
  • Lbl055168
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
