CDA-45541-HPK1A
  • Va picc 1l cg pi 4
  • Va picc 1l cg pi 4

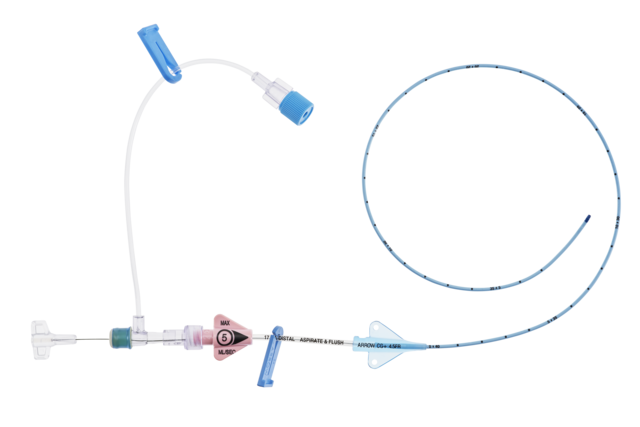

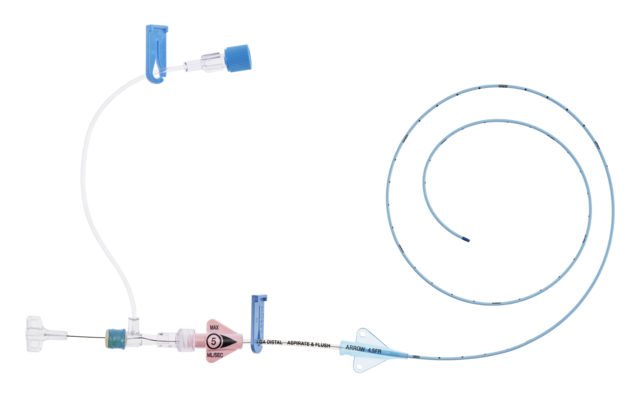

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Advance® One-Lumen PICC

OUS PI PICC KIT: 1-L 4.5FR X 55CM CG+

SKU / Article #: CDA-45541-HPK1A

Highlights

  • Antimicrobial: Arrowg+ard Blue Advance*
  • Antithrombogenic: Arrowg+ard Blue Advance*
  • Sharps Safety
  • CE Mark

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Advance® One-Lumen PICC
SKU / Article #: CDA-45541-HPK1A
Quantity Component Description
1 One Lumen TaperFree® Catheter with Arrowg+ard Blue Advance® Antimicrobial/Antithrombogenic Protection1: 4.5 Fr. (1.58 mm OD) x 55 cm, Pressure Injectable, T-Port Connector, Blue FlexTip® and Placement Wire
1 GlideThru™ Peel-Away Sheath: 4.5 Fr. x 2-3/4" (7 cm) Radiopaque over 4.5 Fr. Dilator
1 Spring-Wire Guide, Nitinol, Marked: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other) with Arrow Advancer
1 Injection Needle: Eclipse™2 25 Ga. x 1" (2.54 cm)
1 Safety Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 10 mL Luer-Lock
1 Syringe: 3 mL Luer-Lock
1 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Catheter Trimmer
1 Towel: 24" x 36" (61 cm x 91 cm)
1 Maximal Barrier Drape™ with two 13 cm (5") x 15 cm (6") fenestrations
1 Towel
1 Safety Scalpel: #11
1 Patient ID Card
1 Patient Information Booklet
2 Paper Tape Measure
1 Tourniquet
10 Gauze Pad: 2" x 2" (5 cm x 5 cm)
10 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®3 15.5 cm x 10 cm
1 Surgical Apparel: Impervious Gown
1 Dressing: STATLOCK®4 Catheter Stabilization Device
1 Surgical Apparel: Mask with Eye Shield
1 Surgical Apparel: Bouffant Cap
1 Surgical Apparel: Mask
1 Tape: Steri-Strip®3
1 HemoHopper® Fluid Receptacle
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of 3M Company.
4 A registered trademark of C. R. Bard, Inc.

Documents

  • N 04018 107c
  • Sz 00109 101c
  • Sz 00109 102c
  • A 06041 112b
  • A 06041 113b
  • K 03041 107c
  • M 05500 103b

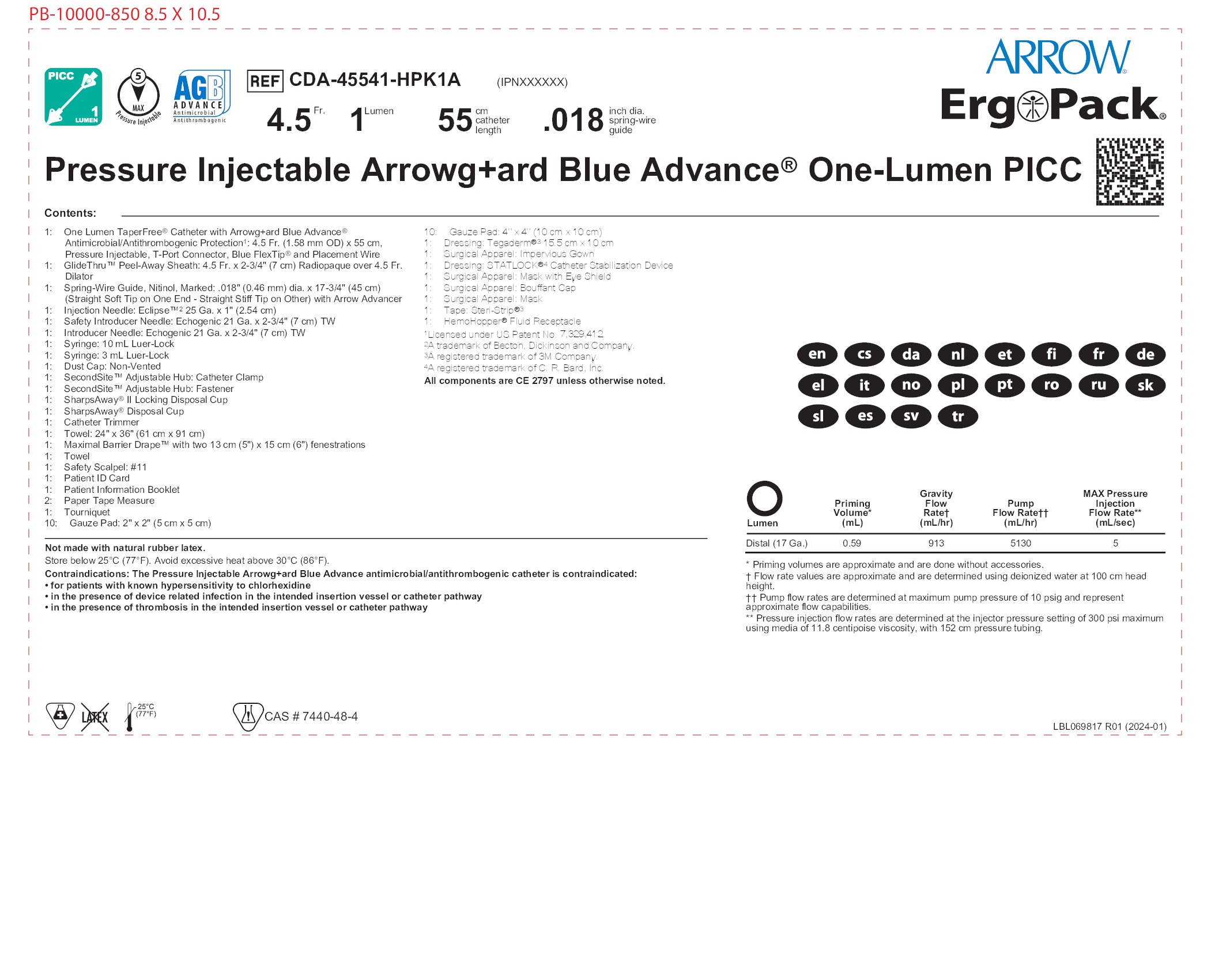

  • Lbl069817
  • Sz 00500 100a
  • Sz 00500 101a
Scroll to View More
  • N 04018 107c
  • Sz 00109 101c
  • Sz 00109 102c
  • A 06041 112b
  • A 06041 113b
  • K 03041 107c
  • M 05500 103b
  • Sz 00500 100a
  • Sz 00500 101a
Scroll to View More
  • Lbl069817
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
