CA-22123-F

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Arrowg+ard Blue® Large-Bore Three-Lumen CVC Kit for High Volume Infusions

CVC KIT: 3-LUMEN 12 FR X 16 CM

SKU / Article #: CA-22123-F

Highlights

  • Antimicrobial: Arrowg+ard Blue*

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Arrowg+ard Blue® Large-Bore Three-Lumen CVC Kit for High Volume Infusions
SKU / Article #: CA-22123-F
Quantity Component Description
1 Arrowg+ard Blue® Three-Lumen Catheter: 12 Fr. (4.1 mm OD) x 16 cm
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Injection Needle: 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Tissue Dilator: 12 Fr. (4.0 mm) x 14 cm
3 Dust Cap: Non-Vented
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle

Documents

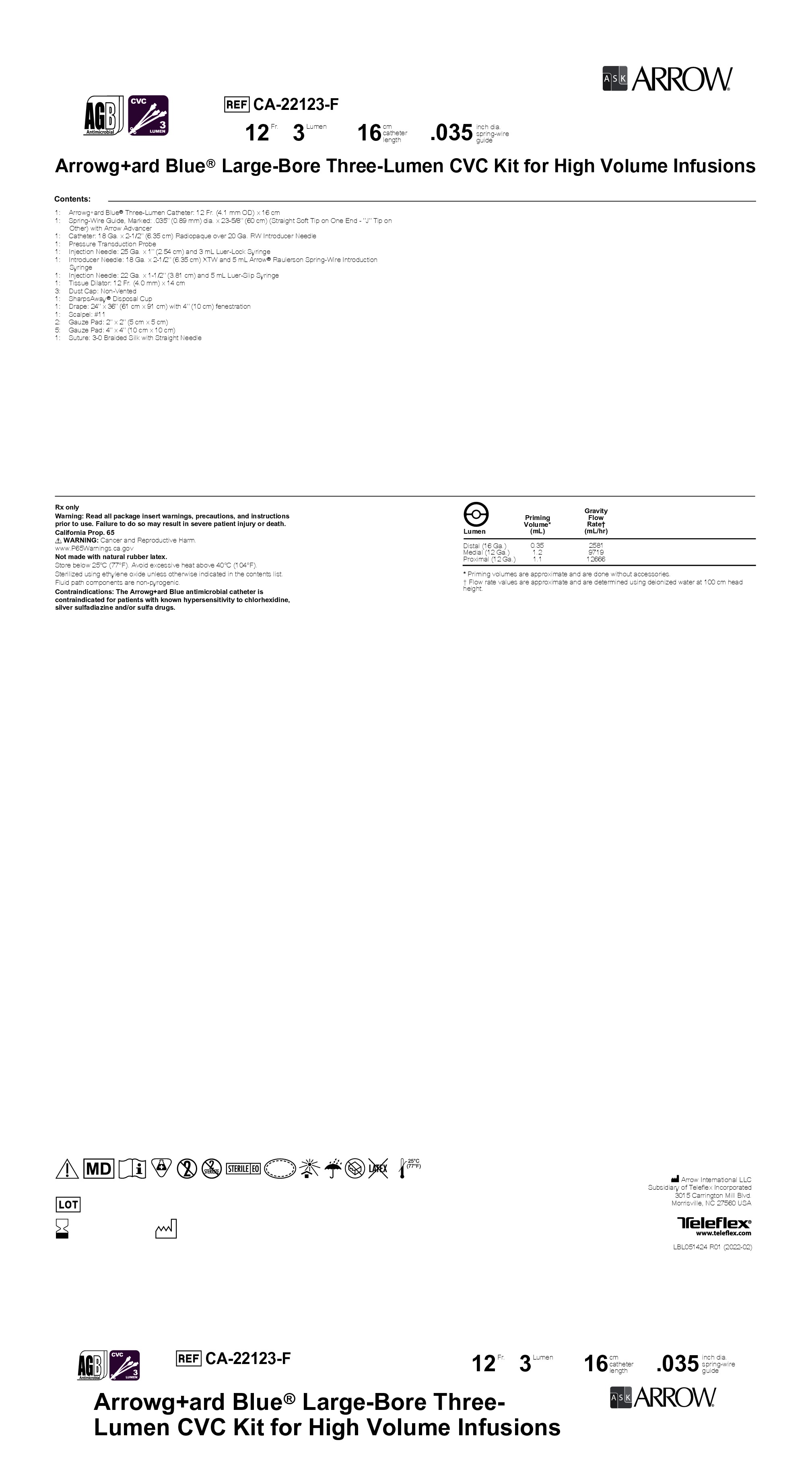

  • Lbl051424
  • S 25703 111a
Scroll to View More
  • Lbl051424
Scroll to View More
  • S 25703 111a
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
