Pressure Injectable Arrowg+ard Blue Plus® Three-Lumen CVC Kit

PI CVC KIT: 3L 7 FR X 8 IN (20 CM) AGB+

SKU / Article #: ASK-45703-PRJ

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Plus® Three-Lumen CVC Kit
SKU / Article #: ASK-45703-PRJ
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Three-Lumen Catheter: 7 Fr. (2.5 mm OD) x 20 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: Eclipse™2 23 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Injection Needle: Eclipse™2 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Syringe: 10 mL Luer-Lock
1 Tissue Dilator: 8.5 Fr. (2.8 mm) x 10.2 cm
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Maximal Barrier Drape™ with 4" fenestration
1 Towel
1 Needle Holder
1 Forceps
1 Safety Scalpel: #11
1 Checklist/CLIP Sheet
1 Sterile Procedure Sign

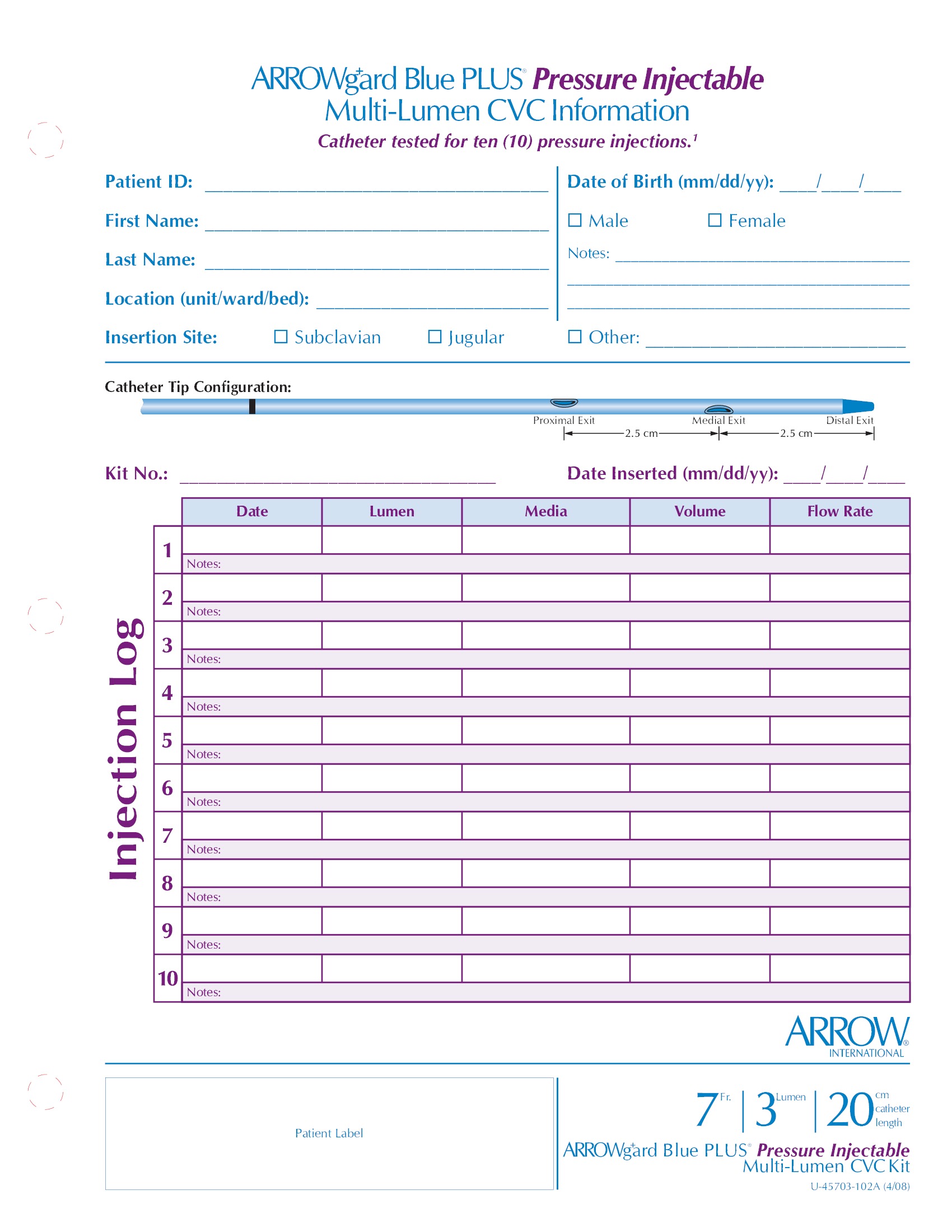

1 Flow Rate Information Card with Injection Log
2 Prep Sponge Swab
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Dressing: Tegaderm®3 10 cm x 12 cm
1 Suture: 3-0 Silk with Curved Needle
1 Tray: Prep
1 HemoHopper® Fluid Receptacle
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of 3M Company.

Documents

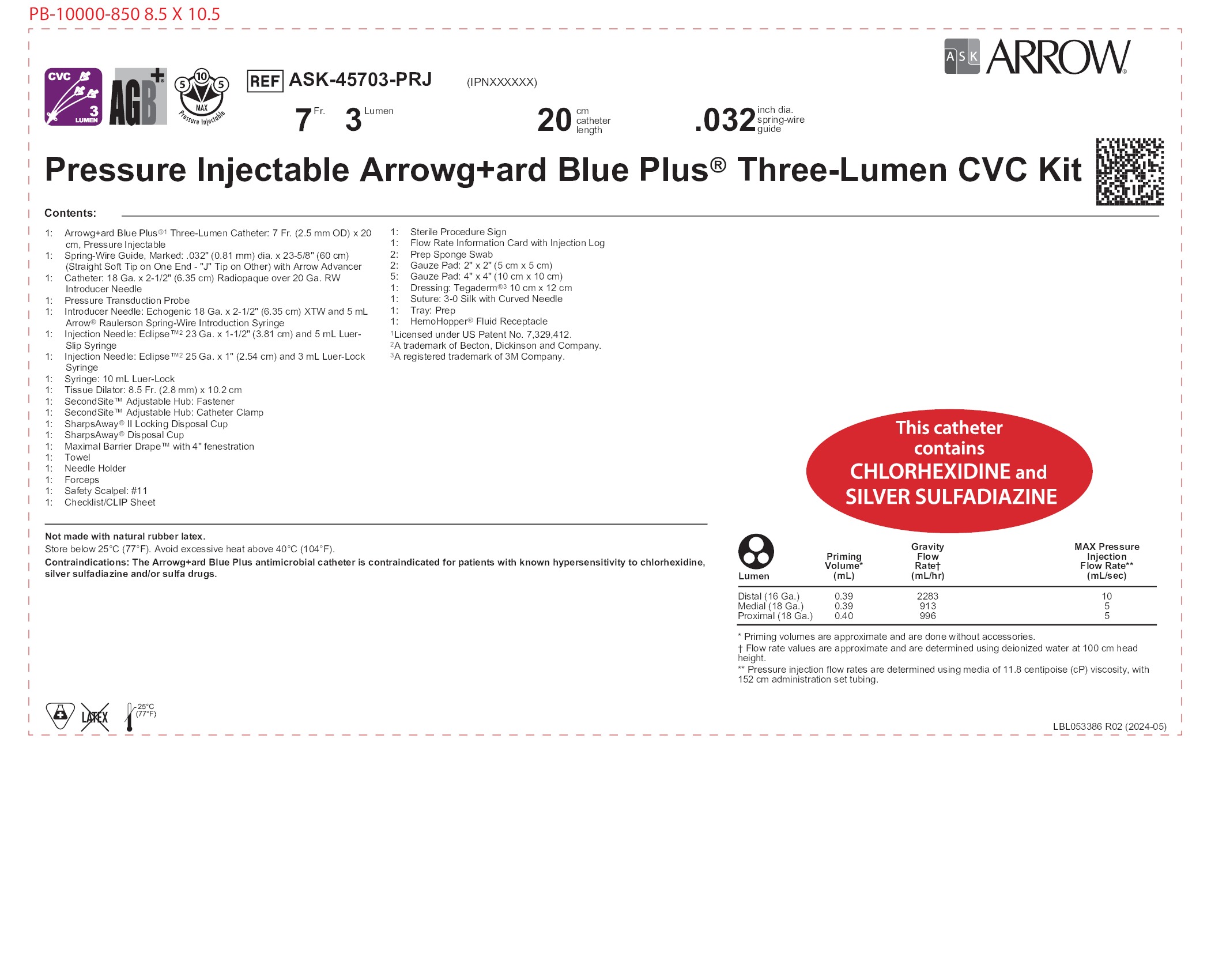

  • Lbl053386
  • S 45703 128a
  • M 05500 102a
  • E 05100 100a
  • U 45703 102a
Scroll to View More
  • Lbl053386
Scroll to View More
  • S 45703 128a
  • M 05500 102a
  • E 05100 100a
  • U 45703 102a
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
