ASK-42854-PI

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Plus® Four-Lumen CVC Kit

PI CVC KIT: 4L 8.5 FR X 16 CM AGB+

SKU / Article #: ASK-42854-PI

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Plus® Four-Lumen CVC Kit
SKU / Article #: ASK-42854-PI
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Four-Lumen Catheter: 8.5 Fr. (3.0 mm OD) x 16 cm, Pressure Injectable
1 Spring-Wire Guide, Nitinol, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow® GlideWheel™ Wire Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: Eclipse™2 25 Ga. x 1-1/2" (3.81 cm)
1 Injection Needle: Eclipse™2 23 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 10 Fr. (3.5 mm) x 10.2 cm
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Towel
1 Safety Scalpel: #11
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Transducer Cover with Gel and Rubber Bands
4 Valve: MicroCLAVE™3 Neutral Displacement Connector
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A trademark of ICU Medical, Inc.

Documents

  • E 05100 100a
  • K 45703 118a

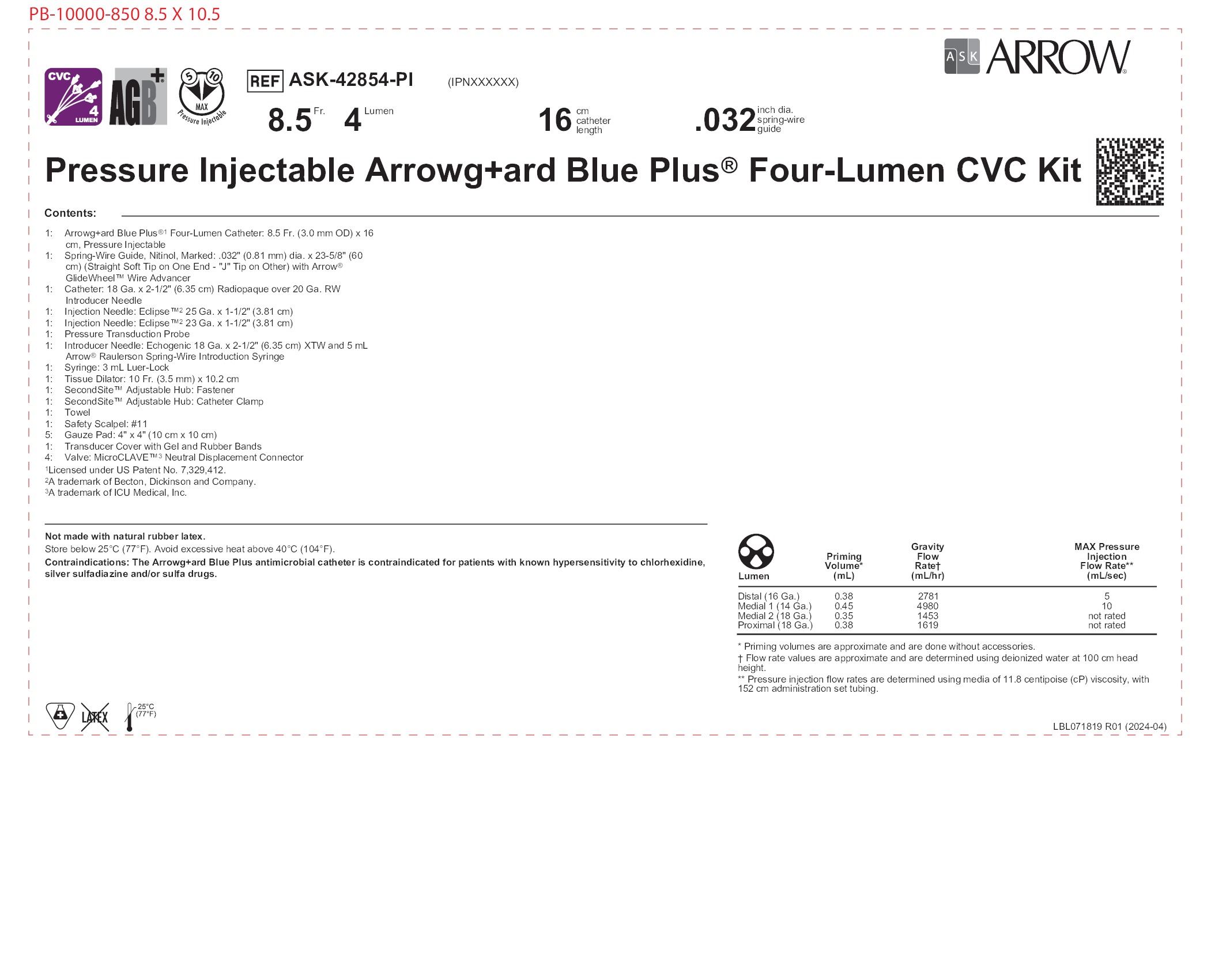

  • Lbl071819
  • S 45703 128a
Scroll to View More
  • E 05100 100a
  • K 45703 118a
  • S 45703 128a
Scroll to View More
  • Lbl071819
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
