ASK-42802-AKP1A

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Arrowg+ard Blue Plus® Two-Lumen CVC

MULTILUMEN PI CVC KIT: 2L 8 FR X 16 CM

SKU / Article #: ASK-42802-AKP1A

Highlights

  • Antimicrobial: Arrowg+ard Blue Plus*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 5

Pressure Injectable Arrowg+ard Blue Plus® Two-Lumen CVC
SKU / Article #: ASK-42802-AKP1A
Quantity Component Description
1 Arrowg+ard Blue Plus®1 Two-Lumen Catheter: 8 Fr. (2.8 mm OD) x 16 cm, Pressure Injectable
1 Spring-Wire Guide, Marked: .032" (0.81 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: SafetyGlide™2 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: Echogenic 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: SafetyGlide™2 23 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 9 Fr. (3.0 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®3 One-Step Solution with Hi-Lite Orange™ Tint
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
1 Sterile Procedure Sign
1 Central Line Insertion Checklist
1 Medication Label: 1% Lidocaine

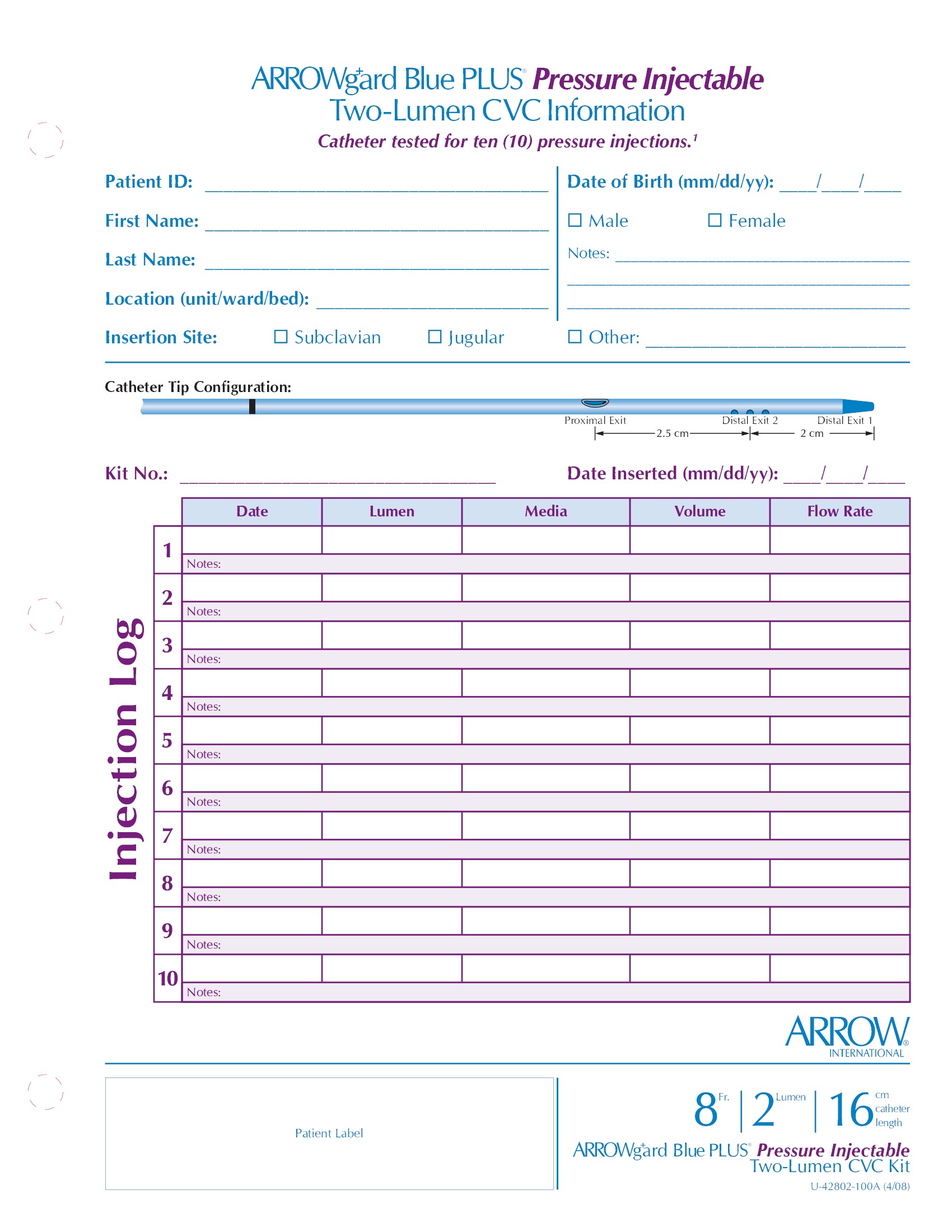

1 Flow Rate Information Card with Injection Log
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 Tubing±: 20" (50 cm) Extension
1 Licensed under US Patent No. 7,329,412.
2 A trademark of Becton, Dickinson and Company.
3 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

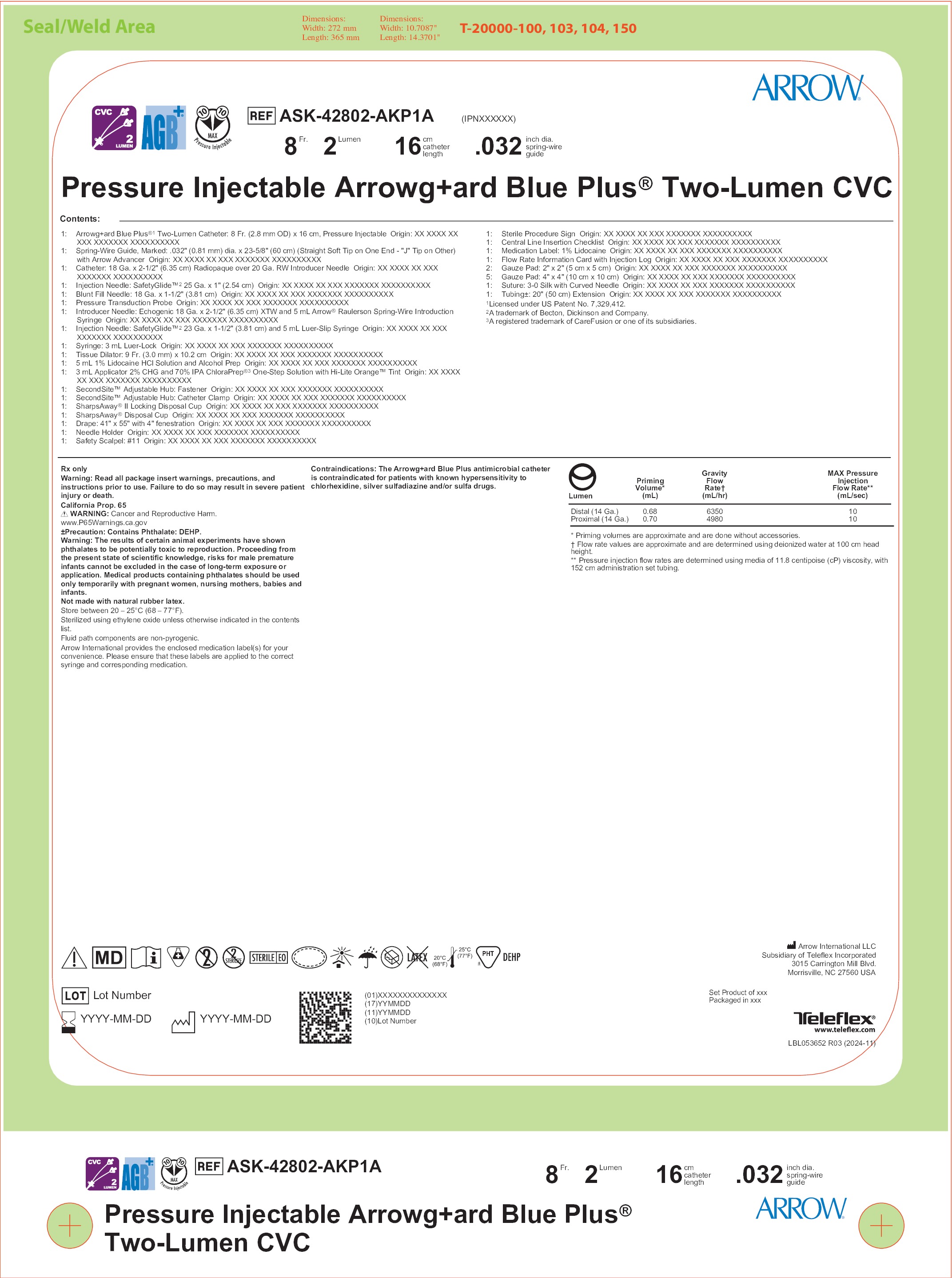

  • Lbl053652
  • S 45703 128a
  • K 01552 112a
  • U 42802 100a
Scroll to View More
  • K 07800 121
  • S 45703 128a
  • K 01552 112a
  • U 42802 100a
Scroll to View More
  • Lbl053652
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
