Pressure Injectable Two-Lumen PICC with 130 cm Wire

PICC KIT: 2-L 5 FR X 19-5/8" (50 CM)

SKU / Article #: ASK-05052-CHM

Considerations

  • Not made with natural rubber latex.

Sales Quantity/Case: 5

Pressure Injectable Two-Lumen PICC with 130 cm Wire
SKU / Article #: ASK-05052-CHM
Quantity Component Description
1 Two Lumen Catheter: 5 Fr. (1.81 mm OD) x 50 cm, Pressure Injectable, Blue FlexTip®
1 GlideThru™ Peel-Away Sheath: 5 Fr. x 4" (10 cm) Radiopaque over 5 Fr. Dilator
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - Straight Stiff Tip on Other)
1 Spring-Wire Guide, Marked: .018" (0.46 mm) dia. x 51-3/16" (130 cm)(Straight Soft Tip on One End - Straight Stiff Tip on Other)
1 Introducer Needle: Echogenic 21 Ga. x 2-3/4" (7 cm) TW
1 Syringe: 5 mL Luer-Slip
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 Patient ID Card
1 Chart Sticker
1 Patient Information Booklet
1 Paper Tape Measure
1 Dressing: STATLOCK®1 PICC Plus Catheter Stabilization Device
1 A registered trademark of C. R. Bard, Inc.

Documents

  • A 06041 105b
  • K 01552 117b

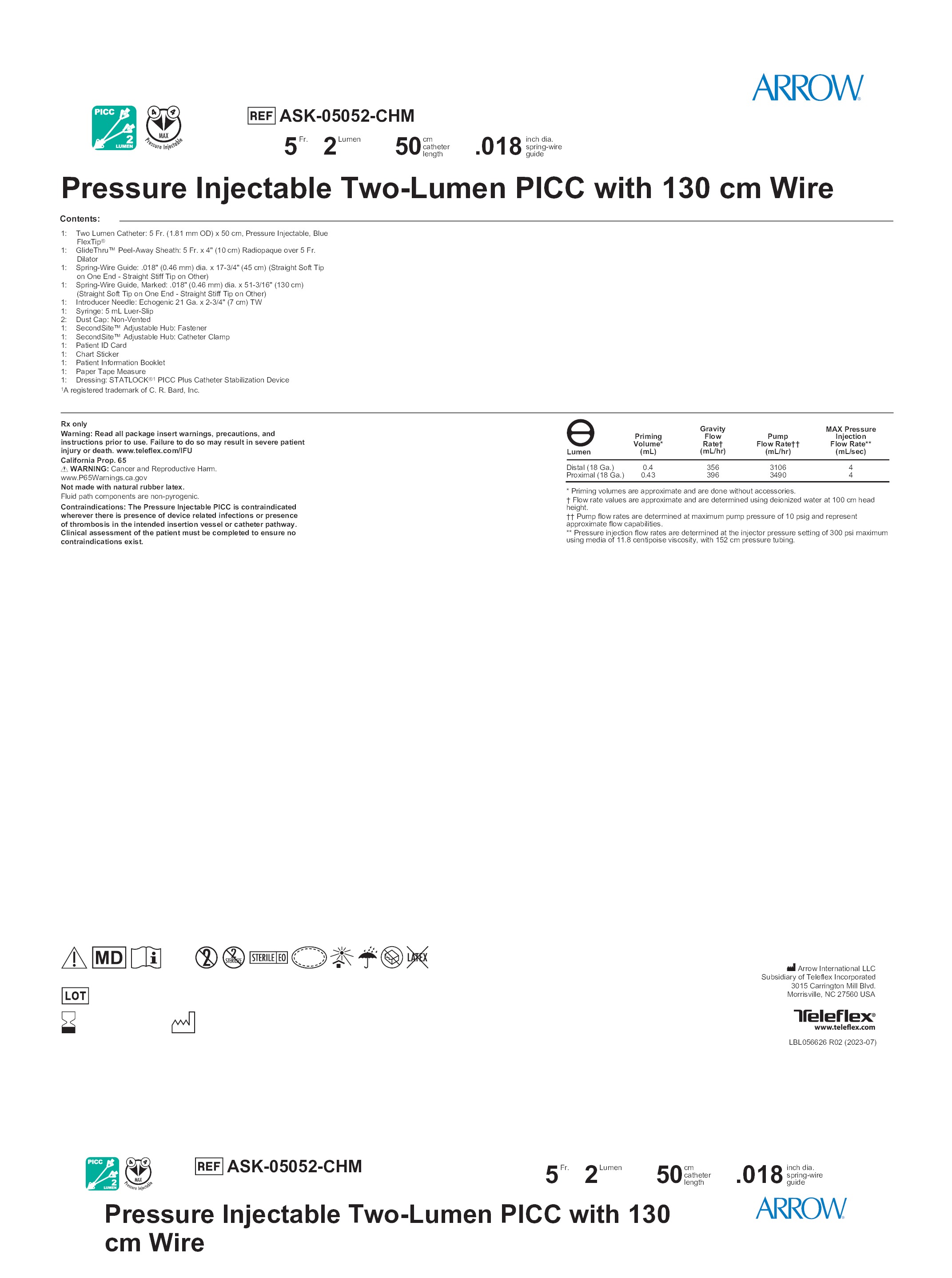

  • Lbl056626
Scroll to View More
  • A 06041 105b
  • K 01552 117b
Scroll to View More
  • Lbl056626
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
