AK-24402

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Small Vein Arrowg+ard Blue® Two-Lumen CVC

CVC KIT: 2-LUMEN 4 FR X 13 CM

SKU / Article #: AK-24402

Highlights

  • Antimicrobial: Arrowg+ard Blue*

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Small Vein Arrowg+ard Blue® Two-Lumen CVC
SKU / Article #: AK-24402
Quantity Component Description
1 Arrowg+ard Blue® Two-Lumen Catheter: 4 Fr. (1.5 mm OD) x 13 cm
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 17-3/4" (45 cm) PTFE-Coated (Straight Soft Tip on One End - "J" Tip on Other)
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle with 5 mL Luer-Slip Syringe
1 Injection Needle: 25 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 5 Fr. (1.8 mm) x 7.5 cm
1 Tissue Dilator: 5 Fr. (1.8 mm) x 4.1 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener
1 SharpsAway® Disposal Cup
1 Drape: 18" x 26" (46 cm x 66 cm) with 3" (7.6 cm) fenestration
1 Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

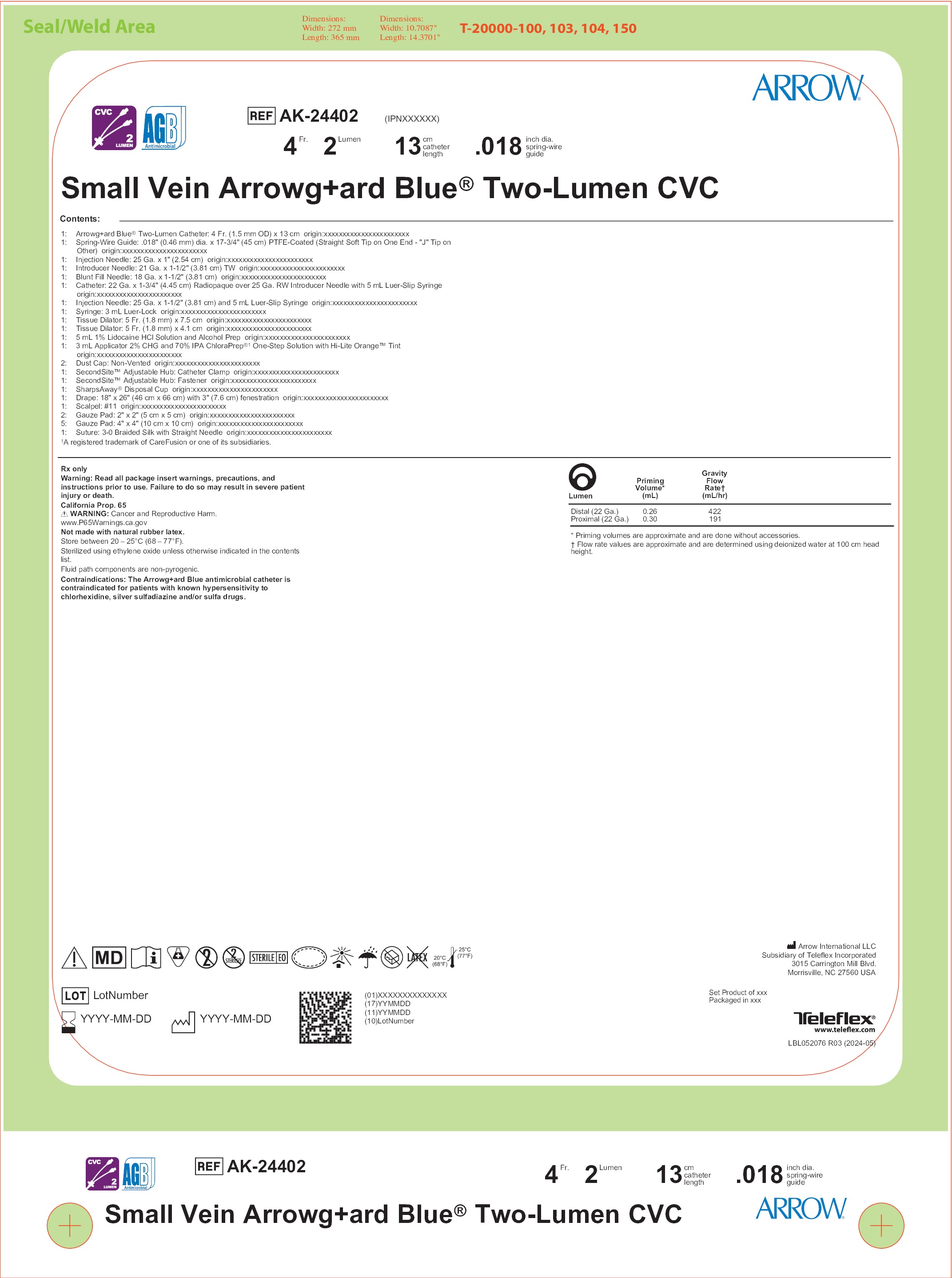

  • Lbl052076
  • S 25703 111a
Scroll to View More
  • K 07800 121
  • S 25703 111a
Scroll to View More
  • Lbl052076
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
