AK-22142-F

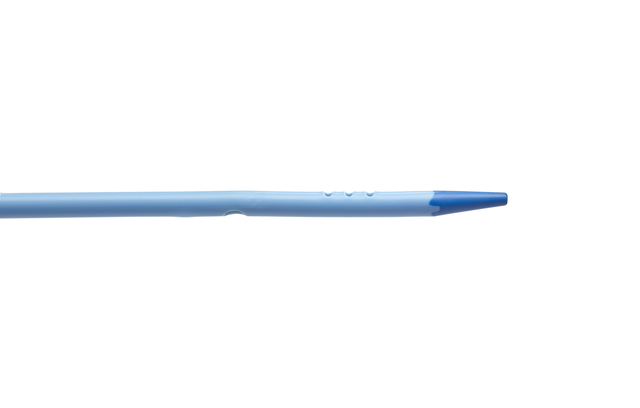

  • Ia arrow acutehdc tip b
  • Va hemo agb straight 2l nopi 14fr 20cm

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Arrowg+ard Blue® Two-Lumen Hemodialysis Catheterization for High Volume Infusions

HEMODIALYSIS KIT: 2-LUMEN 14 FR X 15 CM

SKU / Article #: AK-22142-F

Highlights

  • Antimicrobial: Arrowg+ard Blue*

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Arrowg+ard Blue® Two-Lumen Hemodialysis Catheterization for High Volume Infusions
SKU / Article #: AK-22142-F
Quantity Component Description
1 Two-Lumen Catheter: 14 Fr. (4.72 mm OD) x 15 cm Radiopaque Polyurethane with Blue FlexTip®, Arrowg+ard® Antimicrobial Surface Treatment, Extension Line Clamps
1 Spring-Wire Guide, Marked: .038" (0.97 mm) dia. x 27-1/2" (70 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 14 Fr. (4.7 mm) x 14 cm
1 Tissue Dilator: 16 Fr. (5.3 mm) x 11.4 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
2 Dust Cap: Non-Vented
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Needle Holder
1 Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121
  • K 22142 103b

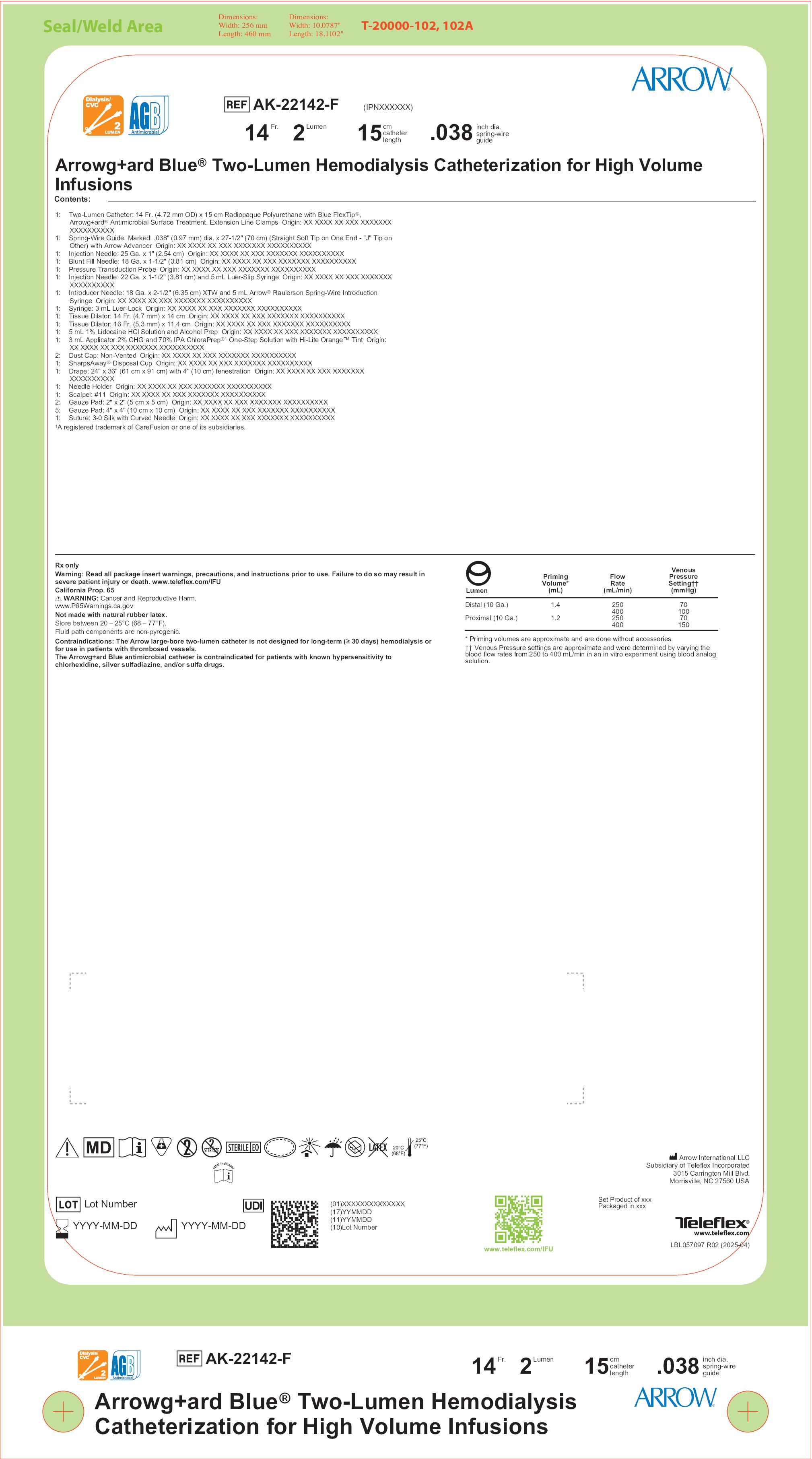

  • Lbl057097
Scroll to View More
  • K 07800 121
  • K 22142 103b
Scroll to View More
  • Lbl057097
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
