Arrowg+ard Blue® MAC™ Two-Lumen Central Venous Access for use with 7 - 8 Fr. Catheters

MULTI-LUMEN/PSI KIT

SKU / Article #: AK-21242-CDC

Highlights

  • Antimicrobial: Arrowg+ard Blue*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 10

Arrowg+ard Blue® MAC™ Two-Lumen Central Venous Access for use with 7 - 8 Fr. Catheters
SKU / Article #: AK-21242-CDC
Quantity Component Description

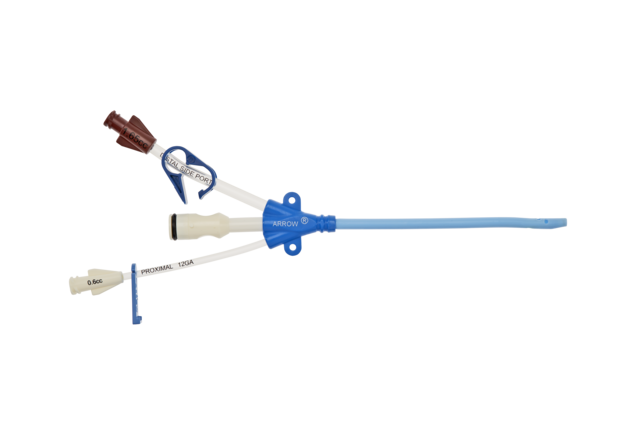

1 Two-Lumen Central Venous Access Device: 4-1/2" (11.5 cm) Radiopaque Polyurethane with 9 Fr. Distal Lumen, Arrowg+ard® Antimicrobial Surface Treatment1, Integral Hemostasis Valve, Extension Line Clamps
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange™ Tint
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with Tuohy-Borst Adapter, Sterile Tape
1 Dust Cap: Vented
2 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 Suture: 3-0 Braided Silk with Straight Needle
1 Tubing±: 20" (50 cm) Extension
1 Licensed under US Patent No. 6,706,024.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

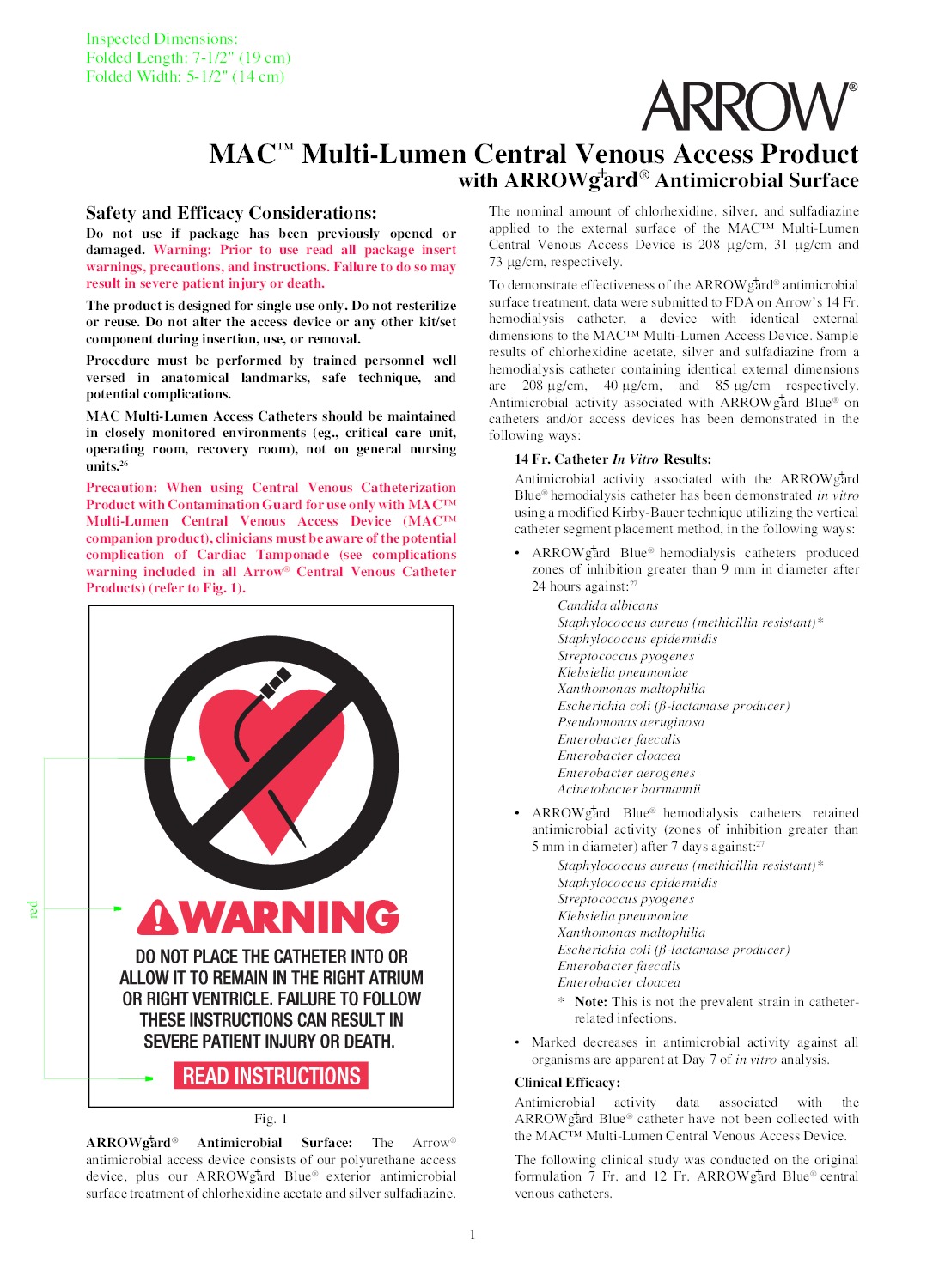

  • K 21243 100e

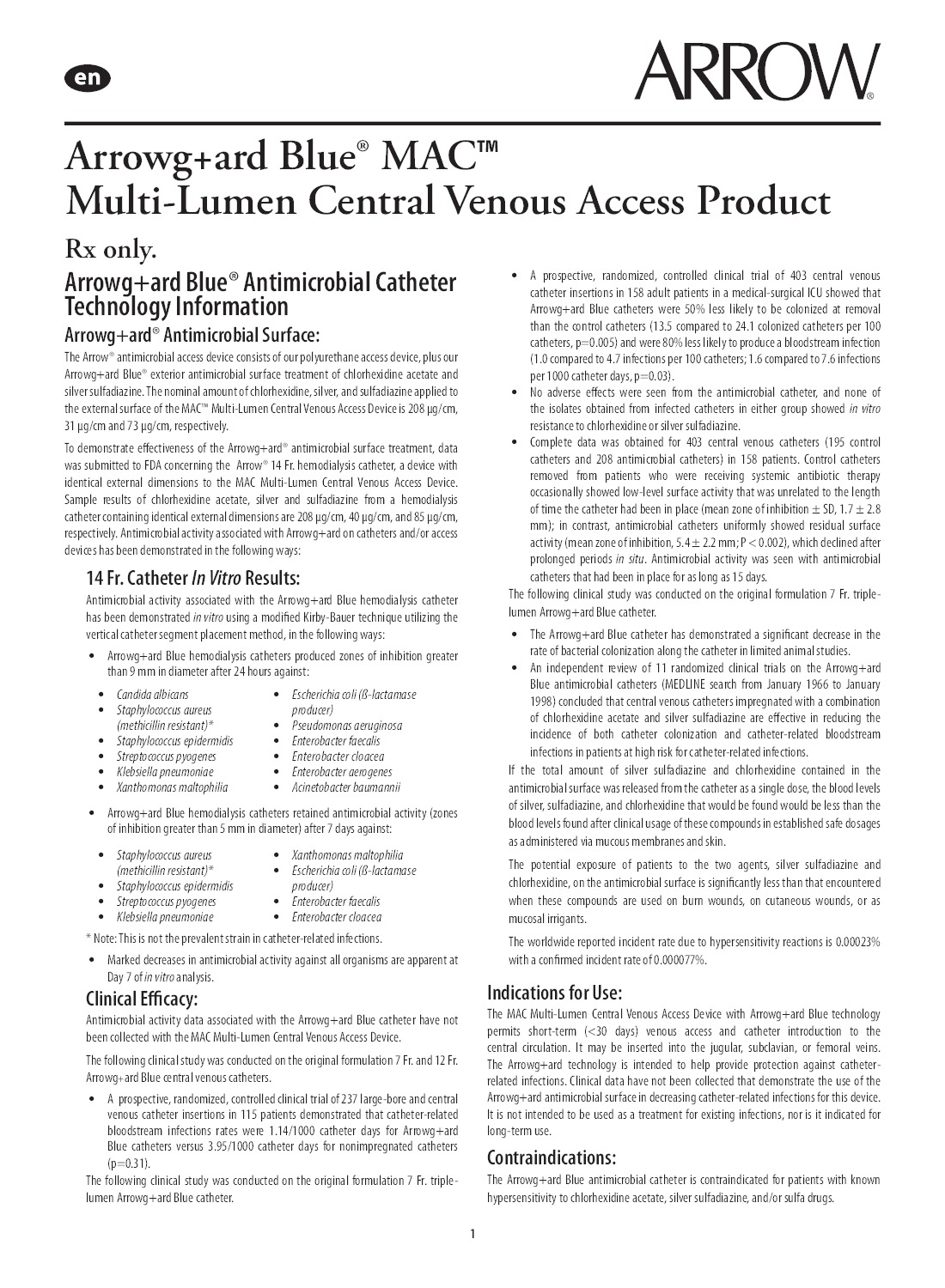

  • K 21142 101d

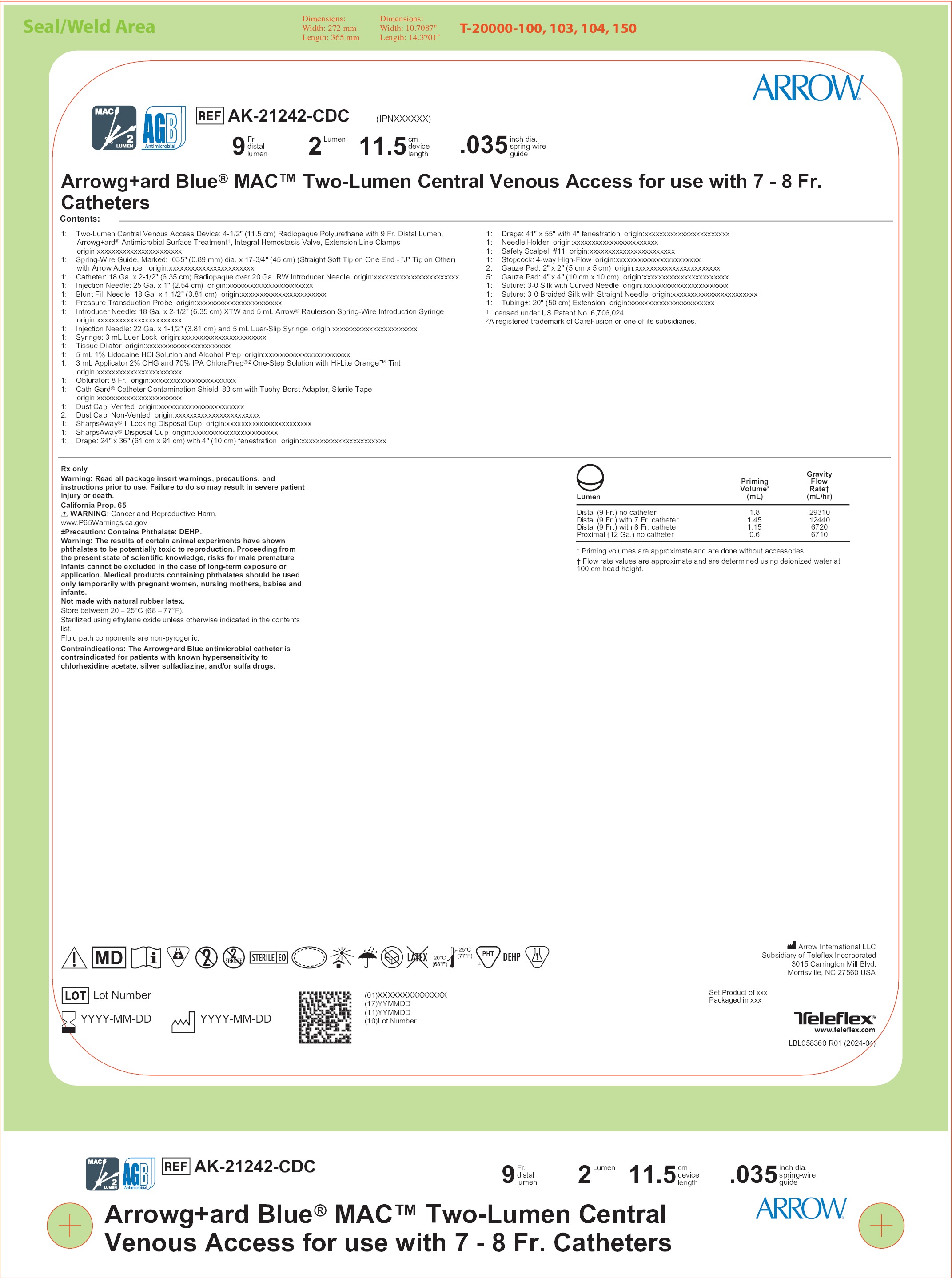

  • Lbl058360
Scroll to View More
  • K 07800 121
  • K 21243 100e
  • K 21142 101d
Scroll to View More
  • Lbl058360
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
