AK-21142-SK

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Arrowg+ard Blue® MAC™ Two-Lumen Central Venous Access for use with 7 - 8 Fr. Catheters

MULTI-LUMEN/PSI KIT

SKU / Article #: AK-21142-SK

Highlights

  • Antimicrobial: Arrowg+ard Blue*
  • Sharps Safety

Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 10

Arrowg+ard Blue® MAC™ Two-Lumen Central Venous Access for use with 7 - 8 Fr. Catheters
SKU / Article #: AK-21142-SK
Quantity Component Description
1 Two-Lumen Central Venous Access Device: 4" (10 cm) Radiopaque Polyurethane with 9 Fr. Distal Lumen, Arrowg+ard® Antimicrobial Surface Treatment1, Integral Hemostasis Valve, Extension Line Clamps
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 9 Fr. (3.0 mm) x 20.7 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange™ Tint
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with Tuohy-Borst Adapter, Sterile Tape
1 Dust Cap: Vented
2 Dust Cap: Non-Vented
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 41" x 50" with 4" fenestration, with adhesive
1 Safety Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 Tubing±: 20" (50 cm) Extension
1 Licensed under US Patent No. 6,706,024.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121
  • K 21142 101d

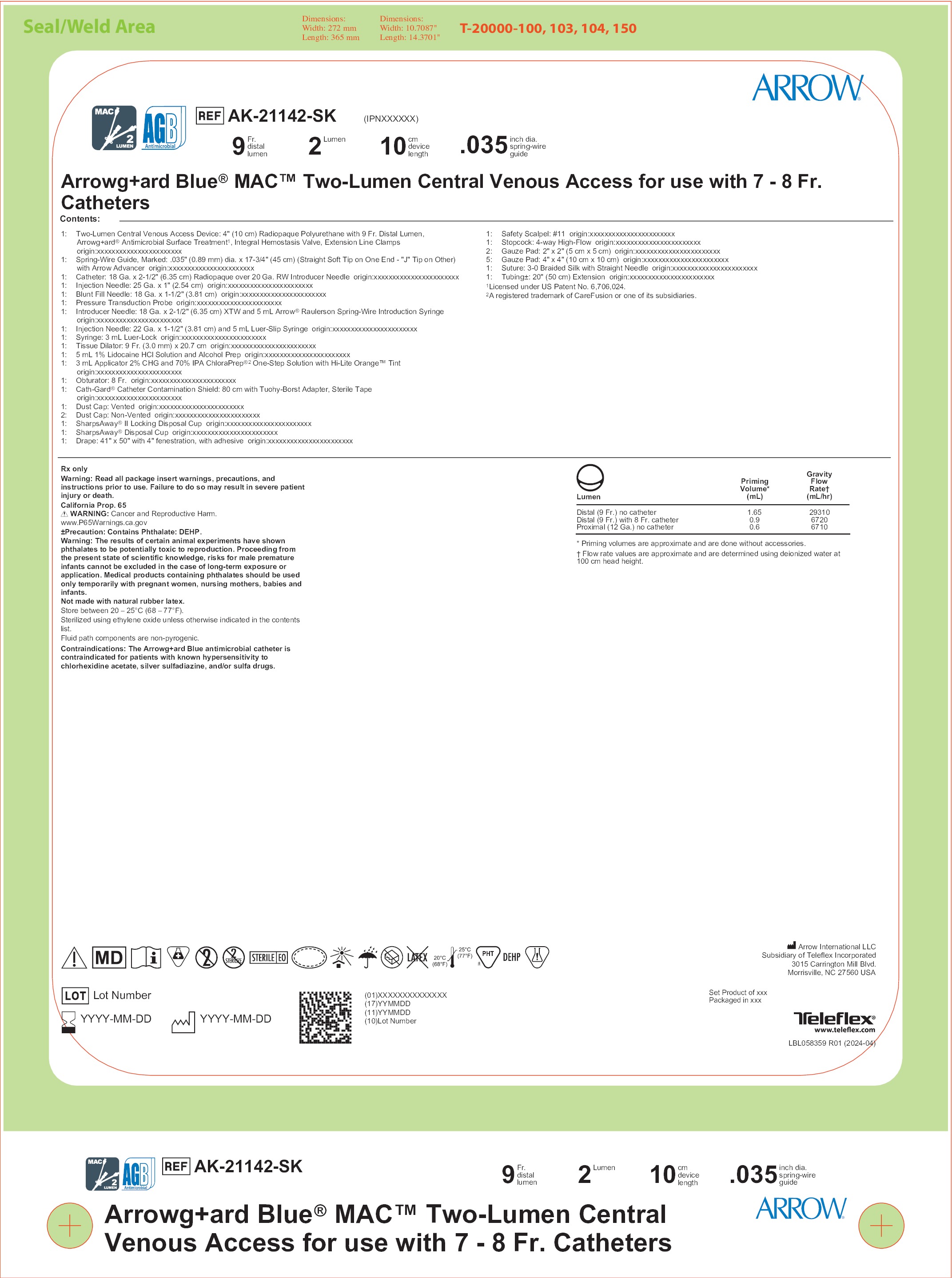

  • Lbl058359
  • K 21243 100e
Scroll to View More
  • K 07800 121
  • K 21142 101d
  • K 21243 100e
Scroll to View More
  • Lbl058359
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
