Two-Lumen CVC for Femoral Vein Insertion

CVC KIT: 2-LUMEN 4 FR X 30 CM

SKU / Article #: AK-16402

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Two-Lumen CVC for Femoral Vein Insertion
SKU / Article #: AK-16402
Quantity Component Description
1 Two-Lumen Catheter: 4 Fr. (1.5 mm OD) x 30 cm
1 Spring-Wire Guide: .018" (0.46 mm) dia. x 26-3/4" (68 cm) (Straight Soft Tip on One End - "J" Tip on Other)
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Introducer Needle: 21 Ga. x 1-1/2" (3.81 cm) TW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Catheter: 22 Ga. x 1-3/4" (4.45 cm) Radiopaque over 25 Ga. RW Introducer Needle with 5 mL Luer-Slip Syringe
1 Injection Needle: 25 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 5 Fr. (1.8 mm) x 7.5 cm
1 Tissue Dilator: 5 Fr. (1.8 mm) x 4.1 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
2 Dust Cap: Non-Vented
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SecondSite™ Adjustable Hub: Fastener
1 SharpsAway® Disposal Cup
1 Drape: 18" x 26" (46 cm x 66 cm) with 3" (7.6 cm) fenestration
1 Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

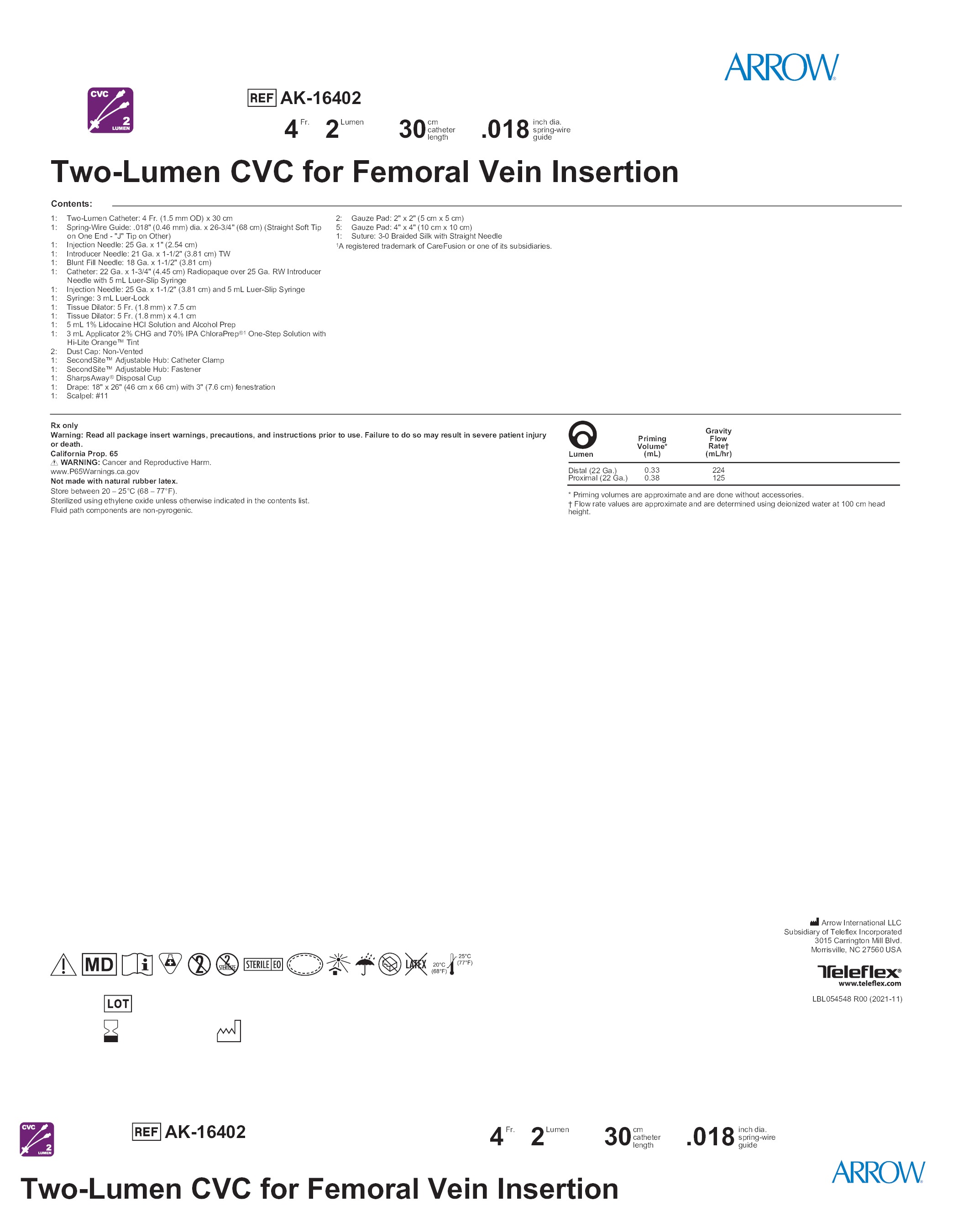

  • Lbl054548
  • S 15703 111b
Scroll to View More
  • K 07800 121
  • S 15703 111b
Scroll to View More
  • Lbl054548
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
