AK-12123-PCDC
  • Va hem 3l close hubs
  • Va cvc hemo 3l unp pi 12fr 25cm

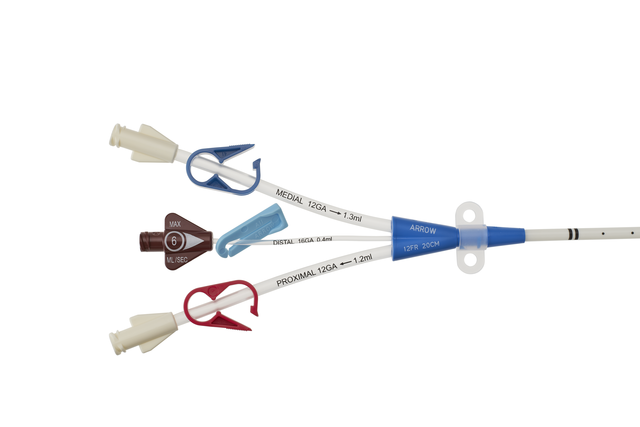

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Pressure Injectable Three-Lumen Hemodialysis Catheterization for High Volume Infusions

AHDC KIT: 3-L 12 FR X 16 CM

SKU / Article #: AK-12123-PCDC

Highlights

  • Sharps Safety

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Pressure Injectable Three-Lumen Hemodialysis Catheterization for High Volume Infusions
SKU / Article #: AK-12123-PCDC
Quantity Component Description
1 Three-Lumen Catheter: 12 Fr. (4.06 mm OD) x 16 cm Pressure Injectable Radiopaque Polyurethane with Blue FlexTip®, Extension Line Clamps
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 23-5/8" (60 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: SafetyGlide™1 25 Ga. x 1" (2.54 cm)
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: SafetyGlide™1 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 Tissue Dilator: 12 Fr. (4.0 mm) x 14 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®2 One-Step Solution with Hi-Lite Orange™ Tint
1 SharpsAway® II Locking Disposal Cup
1 SharpsAway® Disposal Cup
1 Drape: 41" x 55" with 4" fenestration
1 Needle Holder
1 Safety Scalpel: #11
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Silk with Curved Needle
1 A trademark of Becton, Dickinson and Company.
2 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121
  • K 15123 106b

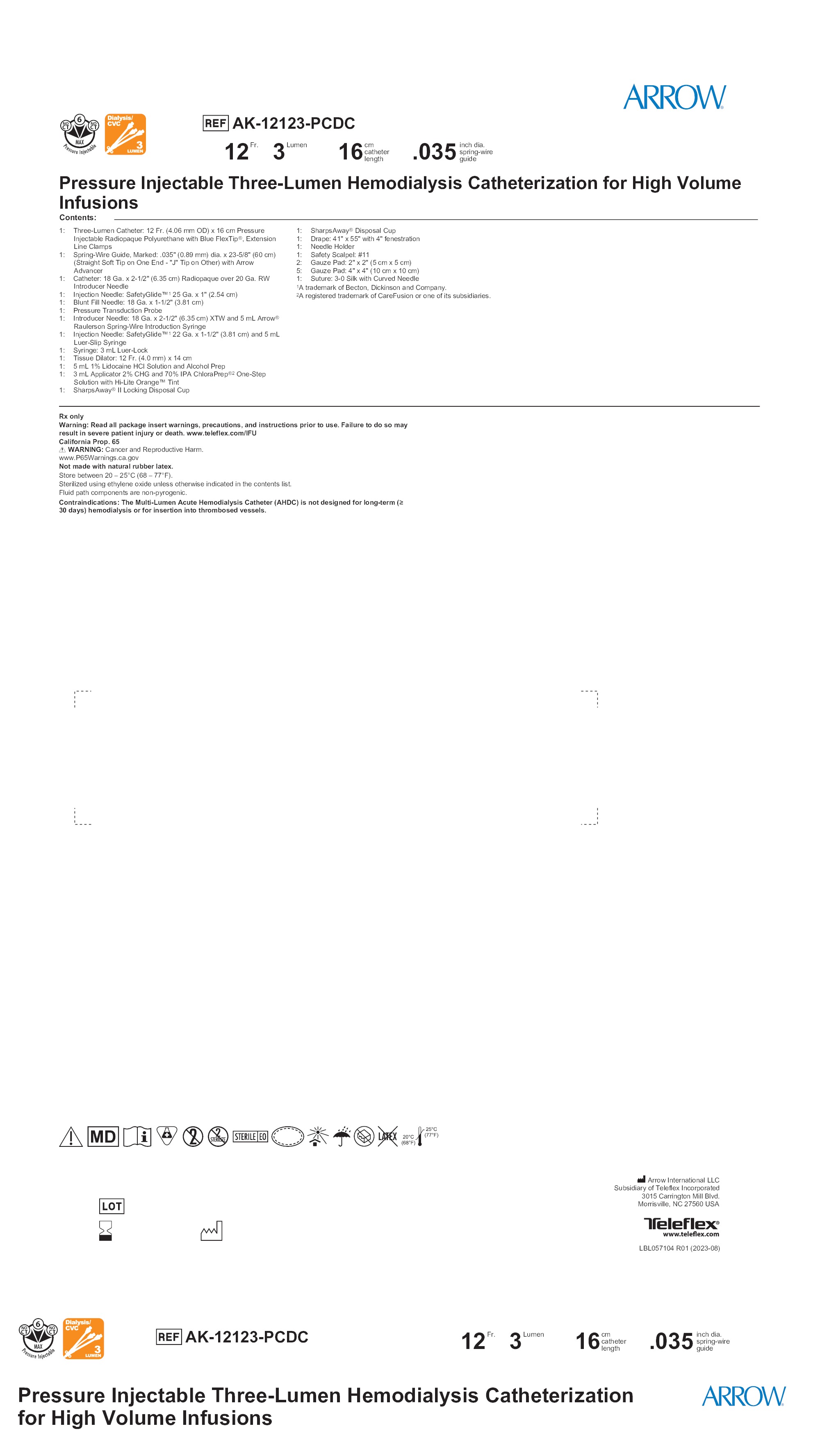

  • Lbl057104
  • K 01552 112a
Scroll to View More
  • K 07800 121
  • K 15123 106b
  • K 01552 112a
Scroll to View More
  • Lbl057104
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
