AK-09903-A

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

PSI for use with 7.5 - 8 Fr. Catheters

PSI KIT: 9 FR

SKU / Article #: AK-09903-A

Considerations

  • Not made with natural rubber latex.
  • ±Precaution: Contains Phthalate: DEHP

Sales Quantity/Case: 10

PSI for use with 7.5 - 8 Fr. Catheters
SKU / Article #: AK-09903-A
Quantity Component Description

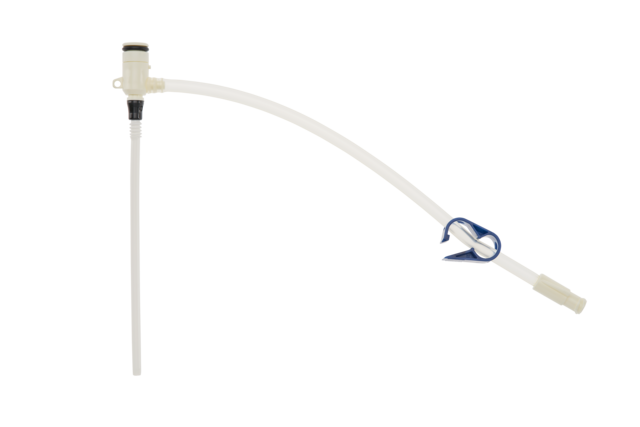

1 Arrow-Flex® Sheath: 9 Fr. (2.9 mm tip ID) x 10 cm and Tissue Dilator
1 Spring-Wire Guide, Marked: .035" (0.89 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Pressure Transduction Probe
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 25 Ga. x 1" (2.54 cm) and 3 mL Luer-Lock Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
1 Obturator: 8 Fr.
1 Suture: 3-0 Braided Silk with Straight Needle
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock™ Adapter
1 Dust Cap: Non-Vented
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm) with 4" (10 cm) fenestration
1 Drape: 24" x 36" (61 cm x 91 cm)
1 Scalpel: #11
1 Stopcock: 4-way High-Flow
7 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Tubing±: 20" (50 cm) Extension
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 09803 113a

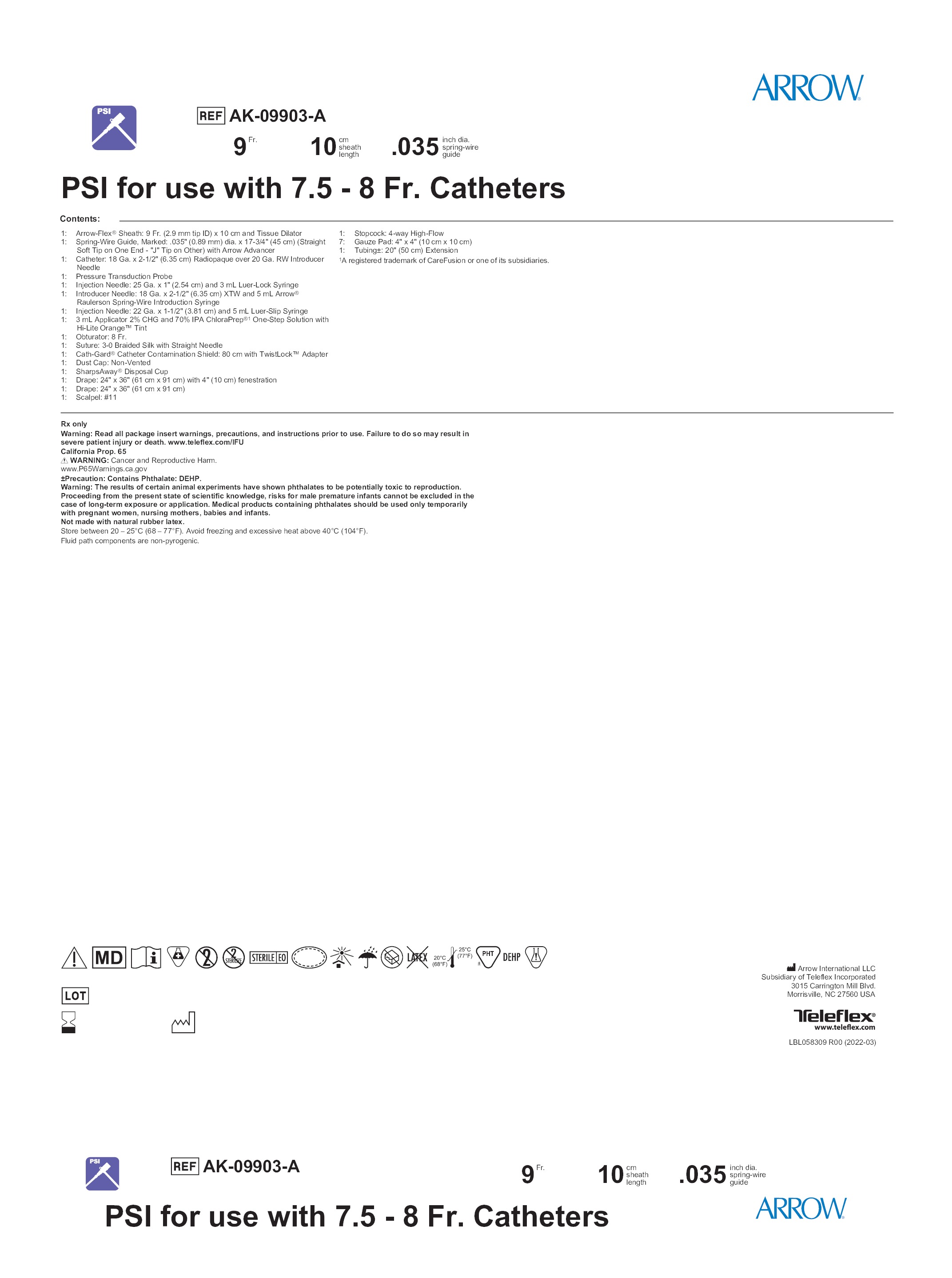

  • Lbl058309
  • P 02000 100
Scroll to View More
  • K 09803 113a
Scroll to View More
  • Lbl058309
  • P 02000 100
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
