AK-04550-S

Representative photo(s): actual product specifications may vary from that shown in the photo

Save Page as PDF Print this Page

Vessel Catheterization

VESSEL CATH KIT: 20GA X 5"

SKU / Article #: AK-04550-S

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 5

Vessel Catheterization
SKU / Article #: AK-04550-S
Quantity Component Description
1 One-Lumen Catheter: 20 Ga. (1.2 mm OD) x 12 cm
1 Spring-Wire Guide: .025" (0.64 mm) dia. x 13-3/4" (35 cm) (Straight Soft Tip on One End - "J" Tip on Other)
1 Catheter: 20 Ga. x 1-3/4" (4.45 cm) Radiopaque over 22 Ga. TW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Injection Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: 20 Ga. x 2" (5.08 cm) XTW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Syringe: 3 mL Luer-Lock
1 Syringe: 5 mL Luer-Slip
1 Tissue Dilator: 4 Fr. (1.35 mm) x 7.6 cm
1 Tissue Dilator: 4 Fr. (1.35 mm) x 4.1 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
1 Drape: 18" x 26" (46 cm x 66 cm) with 3" (7.6 cm) fenestration
1 Scalpel: #11
3 Gauze Pad: 2" x 2" (5 cm x 5 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

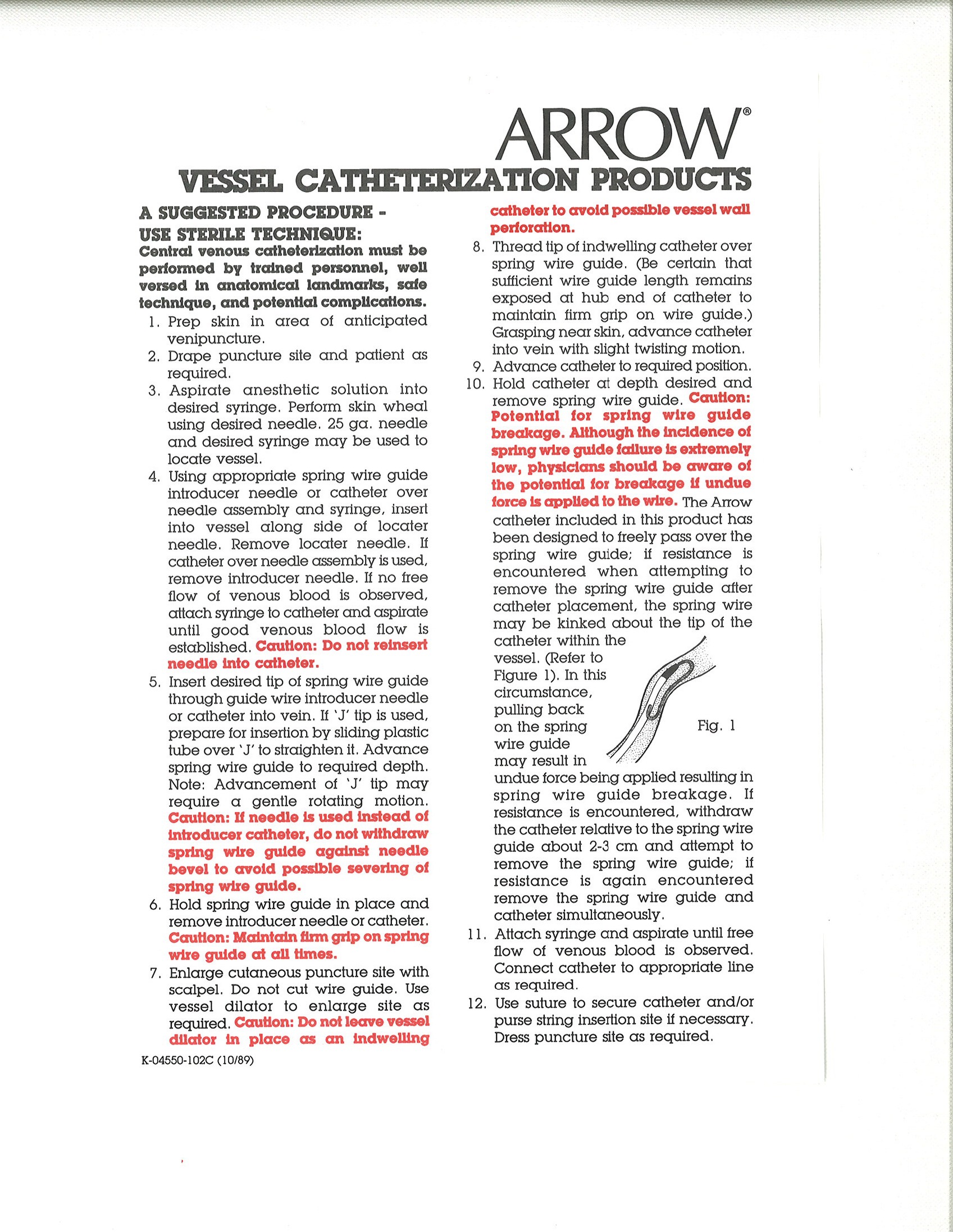

  • K 04550 102c

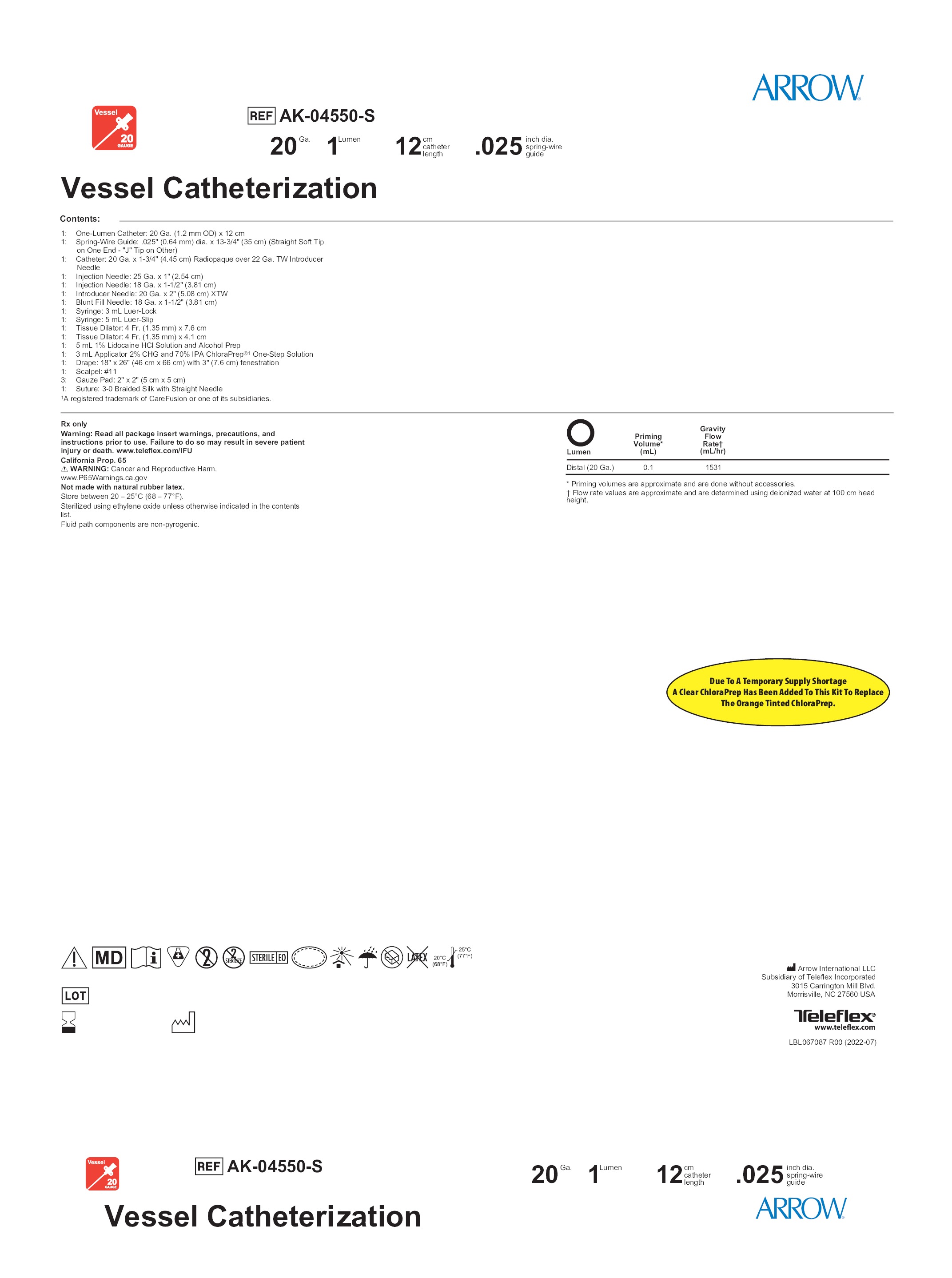

  • Lbl067087
Scroll to View More
  • K 07800 121
  • K 04550 102c
Scroll to View More
  • Lbl067087
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
