One-Lumen CVC

CVC KIT: 16 GA X 8IN

SKU / Article #: AK-04210

Considerations

  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 10

One-Lumen CVC
SKU / Article #: AK-04210
Quantity Component Description
1 One-Lumen Catheter: 16 Ga. (1.8 mm OD) x 20 cm
1 Spring-Wire Guide: .032" (0.81 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other)
1 Catheter: 18 Ga. x 2-1/2" (6.35 cm) Radiopaque over 20 Ga. RW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm)
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) XTW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
2 Syringe: 5 mL Luer-Slip
1 Tissue Dilator: 7 Fr. (2.3 mm) x 10.2 cm
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange™ Tint
1 SecondSite™ Adjustable Hub: Fastener
1 SecondSite™ Adjustable Hub: Catheter Clamp
1 SharpsAway® Disposal Cup
1 Drape: 18" x 26" (46 cm x 66 cm) with 3" (7.6 cm) fenestration
1 Scalpel: #11
3 Gauze Pad: 2" x 2" (5 cm x 5 cm)
4 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121

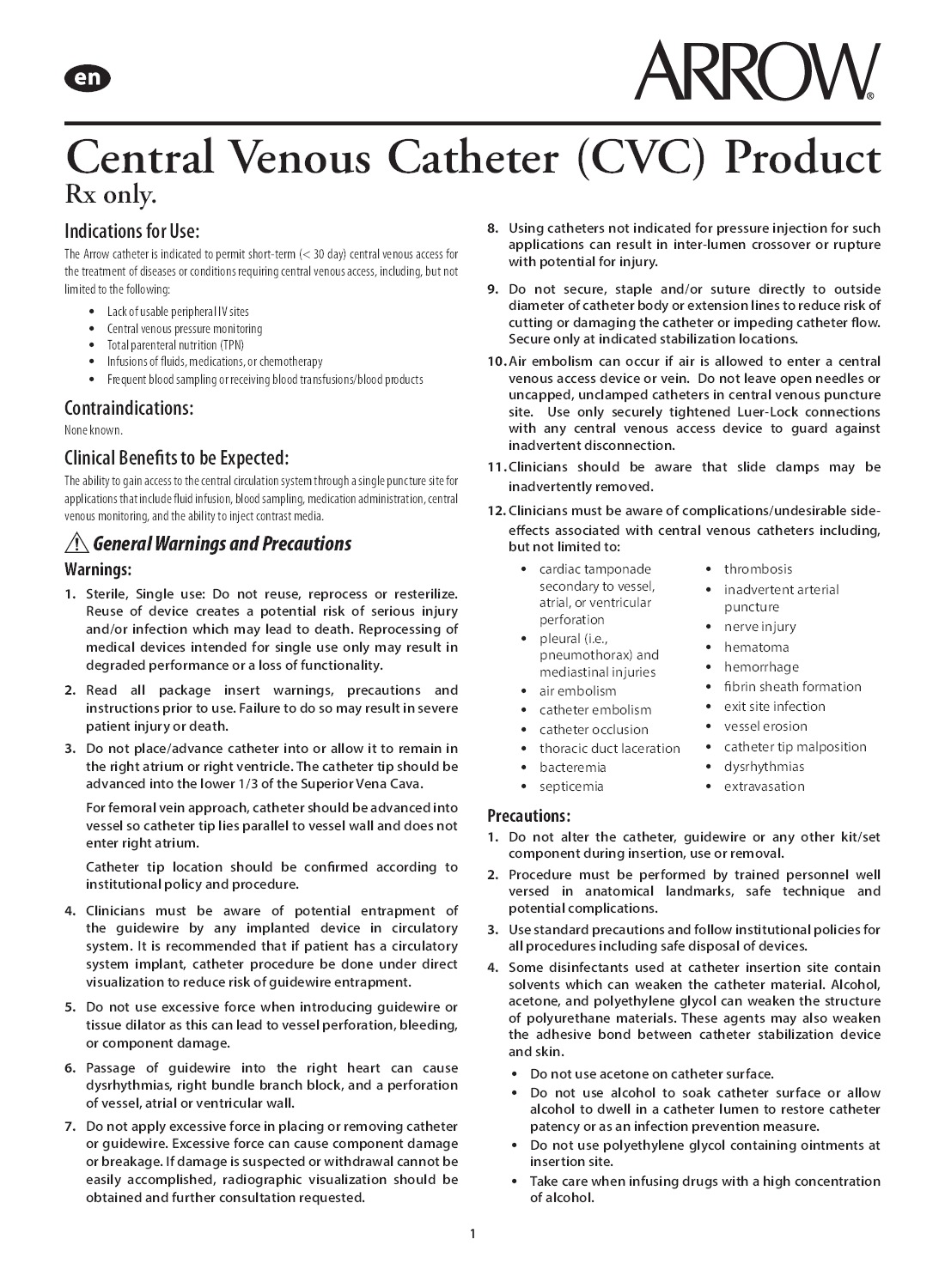

  • S 15703 111b

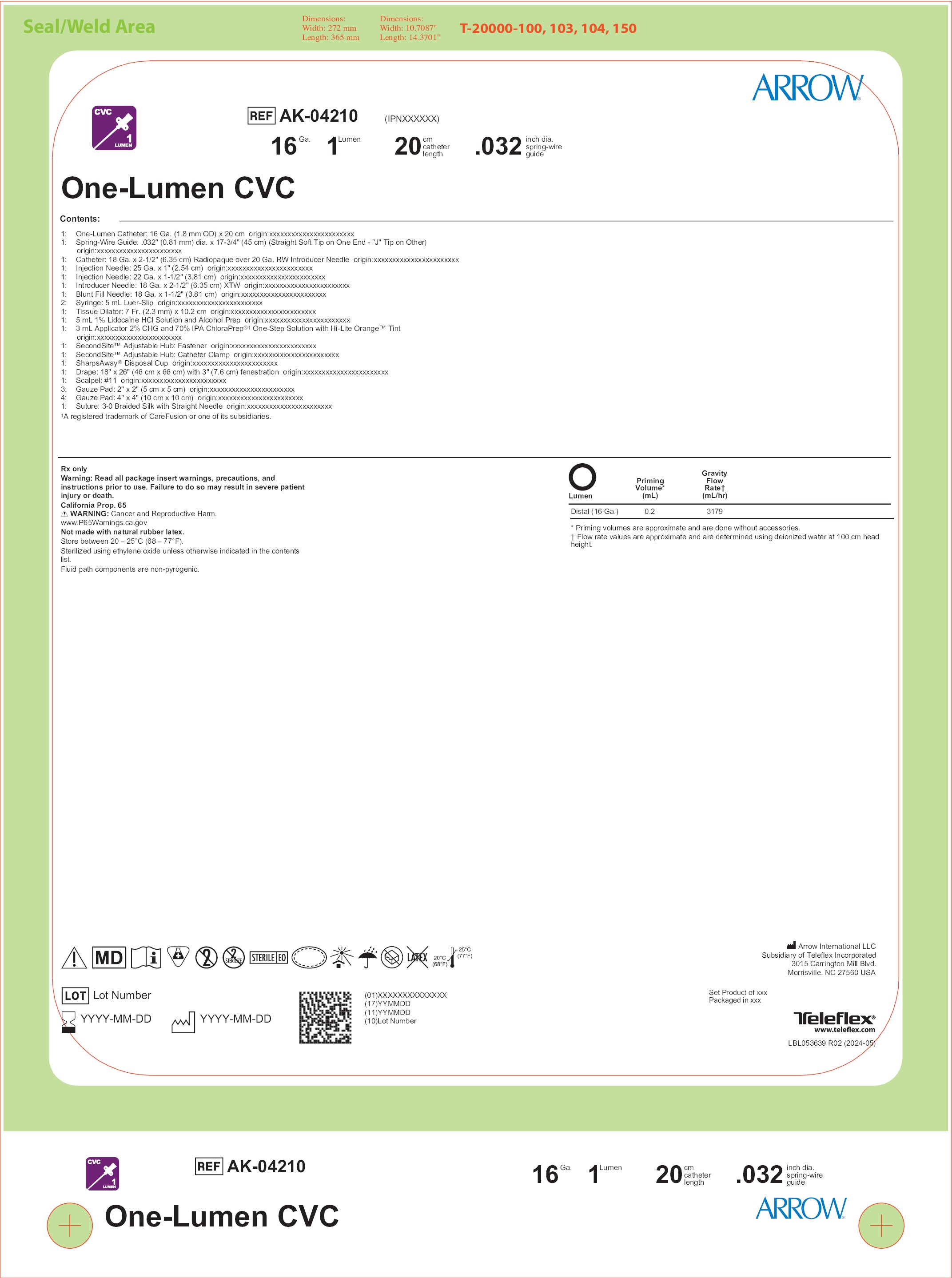

  • Lbl053639
Scroll to View More
  • K 07800 121
  • S 15703 111b
Scroll to View More
  • Lbl053639
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
