AK-09807-AG

Representative photo(s): actual product specifications may vary from that shown in the photo

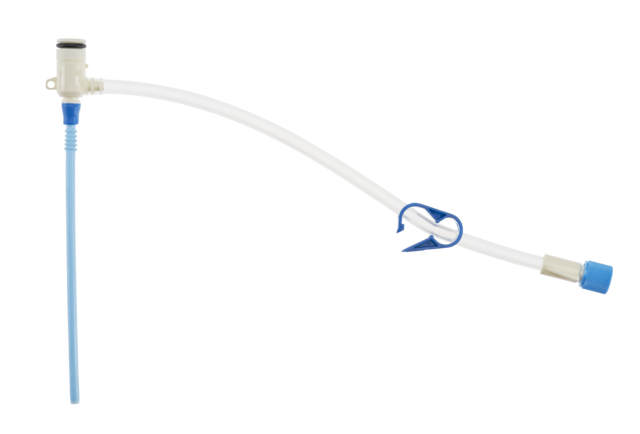

Arrowg+ard Blue® PSI for use with 7 - 7.5 Fr. Catheters

PSI KIT: 8.5 FR

SKU / Article #: AK-09807-AG

Highlights

  • Antimicrobial: Arrowg+ard Blue*

Contraindications & Considerations

  • *Chlorhexidine
  • Not made with natural rubber latex.
  • Includes Lidocaine

Sales Quantity/Case: 10

Arrowg+ard Blue® PSI for use with 7 - 7.5 Fr. Catheters
SKU / Article #: AK-09807-AG
Quantity Component Description
1 Single-Lumen Infusion Catheter, SLIC®: 7 Fr. x 16 cm
1 Arrowg+ard Blue® Arrow-Flex® Sheath: 8.5 Fr. (2.8 mm tip ID) x 10 cm and Tissue Dilator
1 Spring-Wire Guide, Marked: .025" (0.64 mm) dia. x 17-3/4" (45 cm) (Straight Soft Tip on One End - "J" Tip on Other) with Arrow Advancer
1 Catheter: 20 Ga. x 1-3/4" (4.45 cm) Radiopaque over 22 Ga. TW Introducer Needle
1 Injection Needle: 25 Ga. x 1" (2.54 cm)
1 Introducer Needle: 18 Ga. x 2-1/2" (6.35 cm) RW
1 Blunt Fill Needle: 18 Ga. x 1-1/2" (3.81 cm)
1 Pressure Transduction Probe
1 Introducer Needle: 20 Ga. x 1-1/2" (3.81 cm) XTW and 5 mL Arrow® Raulerson Spring-Wire Introduction Syringe
1 Injection Needle: 22 Ga. x 1-1/2" (3.81 cm) and 5 mL Luer-Slip Syringe
1 Syringe: 3 mL Luer-Lock
1 5 mL 1% Lidocaine HCl Solution and Alcohol Prep
1 3 mL Applicator 2% CHG and 70% IPA ChloraPrep®1 One-Step Solution with Hi-Lite Orange Tint
1 Obturator: 8 Fr.
1 Cath-Gard® Catheter Contamination Shield: 80 cm with TwistLock Adapter
1 Dust Cap: Non-Vented
1 SharpsAway® Disposal Cup
1 Drape: 24" x 36" (61 cm x 91 cm)
1 Drape: 24" x 40" (61 cm x 102 cm) with 2-5/8" (6.7 cm) fenestration, with adhesive
1 Scalpel: #11
1 Stopcock: 4-way High-Flow
2 Gauze Pad: 2" x 2" (5 cm x 5 cm)
5 Gauze Pad: 4" x 4" (10 cm x 10 cm)
1 Suture: 3-0 Braided Silk with Straight Needle
1 A registered trademark of CareFusion or one of its subsidiaries.

Documents

  • K 07800 121
  • K 29803 103a
  • S 14701 134a
Scroll to View More
  • K 07800 121
  • K 29803 103a
  • S 14701 134a
Scroll to View More
The products in this catalog may not be available in all countries. Please contact your local representative.
Indications, contraindications, warnings and instructions for use can be found in the Product Instructions for Use available under the Documents section on this page, where an IFU is available.
